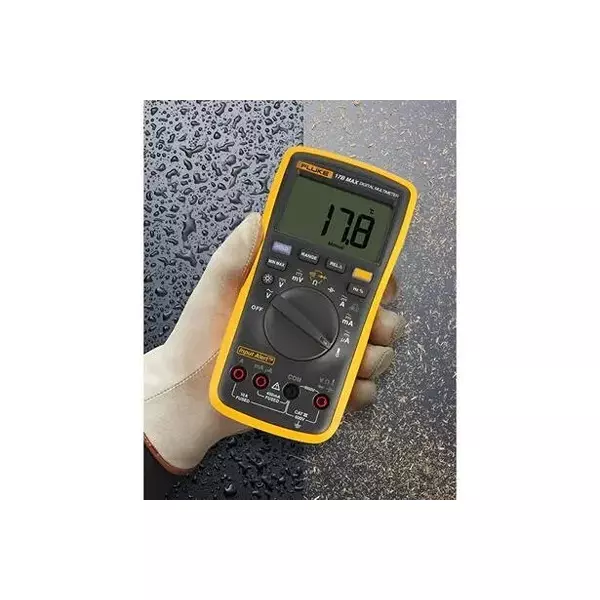

| Type of Product | Digital Multimeter |
| Model No | 17B MAX |
| Safety | IEC 61010-1, IEC61010-2-030: CAT III 600 V, Pollution Degree 2 |
| Country of Origin | India |
Type of Product |
Digital Multimeter |
Model No |
17B MAX |
Safety |
IEC 61010-1, IEC61010-2-030: CAT III 600 V, Pollution Degree 2 |
Country of Origin |
India |
Temperature coefficient |
0.1 X (specified accuracy) /°C (<18 °C or >28 °C) |
Display Type |
6000 counts, updates 3/sec |
Battery Life |
500 Hours Minimum |
IP Rating |
IP40 |
Operating Temperature |
0 °C to 40 °C |
Frequency |
50.00 Hz, 500.0 Hz, 5.000 kHz, 50.00 kHz, 100.0 kHz |
Storage Temperature |
-30 °C to 60 °C |
Resistance |
400.0 Ω, 4.000 kΩ, 40.00 kΩ, 400.0 kΩ, 4.000 MΩ, 40.00 MΩ |
Weight |
455 g |
Duty Cycle |
1% to 99% |
DC Current |
400.0 μA, 4000 μA, 40.00 mA, 400.0 mA, 4.000 A, 10.00 A |
AC Current Range |
400.0 μA, 4000 μA, 40.00 mA, 400.0 mA, 4.000 A, 10.00 A, |
Resolution |
0.001 V, 0.01 V, 0.1 V, 1 V |
Accuracy |
1.0 % + 3 |
Voltage (AC) |
6.000 V, 60.00 V, 600.0 V, 1000 V |
Capacitance |
40.00 nF, 400.0 nF, 4.000 μF, 40.00 μF, 400.0 μF, 2000 μF |
Altitude |
Operating 2000 m, Storage 12000 m |
Relative Humidity |
≤90 % RH at 10 °C to 30 °C, ≤75 % RH at 30 °C to 40 °C |
Temperature |
50.0 °C to 400.0 °C, 0 °C to 50.0 °C, -55.0 °C to 0 °C |
Battery Type |
2 AA, IEC LR6 |
Diode Test |
2.000 V |
Package Contains |
1 x Digital Multimeter, 2 x Test Probes, 1 x Manual |
Dimension |
183 mm x 91 mm x 49.5 mm |
Voltage (Dc) |
6.000 V, 60.00 V, 600.0 V, 1000 V |
Name of Manufacturer/Packer/Importer |
FLUKE INDIA |
Warranty Duration |
1 Year |
Environment |
IEC 61326-1: Portable |
