| Type | Basic Type |

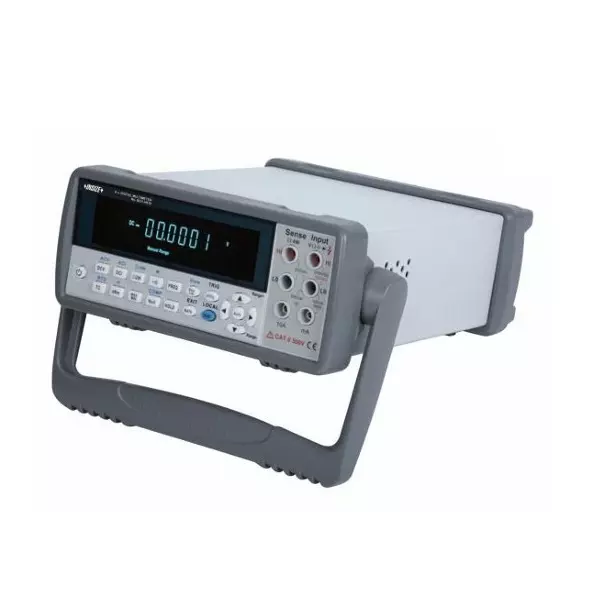

| Type of Product | Digital Multimeter |
| Model No | 9231-H610 |
| Voltage | 220 V ± 10% |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Basic Type |
Type of Product |
Digital Multimeter |
Model No |
9231-H610 |
Voltage |
220 V ± 10% |
Country of Origin |
India |
Frequency |
50/60 Hz |
Resistance |
100 Ω / 1 kΩ / 10 kΩ / 100 kΩ / 1 MΩ / 10 MΩ / 100 MΩ |
Weight |
4.1 Kg |
Interface |
USB / RS232 communication interface |
DC Current |
10 mA / 100 mA / 1 A / 10 A |
Resolution |
6.5 Digits |
Voltage (AC) |
100 mV / 1 V / 10 V / 100 V / 750 V |
Capacitance |
10 nF / 100 nF / 1 μF / 10 μF / 100 μF / 1000 μF / 10 mF |
Frequency Response |
100 kHz |
Memory |
10000 Set of Data |
AC Current (A) |
10 mA / 100 mA / 1 A / 10 A |
Continuity Check |
Range: 100 Ω, Threshold: 20 Ω |
Diode Test |
0– 5 V |
Package Contains |
1 x Main Unit, 2 x Test Lead, 2 x Test Clip, 1 x RS232 Cable, 1 x USB Cable |
Dimension |
310x255x109 mm |
Voltage (Dc) |
100 mV / 1 V / 10 V / 100 V / 1000 V |
Alarm |
Upper and Lower Limit Alarm |
Name of Manufacturer/Packer/Importer |
Insize |
Storage Environment |
-25°C – 60°C, humidity <90% (non-condensing) |
Operating Environment |
0°C – 40°C, humidity <80% |
Time |
Minimum Integral Time: 0.125 PLC |
