| Type of Product | Digitometer |
| Model No | DM-700 |
| Country of Origin | Japan |
| Material | ABS |
Type of Product |
Digitometer |
Model No |
DM-700 |
Country of Origin |
Japan |
Material |
ABS |
Measurement Range |

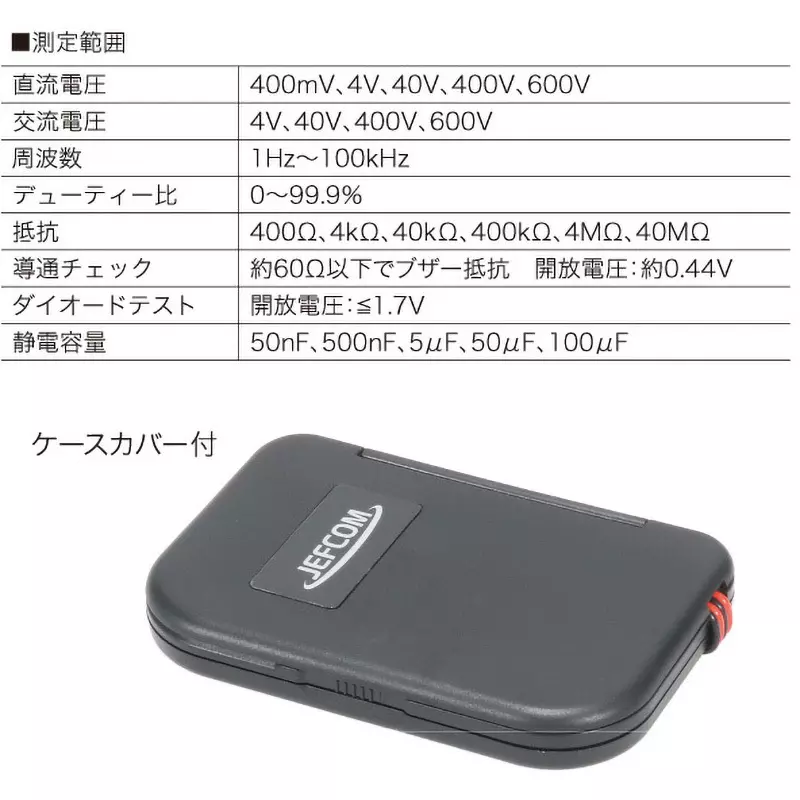

Resistance: 400 Ω, 4 kΩ, 40 kΩ, 400 kΩ, 4 MΩ, 40 MΩ, Frequency: 1 Hz to 100 kHz, Duty ratio: 0 to 99.9%, Continuity check: Buzzer resistance at approx. 60 Ω or less, open voltage approx. 1.7V, Capacitance: 50nF, 500nF, 5μF, 50μF, 100μF |
Included Components |
Battery (built-in / for operation check), case cover, instruction manual |
Monotaro ID |
44870107 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Jefcom Co., Ltd. |
Specifications |
Display panel (LCD): 4000 counts, character height 14mm, range switching: auto/manual range (automatic/manual), sampling rate: 3 times/second, polarity display: automatic (only "-" indicator lights), overrange display : OL lights up (excluding DC/AC 600V), battery consumption display: BAT sign lights up at about 2.4V or less |
Mass (g) |
110 |
Power Consumption (mW) |
4.5 |
