Kyoritsu Insulation Resistance Meter [Voltmeter] AC 0-600 V (45-65 Hz) / DC 0-600 V Measurement Range, KEW3441BT

Name: Kyoritsu Insulation Resistance Meter [Voltmeter] AC 0-600 V (45-65 Hz) / DC 0-600 V Measurement Range, KEW3441BT
Brand: Kyoritsu
SKU: TES.DIG.246074096
Price: 49559 INR
Availability: InStock

Visit the Kyoritsu Store

EMI starts at ₹4403/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Type of Product	Insulation Resistance Meter
Model No	KEW3441BT
Country of Origin	Japan

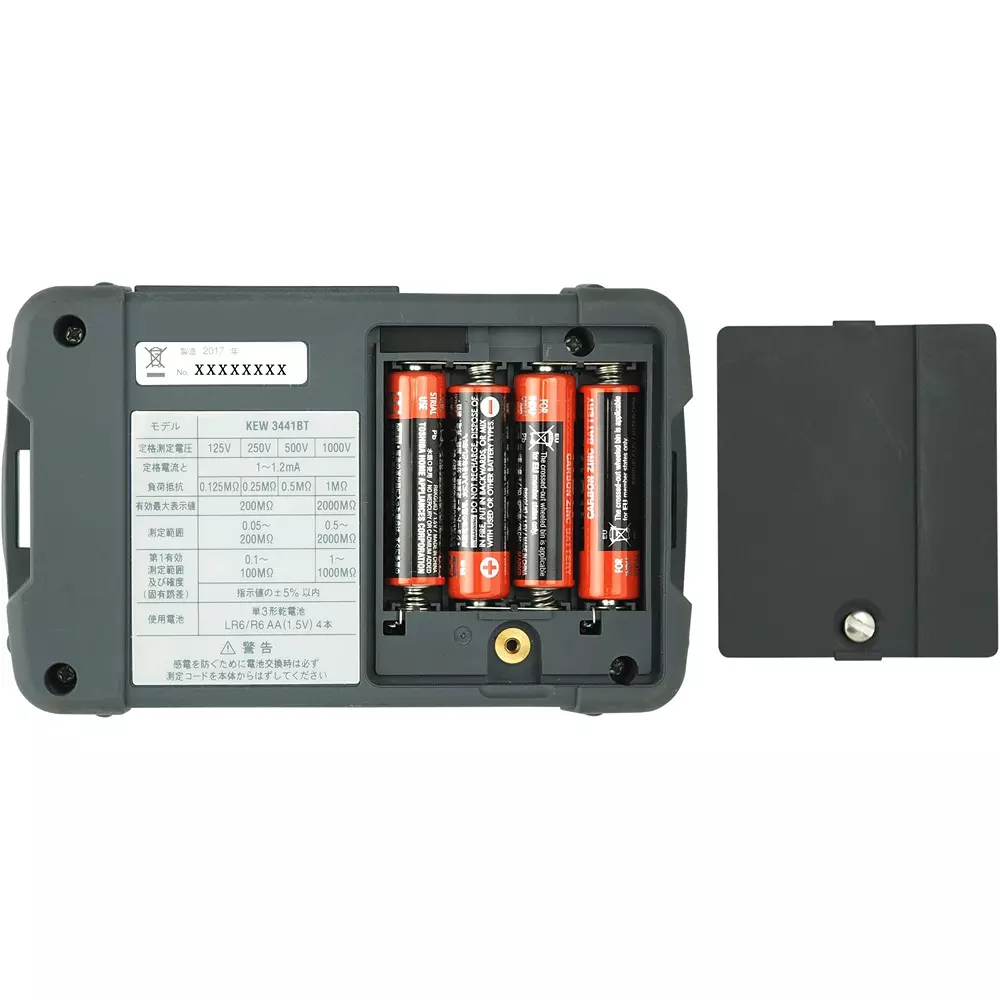

Power Supply	AA batteries LR6 / R6 (1.5V) x 4

More Kyoritsu Digital Multimeters products More Digital Multimeters products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Type of Product	Insulation Resistance Meter
Model No	KEW3441BT
Country of Origin	Japan
Power Supply	AA batteries LR6 / R6 (1.5V) x 4

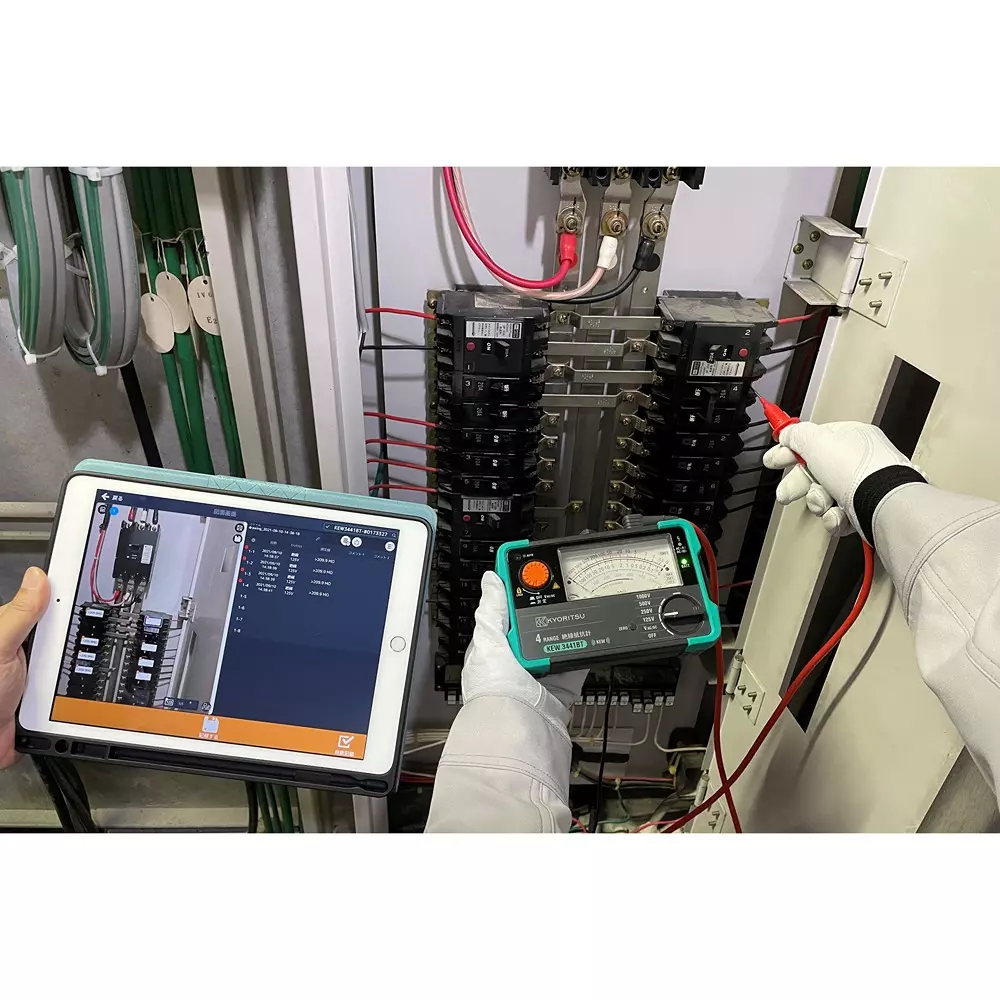

Interface	Bluetooth4.0 LE (Bluetooth SMART) installed Android 5.0 or higher, iOS 10.0 or higher
Measurement Voltage (V)	125/250/500/1000
Accuracy	Within ± 10% of the indicated value (standard temperature), [0 and ∞ scale] 0.7% or less of the scale length, [Voltmeter] ± 5% of the maximum scale value
Measurement Range	[Voltmeter] AC 0-600V (45-65Hz) / DC 0-600V
Applicable Standard	JIS C 1302: 2014 compliant, JIS C 1010-1 CAT Ⅳ 300V CAT Ⅲ 600V Protection class: IP40
Voltage (Dc)	0 to 600 V
AC Voltage (Volts)	0 to 600(45 to 65Hz)

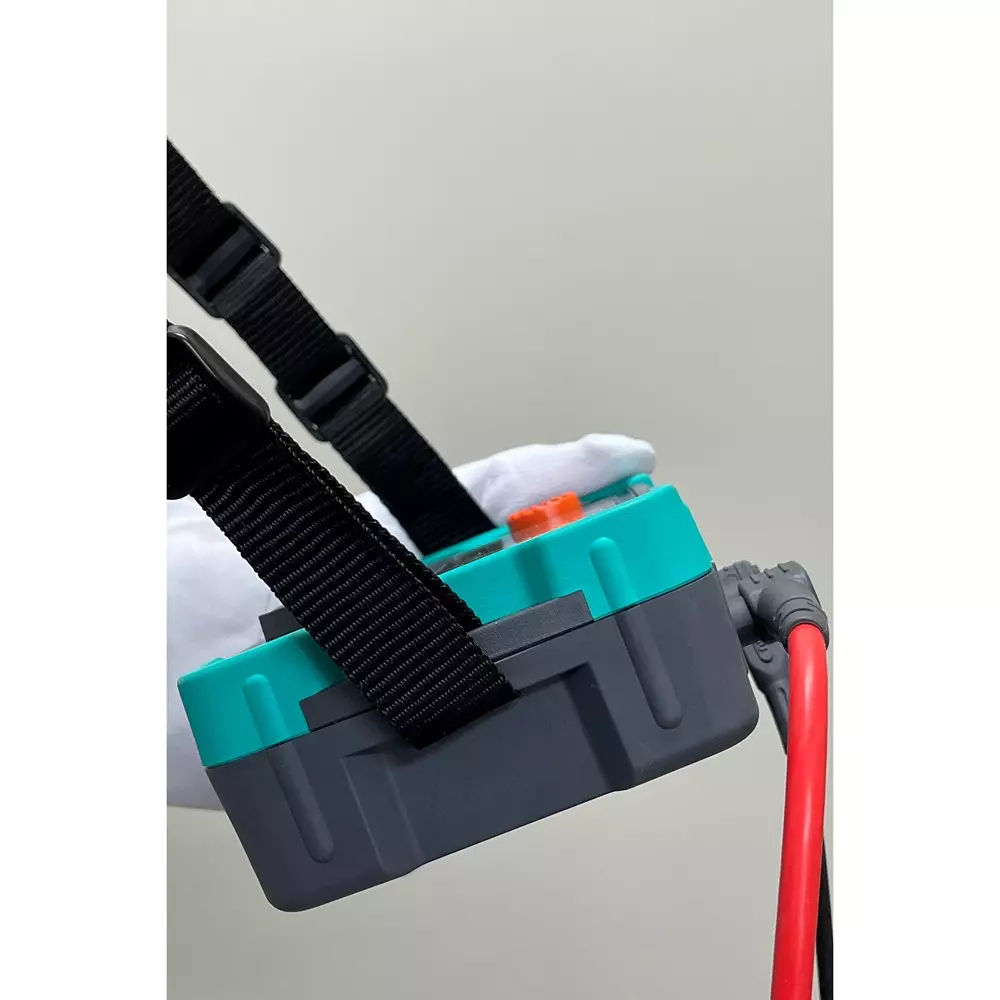

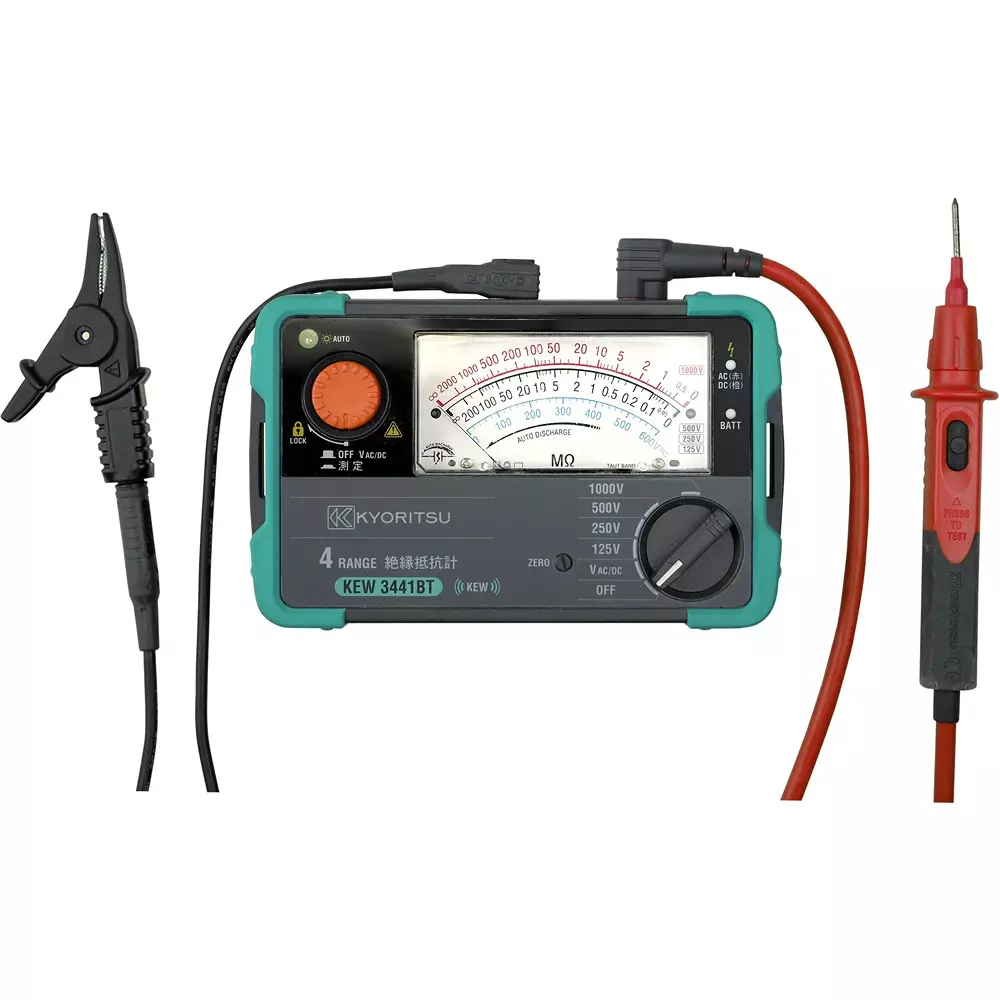

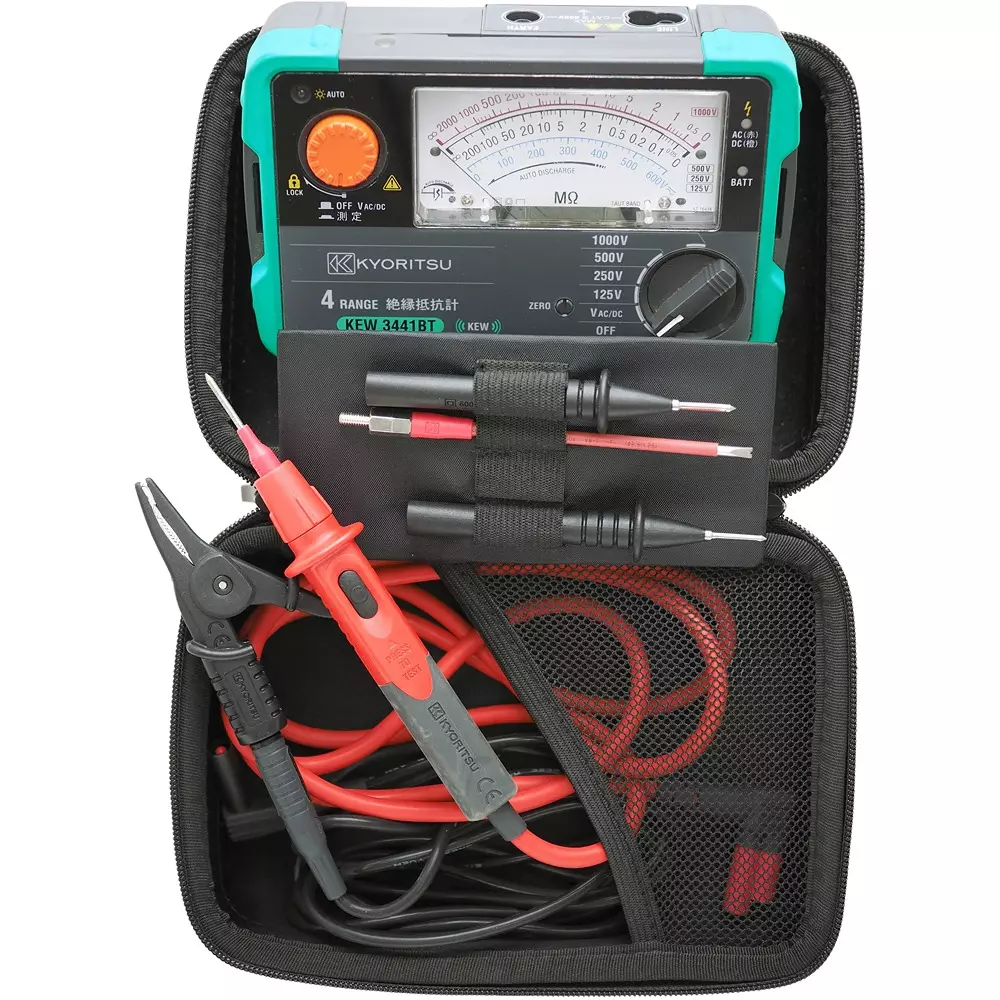

Included Components	7260 (Measuring probe with remote switch), 7261 (Waniguchi cord set), 9173 (Portable case), 8017A (Tip metal fittings / long), 9121 (Shoulder belt), AA battery LR6 x 4 Instruction manual
Monotaro ID	73808087
Import Country	Direct Import from Japan
Name of Manufacturer/Packer/Importer	Kyoritsu Electrical Instruments Co., Ltd.
Height (mm)	97
Length (mm)	46
Width (mm)	156
Mass (g)	Approx. 430 (including batteries)
RoHS Directive	Correspondence
Dimension (WxDxH)	156x97x46 mm
Rated Current (mA)	When a test resistor with a rated measurement voltage x 1000Ω is connected, 1.0 to 1.2mA
Short Circuit Current	1.5 mA or less
Effective Measuring Range	[1st] 0.1 to 100MΩ (125/250 / 500V) 1 to 1000MΩ (1000V), [2nd] 0.05 to 0.1MΩ / 100 to 200MΩ (125/250 / 500V) 0.5 to 1MΩ / 1000 to 2000MΩ (1000V)
Effective maximum display value	200MΩ (125V / 250V / 500V) 2000MΩ (1000V), [Center display value] 5MΩ (125V / 250V / 500V) 50MΩ (1000V)
Circuit Voltage	1.2 times or less of the rated measured voltage value
