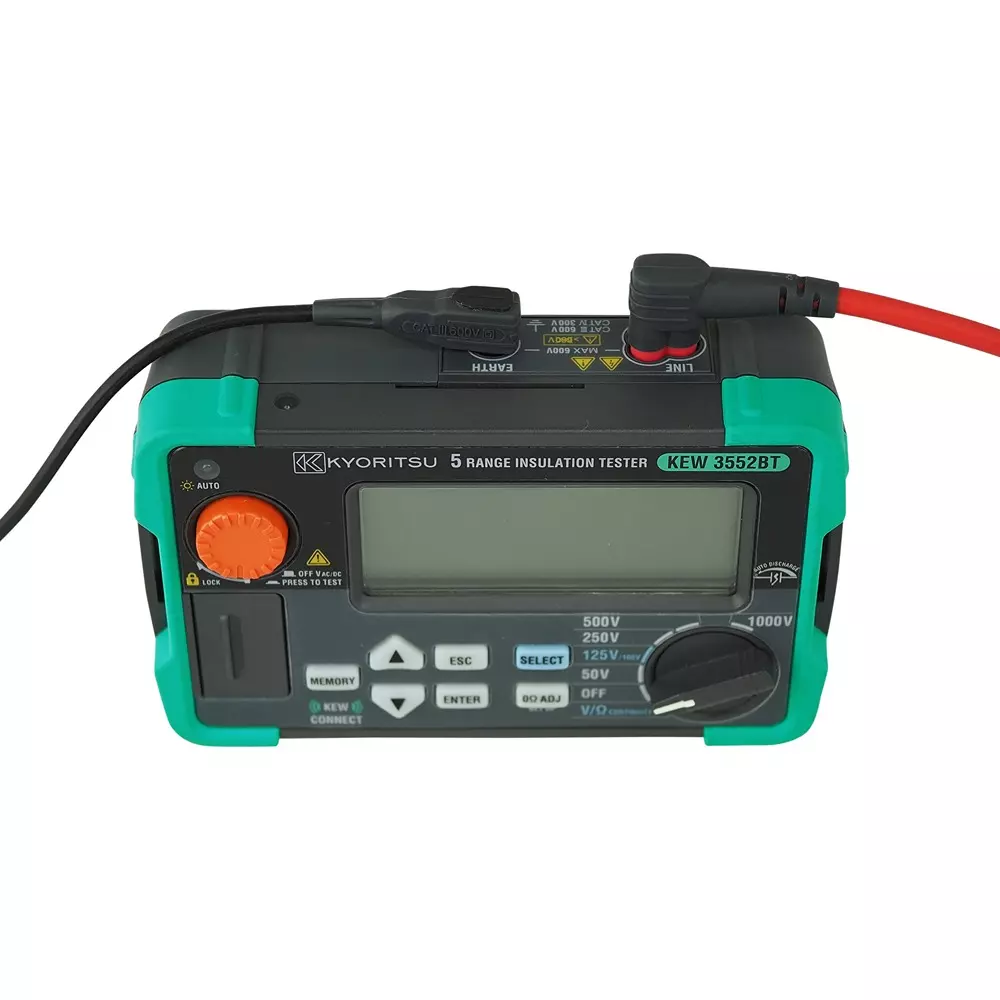

Kyoritsu Insulation Resistance Meter AA batteries LR6 / R6 (1.5 V) x 4 Power Supply Insulation resistance, KEW3552BT

Name: Kyoritsu Insulation Resistance Meter AA batteries LR6 / R6 (1.5 V) x 4 Power Supply Insulation resistance, KEW3552BT
Brand: Kyoritsu
SKU: TES.DIG.546074113
Price: 51919 INR
Availability: InStock

Visit the Kyoritsu Store

EMI starts at ₹4613/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Type of Product	Insulation Resistance Meter
Model No	KEW3552BT
Country of Origin	Japan

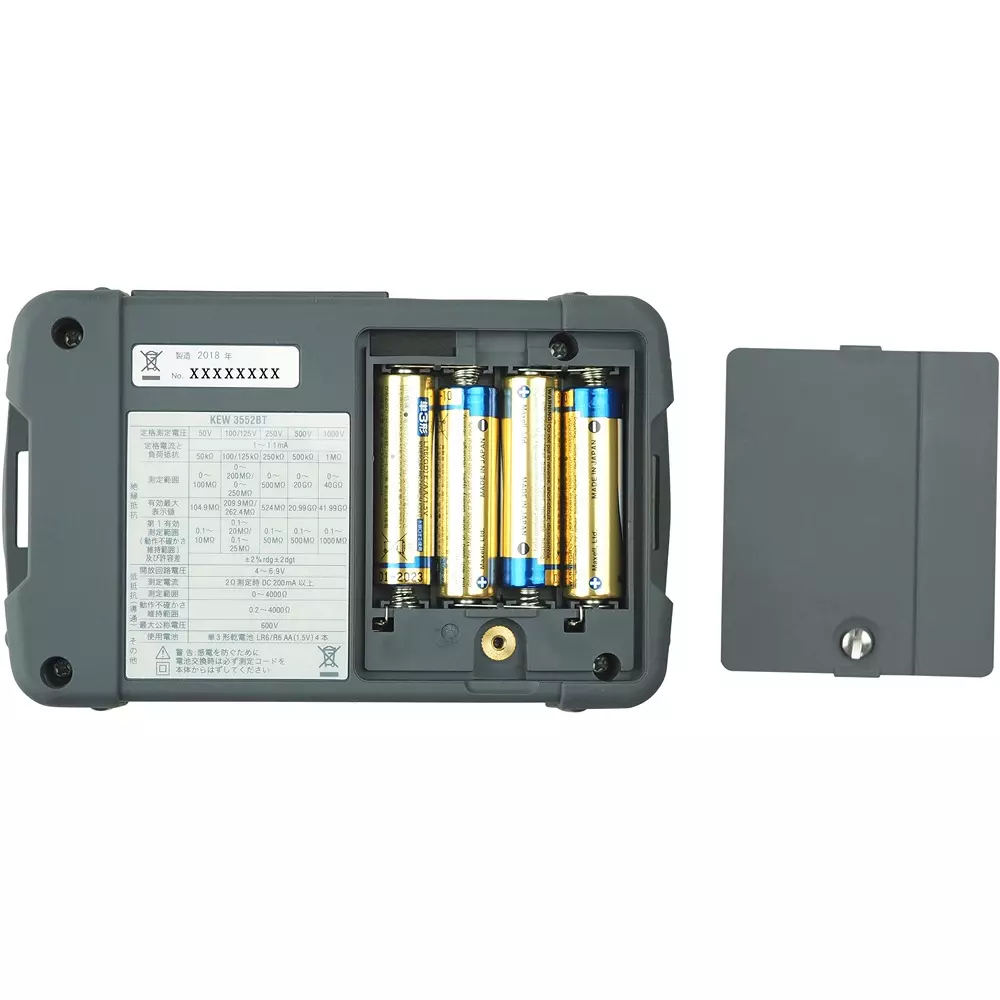

Power Supply	AA batteries LR6 / R6 (1.5V) x 4

More Kyoritsu Digital Multimeters products More Digital Multimeters products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Type of Product	Insulation Resistance Meter
Model No	KEW3552BT
Country of Origin	Japan
Power Supply	AA batteries LR6 / R6 (1.5V) x 4

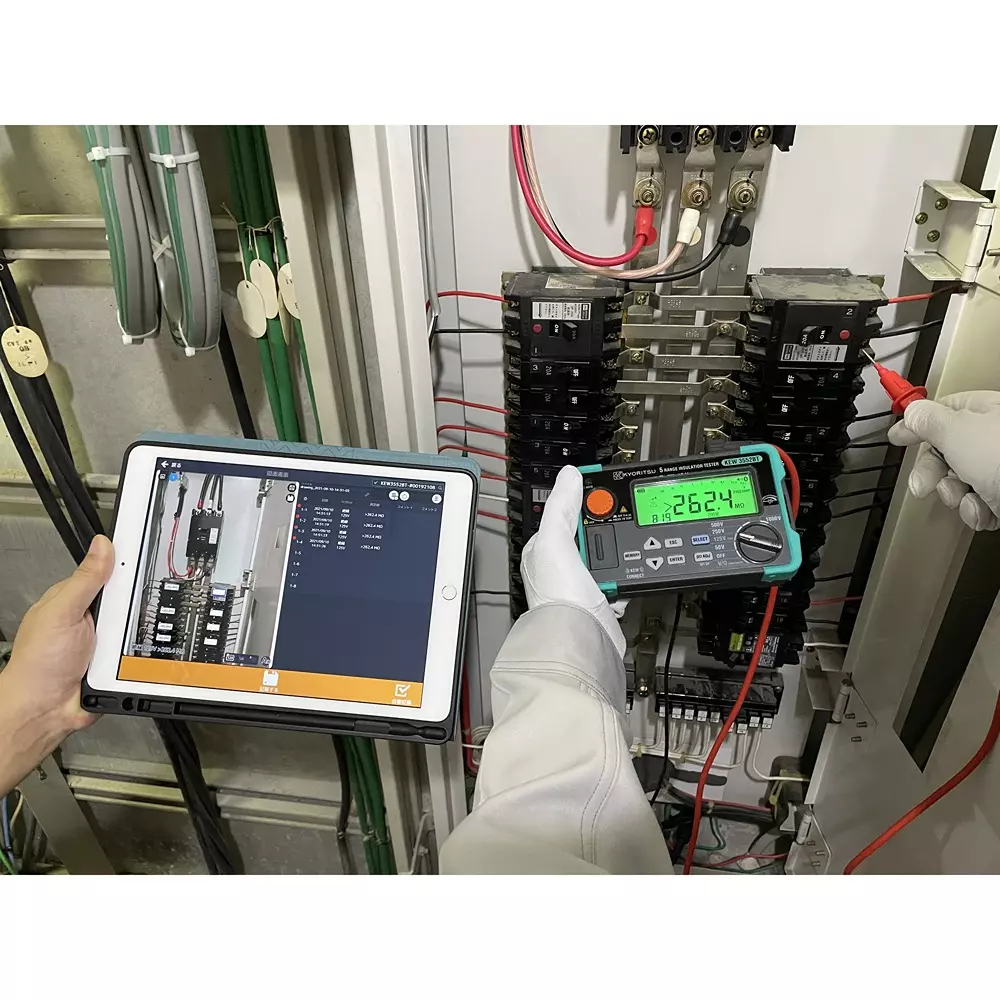

Bluetooth	4.0LE
Interface	USB, Bluetooth(R)Ver.4.0
Measurement Voltage (V)	50/100/125/250/500/1000
Accuracy	Insulation resistance meter: [1st] ±2%rdg±2dgt, [2nd] ±5%rdg (0.05 to 0.099MΩ: ±2%rdg±4dgt), low resistance meter: ±2.5%rdg±8dgt, voltmeter: ±1%rdg±4dgt
Protection Class	IP40
Applicable Standard	JIS C 1302:2018 compliant (3551), JIS C 1302:2018 certified (3552/3552BT), IEC 61010-1 CAT III 600V/CAT IV 300V IEC 61557-1, 2, 4, IEC 61326-1, 2-2
Voltage (Dc)	±2 to ±600 V
AC Voltage (Volts)	2 to 600(45 to 65Hz)

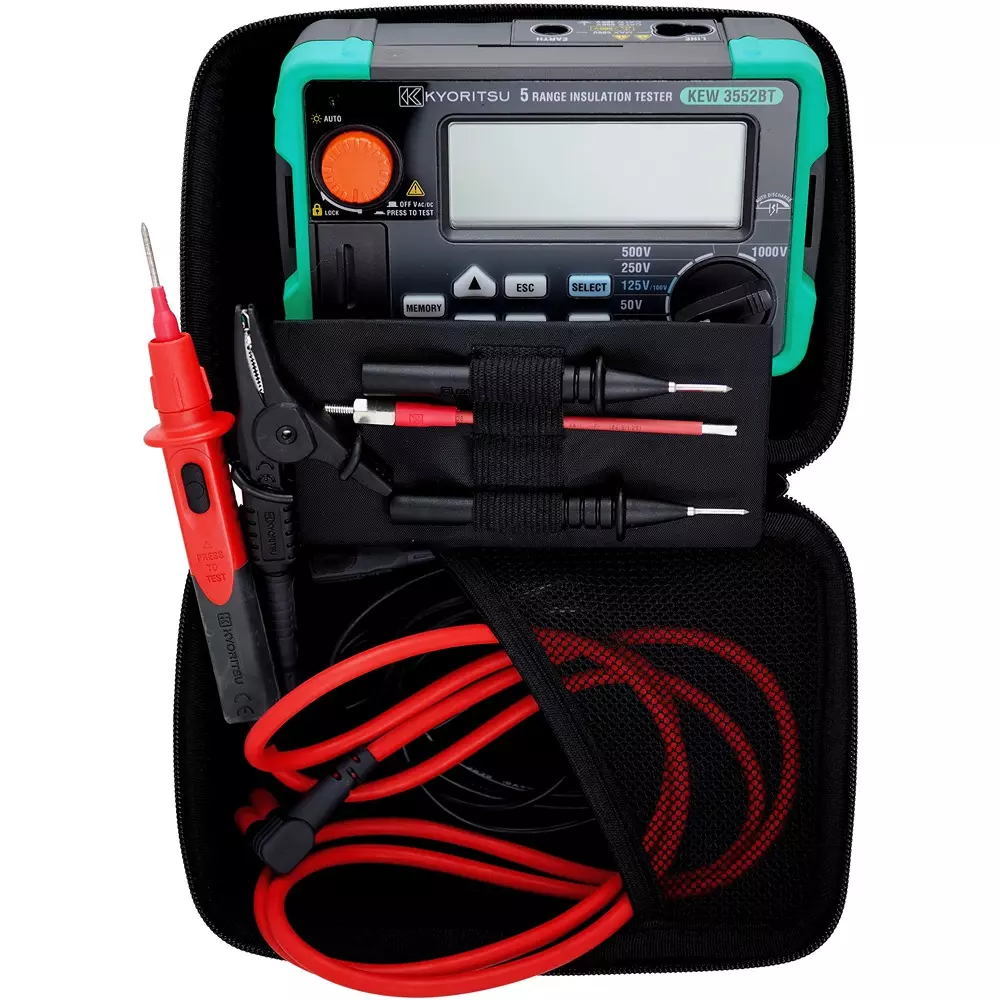

Included Components	7260 (Measuring probe with remote switch), 7261A (Waniguchi cord set), 8017A (Long tip metal fittings), 9173 (Portable case), 9121 (Shoulder belt), AA batteries LR6 x 4, Instruction manual
Monotaro ID	26546574
Import Country	Direct Import from Japan
Name of Manufacturer/Packer/Importer	Kyoritsu Electrical Instruments Co., Ltd.
Length (mm)	46
Specifications	Center display value: 2/5/10/100/200MΩ, auto range: 40/400/4000Ω, open circuit voltage: 5V (4 to 6.9V)
Mass (g)	Approximately 490 (including batteries)
RoHS Directive	Correspondence
Suitable Battery	AA batteries LR6 / R6 (1.5V) x 4
Dimension (WxDxH)	156x97x46 mm
Dimensions, Length L x Width W x Depth D (mm)	97x156x46
Rated Current (mA)	1 to 1.1
Short Circuit Current	(Insulation resistance tester) 1.5 mA or less, (Low resistance meter) 200 mA or more
Effective Measuring Range	[1st] 0.1-10MΩ (50V), 0.1-20MΩ (100V), 0.1-25MΩ (125V), 0.1-50MΩ (250V), 0.1-500MΩ (500V), 0.1-1000MΩ (1000V), [2nd] 0.05-0.099M Ω(50V), 10.01 to 100MΩ(50V), 20.01 to 200MΩ(100V), 25.01 to 250MΩ(125V), 50.1 to 500MΩ(250V), 501 to 2000MΩ(500V), 1001 to 4000MΩ(1000V)
Effective maximum display value	4/40/100MΩ, 4/40/200MΩ, 4/40/250MΩ, 4/40/400/500MΩ, 4/40/400/2000MΩ/20GΩ, 4/40/400/4000MΩ/40GΩ
Supported OS	Android (TM) 5.0 or above, iOS 10.0 or above
