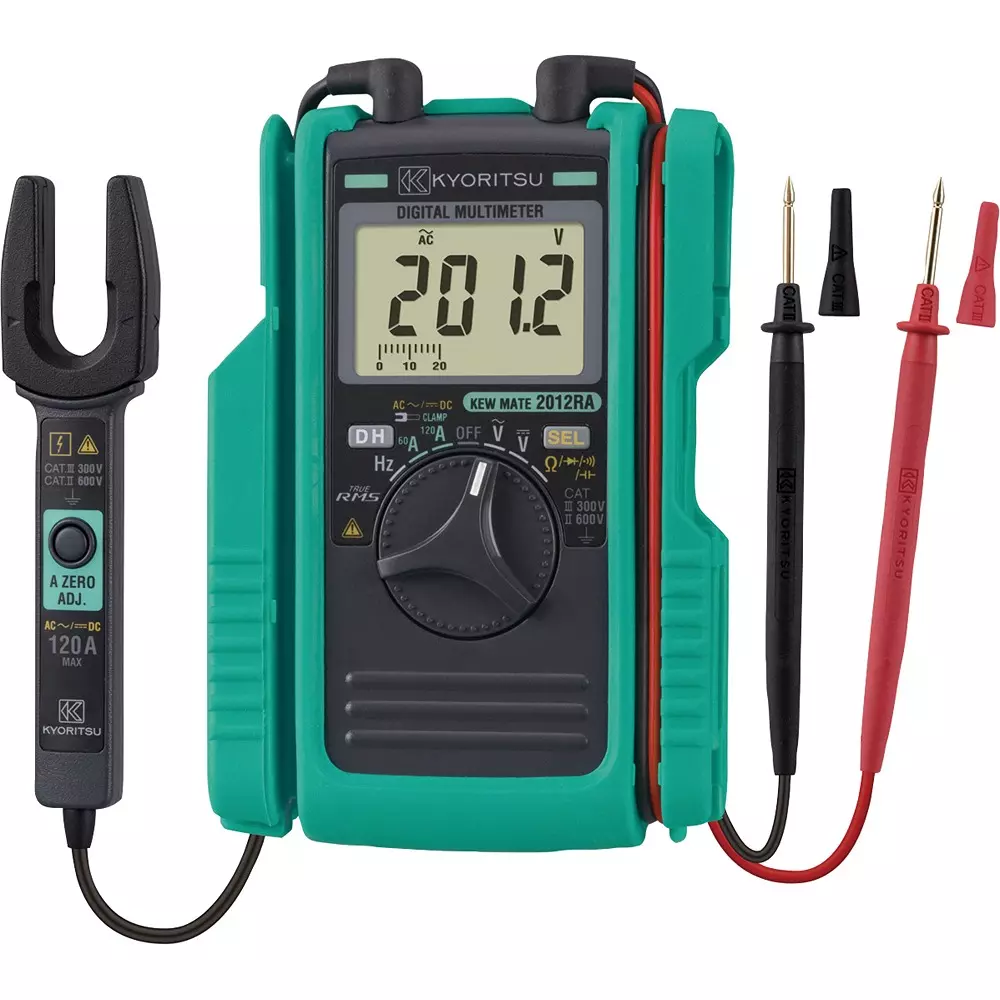

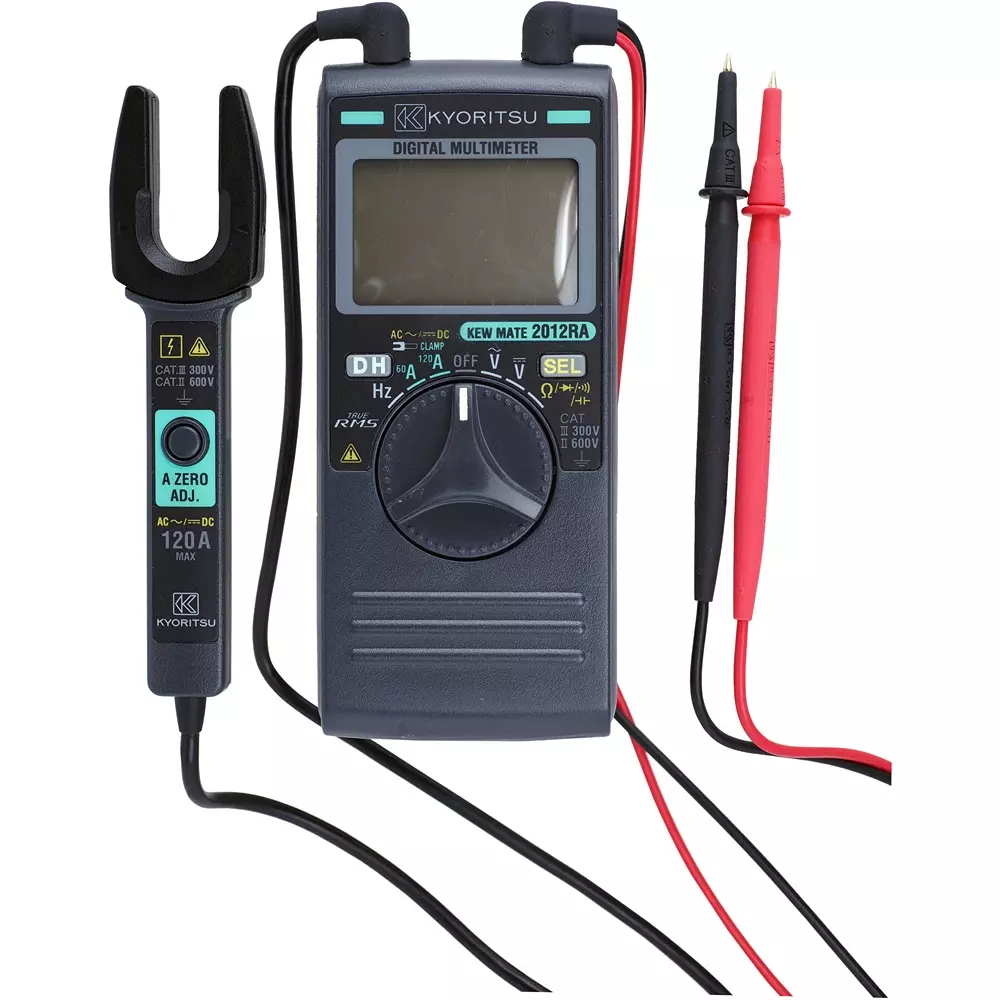

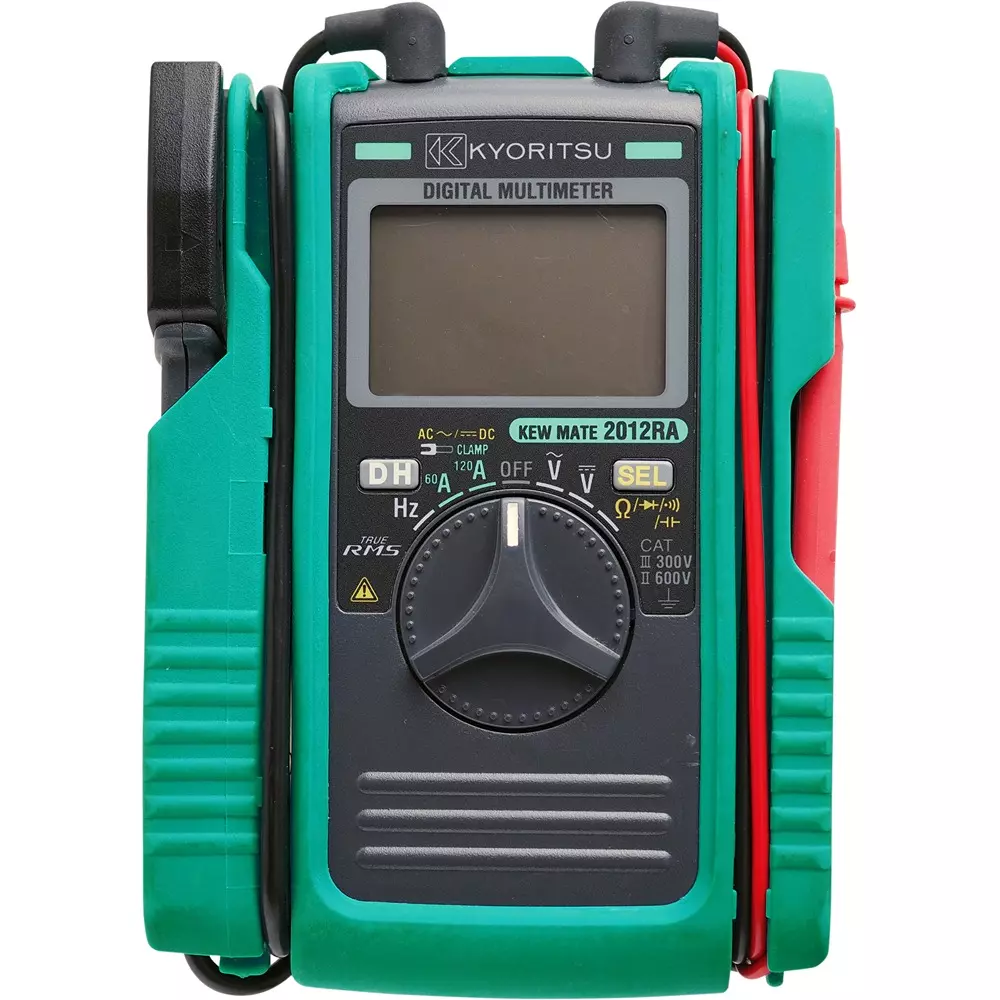

Kyoritsu Digital Multimeter AAA battery R03 (1.5 V) x 2 Power Supply, KEWMATE2012RA

Name: Kyoritsu Digital Multimeter AAA battery R03 (1.5 V) x 2 Power Supply, KEWMATE2012RA
Brand: Kyoritsu
SKU: TES.DIG.946022918
Price: 20059 INR
Availability: InStock

Visit the Kyoritsu Store

EMI starts at ₹1782/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Type of Product	Digital Multimeter
Model No	KEWMATE2012RA
Country of Origin	Japan
Continuous Operating Time (hrs)	DCV: Approx. 150, ACA: Approx. 25 (Auto power save approx. 15 minutes)

More Kyoritsu Digital Multimeters products More Digital Multimeters products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Type of Product	Digital Multimeter
Model No	KEWMATE2012RA
Country of Origin	Japan
Continuous Operating Time (hrs)	DCV: Approx. 150, ACA: Approx. 25 (Auto power save approx. 15 minutes)

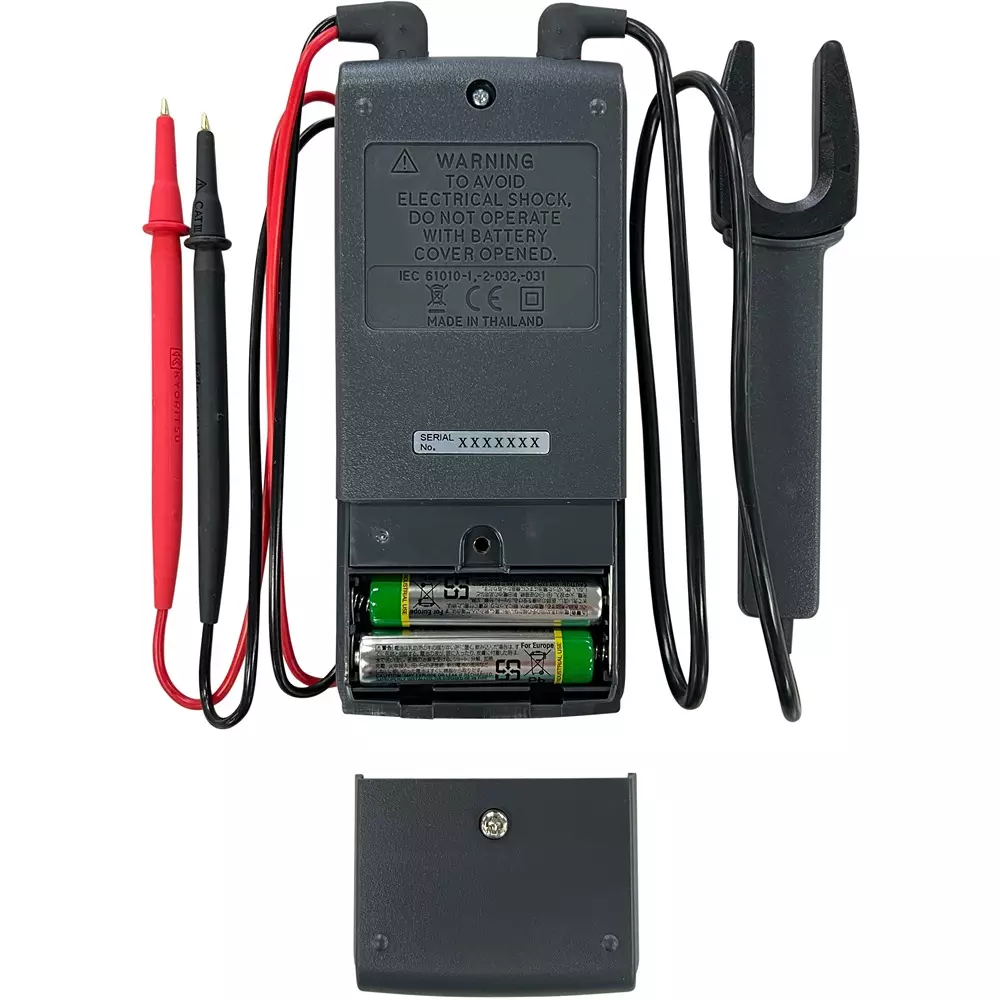

Power Supply	AAA battery R03 (1.5V) x 2
Capacitance (F)	400n/4/40μ, ±2.5%rdg±10dgt
Resistance (Ω)	600/6/60/600k/60M, ±1%rdg±5dgt(600Ω/6/60/600kΩ), ±2%rdg±5dgt(6MΩ), ±3%rdg±5dgt(60MΩ)
AC Current Range	60.00/120.0A±2.0%rdg±5dgt (45 to 65Hz)
DC current (A)	60/120±2%rdg±8dgt(60)±2.0%rdg±5dgt(120)
AC Current (A)	60/120, ±2%rdg±5dgt(45 to 65Hz)
Diode Test	2V ±3%rdg±5dgt Open voltage: approx. 2.7V
Applicable Standard	IEC 61010-1 CAT III 300V/CAT II 600V Pollution Degree 2, IEC 61010-2-032, IEC 61326-1
Voltage (Dc)	600 mV/6 V/60 V/600 V, (Input impedance: 10MΩ), ±1%rdg±3dgt
Continuity	Buzzer sounds when 35 ± 25Ω or less Buzzer sounds when 35 ± 25Ω or less
AC Voltage (Volts)	6/60/600 (input impedance: approx. 10MΩ), ±1.5%rdg±5dgt (45-400Hz)
Included Components	AAA battery R03 (1.5V) x 2, instruction manual
Measurement Method	True RMS method
Monotaro ID	84410113
Import Country	Direct Import from Japan
Name of Manufacturer/Packer/Importer	Kyoritsu Electrical Instruments Co., Ltd.
Length (mm)	27
Specifications	Tip pin length: 18 mm
Mass (g)	Approx. 220 (including batteries)
RoHS Directive	Correspondence
Suitable Battery	AAA battery R03 (1.5V) x 2
Dimension (WxDxH)	92x128x27 mm
Dimensions, Length L x Width W x Depth D (mm)	128x92x27
Frequency (kHz)	Current: 100/400Hz ±0.2% rdg ±2 dgt (100Hz) / ±0.1% rdg ±1 dgt (400Hz), Voltage: 100/1000Hz/10/100/300 ±0.2% rdg ±2 dgt (100Hz) / ±0.1% rdg ±1 dgt (1000Hz/10/100/300) (Input sensitivity: Current: 6A or more, Voltage: 6V or more [to 10] / 20V or more [10k to 300])
Conductor Diameter for Measurement	Maximum Φ12 mm
