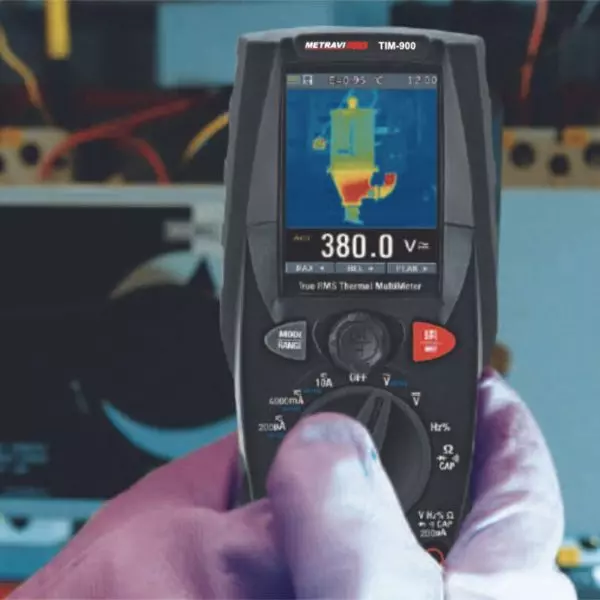

| Type of Product | Multimeter with Thermal Imager |
| Model No | PRO TIM-900 |
| Country of Origin | India |
| Temperature Range | -20°C to +260°C (-4°F to + 500°F) |
Type of Product |
Multimeter with Thermal Imager |
Model No |
PRO TIM-900 |
Country of Origin |
India |
Temperature Range |
-20°C to +260°C (-4°F to + 500°F) |
Accuracy |
±3°C (±5.4°F) or ±3% of reading (Environment temperature 10°C-35°C, object temperature >0°C. ) |
Function |
V DC or V AC |
Name of Manufacturer/Packer/Importer |
Rameshtha Enterprises |
Surge Protection |
6 kV peak per IEC 61010 |
Focal Length (Mm) |
7.5 mm |
Thermal Sensitivity |
< 0.1°C @ +30°C (+86°F) / 100 mK |
Spatial Resolution |
4.53 mrad |
Focus Mode |
Focus free |
Maximum Input |
600 V DC/AC RMS |
Image Frequency |
50 Hz |
Focal Plane Array Spectral Range |
Uncooled microbolometer / 8-14 mm |
Field of View |
21° x 21°/ 0.5 m |
Thermal Image Resolution |
80 x 80 Pixel |
