| Type | Analog insulation resistance tester |
| Type of Product | Insulation Resistance Meter |
| Model No | PDM509S |
| Features | Maintains measurement voltage down to low insulation resistance values (MΩ) at the rated current specified in JIS C1302. Includes an insulation resistance measurement switch that allows single and continuous measurements. Includes a DC voltage measurement range (DC60V). Discharge function. Inner battery check function that can measure the built-in battery capacity. AC voltage measurement function that can determine live line status. Includes a neck strap that allows you to use both hands when measuring. |
Type |
Analog insulation resistance tester |
Type of Product |
Insulation Resistance Meter |
Model No |
PDM509S |
Features |
Maintains measurement voltage down to low insulation resistance values (MΩ) at the rated current specified in JIS C1302. Includes an insulation resistance measurement switch that allows single and continuous measurements. Includes a DC voltage measurement range (DC60V). Discharge function. Inner battery check function that can measure the built-in battery capacity. AC voltage measurement function that can determine live line status. Includes a neck strap that allows you to use both hands when measuring. |
Country of Origin |
Japan |
Power Supply |
6LF22 / 6LR61 (9V alkaline battery) x 1 |
Insulation Resistance |
100m Ω |
Rated Voltage (V) |
500 |
Voltage (Dc) |
60 V (Tolerance: within ± 5% of maximum scale value) |
AC Voltage (Volts) |
600 (Tolerance: Within ± 5% of maximum scale value [Sine wave AC / 50-60Hz]) |
Included Components |

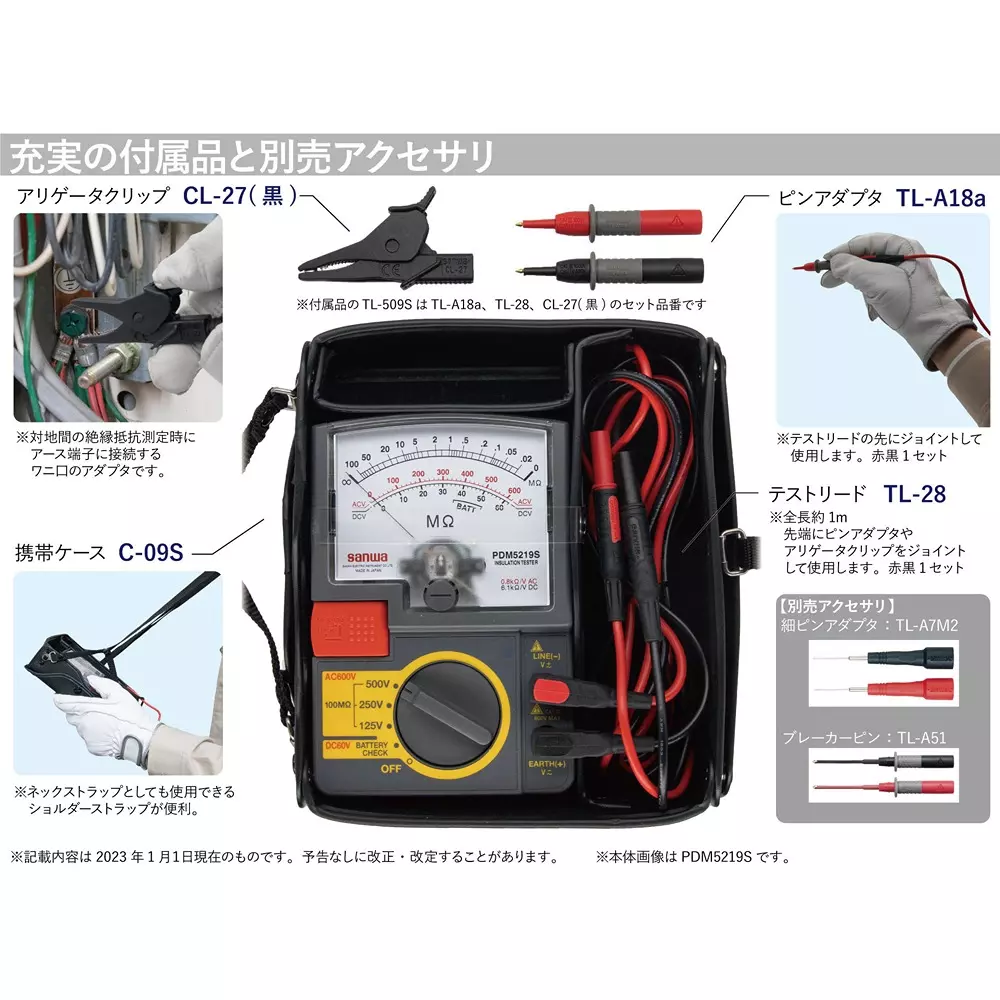

Test lead (TL-509S: total length about 1.2m), carrying case (C-09S), instruction manual |
Monotaro ID |
56295453 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Sanwa Electric Instrument Co., Ltd. |
Height (mm) |
144 |
Length (mm) |
43 |
Width (mm) |
99 |
Mass (g) |
About 310 |
RoHS Directive |
Correspondence |
Dimension (WxDxH) |
99x144x43 mm |
Safety Standard |
IEC61010CAT.Ⅲ600V |
Insulation Resistance (MOhm) |
0.05 to 0.1 to 50 to 100 mΩ |
Rated Current (mA) |
1 to 1.2 |
Dimensions (H x W x D) (mm) |
144x99x43 |
Temperature/Humidity Range for Storage |
23±5℃ 75% RH or less (no condensation) |
Operation Environment |
0 to 43°C, 80% RH or less (no condensation) |
