| Type | Digital Multimeters |
| Type of Product | Digital Multimeters |
| Model No | PC700 |

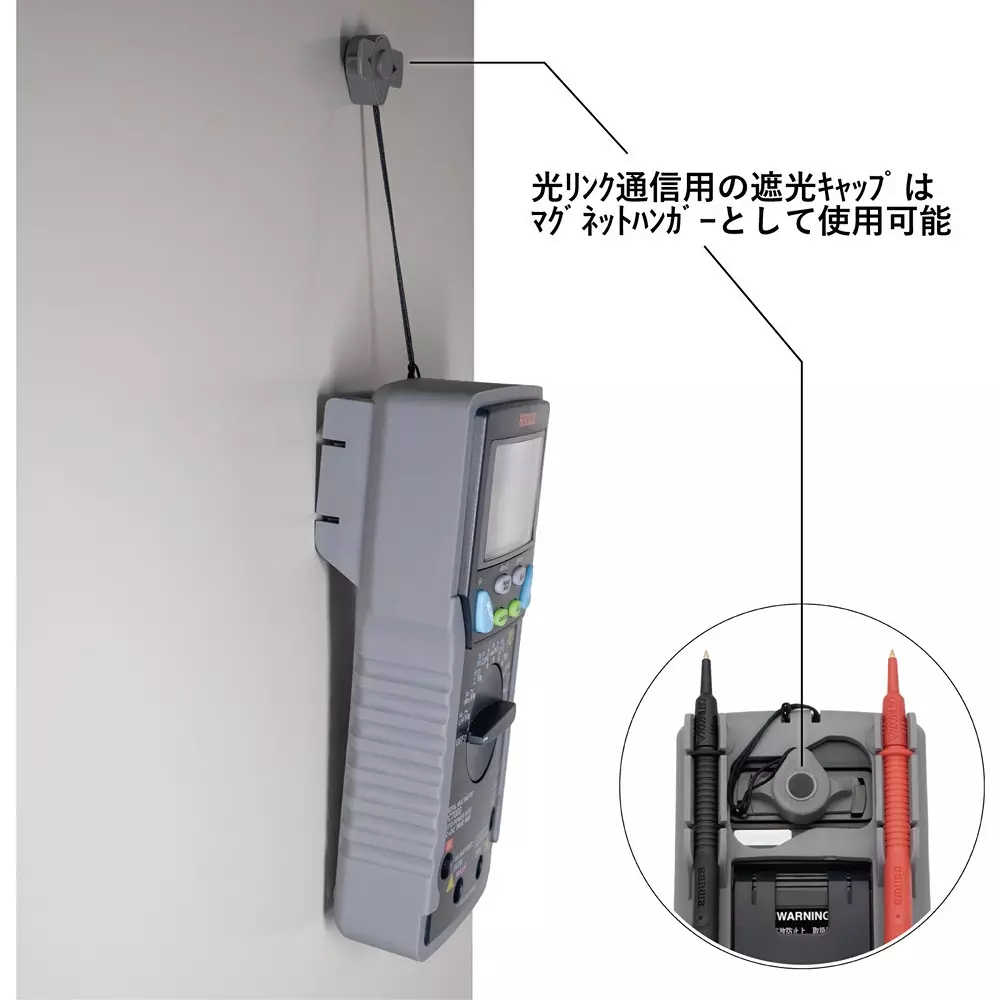

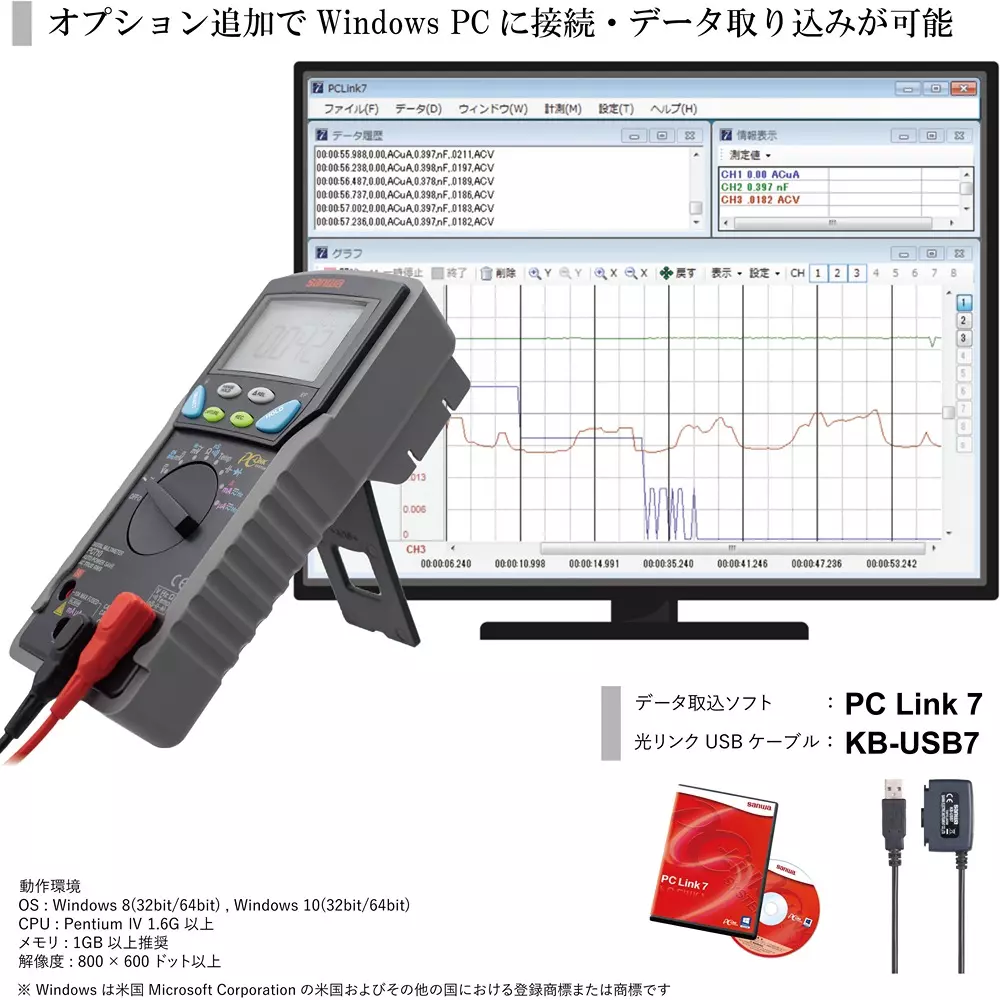

| Features | 6000 & 9999 counts Compliant with international standard IEC61010-01 CAT.III 600V, CAT.II 1000V Minimum resolution of 0.01mV for ACV and DCV measurement High-speed response bar graph Dual display function that simultaneously displays "voltage or current values and their frequency" or "AC and DC components of voltage or current" Frequency (multiple sensitivity selection available) and wide range of capacitor capacitance measurement functions Auto-range compatible relative function (relative value display) Optical link USB interface (optional) Comes with a magnet for hanging on metal surfaces |
Type |
Digital Multimeters |
Type of Product |
Digital Multimeters |
Model No |
PC700 |
Features |
6000 & 9999 counts Compliant with international standard IEC61010-01 CAT.III 600V, CAT.II 1000V Minimum resolution of 0.01mV for ACV and DCV measurement High-speed response bar graph Dual display function that simultaneously displays "voltage or current values and their frequency" or "AC and DC components of voltage or current" Frequency (multiple sensitivity selection available) and wide range of capacitor capacitance measurement functions Auto-range compatible relative function (relative value display) Optical link USB interface (optional) Comes with a magnet for hanging on metal surfaces |
Country of Origin |
Japan |
Power Supply |
6F22 (9V type manganese battery) x 1 |
Display |
Numerical section 9999&6000 Bar graph section 41 segments |
Sample Rate |
5 (numerical value), 60 (bar graph) |
Resistance (Ω) |
600/6k/60k/600k/6M/60M |
DC current (A) |
600μ/6000μ/60m/600m/6/10 |
Duty Ratio |
0 to 100% |
AC Current (A) |
600μ/6000μ/60m/600m/6/10 |
Continuity Check |
Buzzer sound at 20-300Ω or less Open voltage less than 1.2V |
Diode Test |
Open circuit voltage: less than 3.5V |
Voltage (Dc) |
60m/600m/9.999/99.99/999.9 V |
AC Voltage (Volts) |
60m/600m/9.999/99.99/999.9 |
Frequency (Hz) |
15 to 50k, logic frequency: 5 to 1M |
Fuse Type |
New model: F1412 11A/1000V/IR20kA Φ10x38mm ceramic tube, F1211 0.4A/1000V/IR30kA Φ6.3x32mm ceramic tube. Old model: F1199 12.5A/500V/IR20kA Φ6.3x32mm ceramic tube, F1198 0.63A/500V/IR200kA Φ6.3x32mm ceramic tube. |
Included Components |

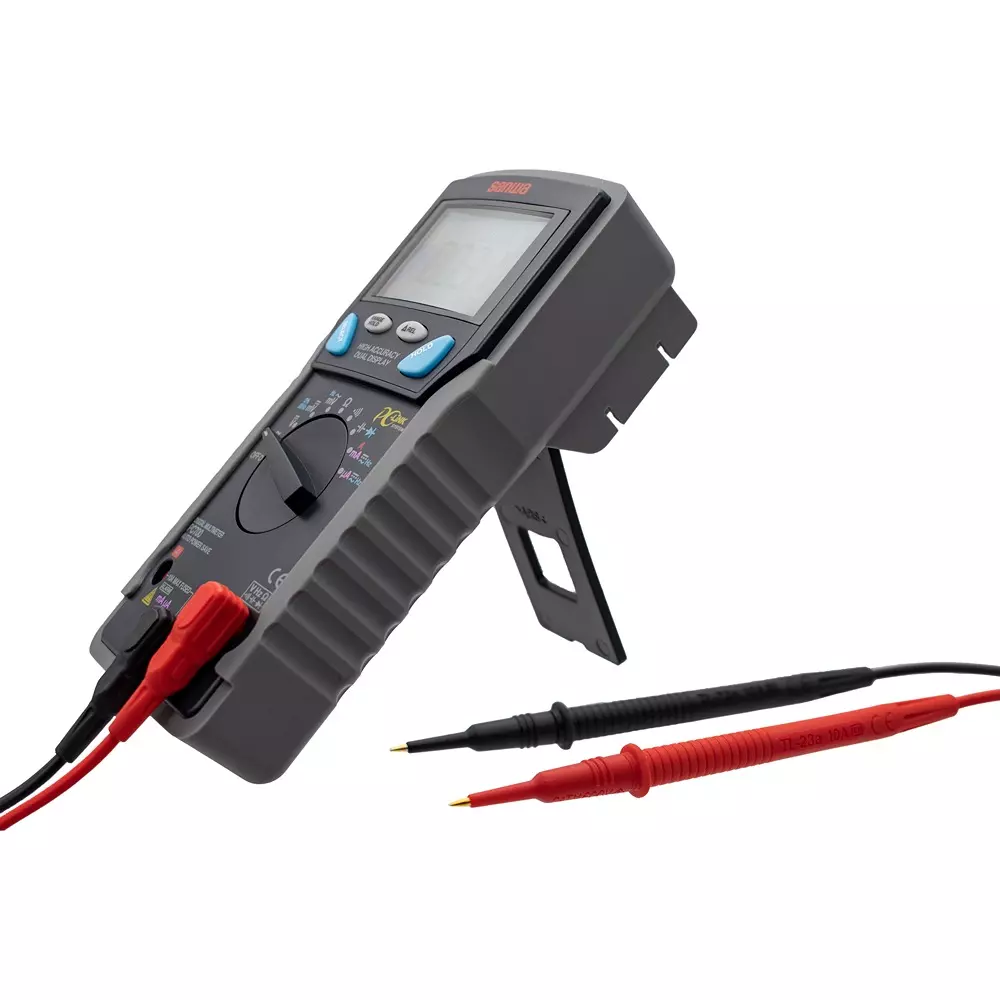

Test lead (TL-23a: total length approx. 1.1 m / pin tip 18 mm), holster (H-700), instruction manual |
Measurement Method |
Average method |
Monotaro ID |
37649306 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Sanwa Electric Instrument Co., Ltd. |
Height (mm) |
184 |
Length (mm) |
52 |
Width (mm) |
86 |
Mass (g) |
430 (including holster) |
Battery Life (hours) |
DCV continuous approx. 60 (manganese battery) |
RoHS Directive |
Correspondence |
Dimension (WxDxH) |
86x184x52 mm |
Safety Standard |
IEC61010 CAT.Ⅲ600 V/CAT.Ⅱ1000V |
Trusco Part No. |
392-3886 |
Frequency Characteristic |
V: 40Hz to 20kHz (99.99V or less) A: 40Hz to 1kHz |
Dimensions (H x W x D) (mm) |
184x86x52 |
Temperature/Humidity Range for Storage |
Temperature: 23±5℃ Humidity: 75%RH or less |
Operation Environment |
5 to 40°C, humidity as follows, no condensation, 80%RH (max) at 5 to 31°C, linear decrease from 80%RH to 50%RH at 31°C to 40°C |
Capacitor Capacitance (μF) |
60 nF/600 nF/6 μF/60 μF/600 μF/6 mF/25 mF |
