| Type | Digital Multimeters |
| Type of Product | Digital Multimeters |
| Model No | PM11 |

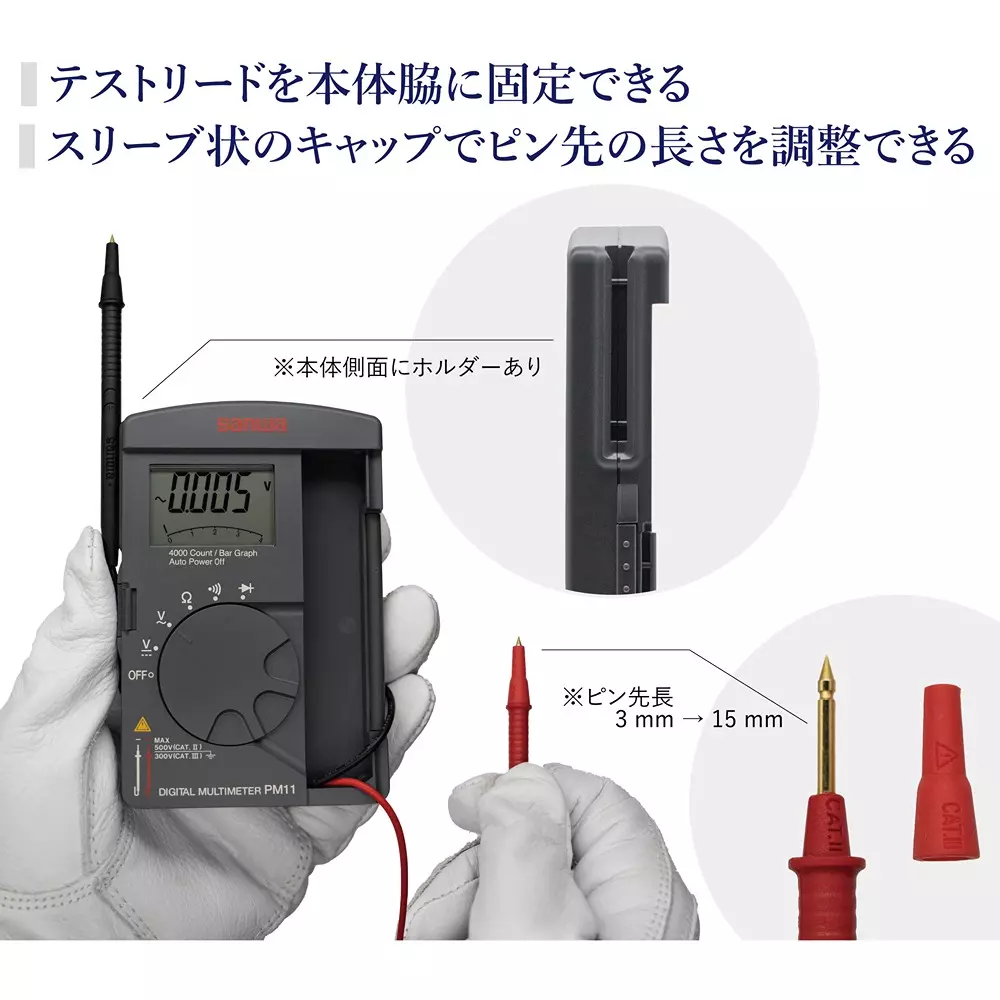

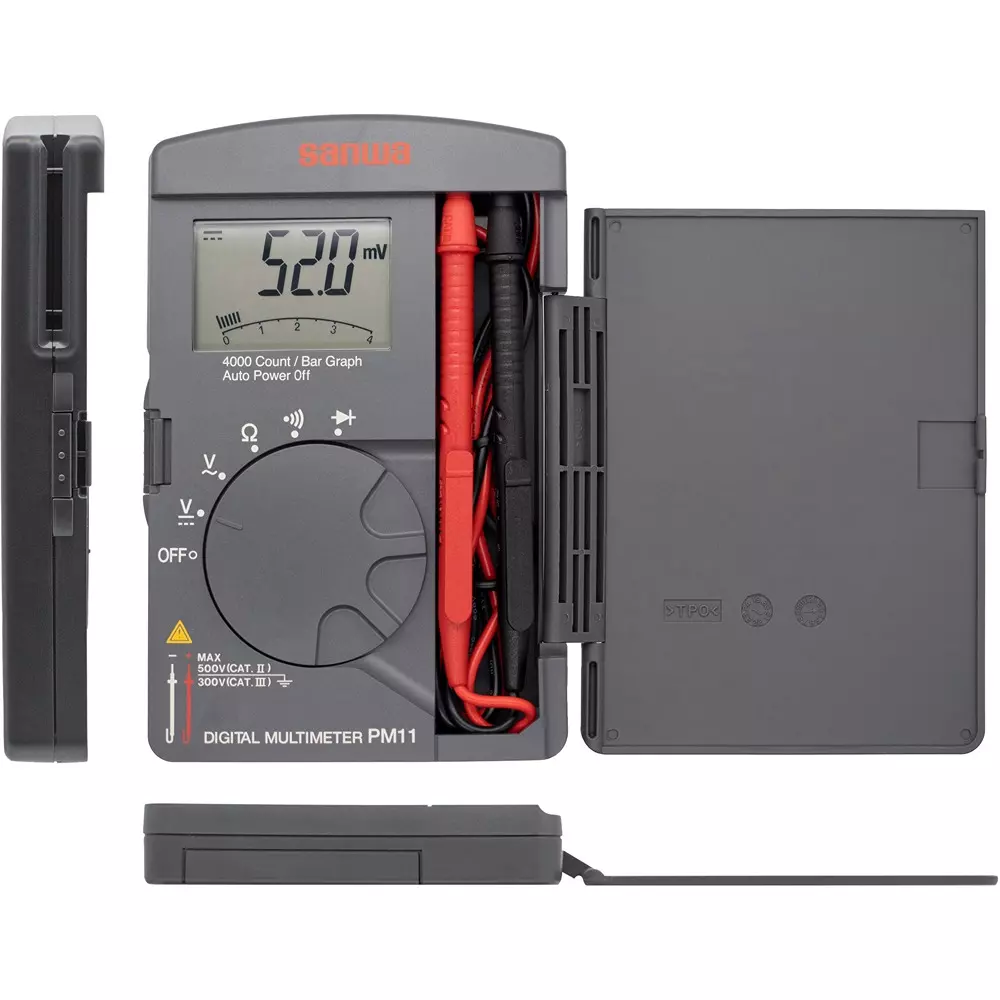

| Features | 4000 counts, 0.8% maximum accuracy, bar graph, test leads stored in the main body, test lead fixing function |
Type |
Digital Multimeters |
Type of Product |
Digital Multimeters |
Model No |
PM11 |
Features |
4000 counts, 0.8% maximum accuracy, bar graph, test leads stored in the main body, test lead fixing function |
Country of Origin |
Japan |
Power Supply |
LR44 (alkaline battery) 1.5V x 2 |
Display |

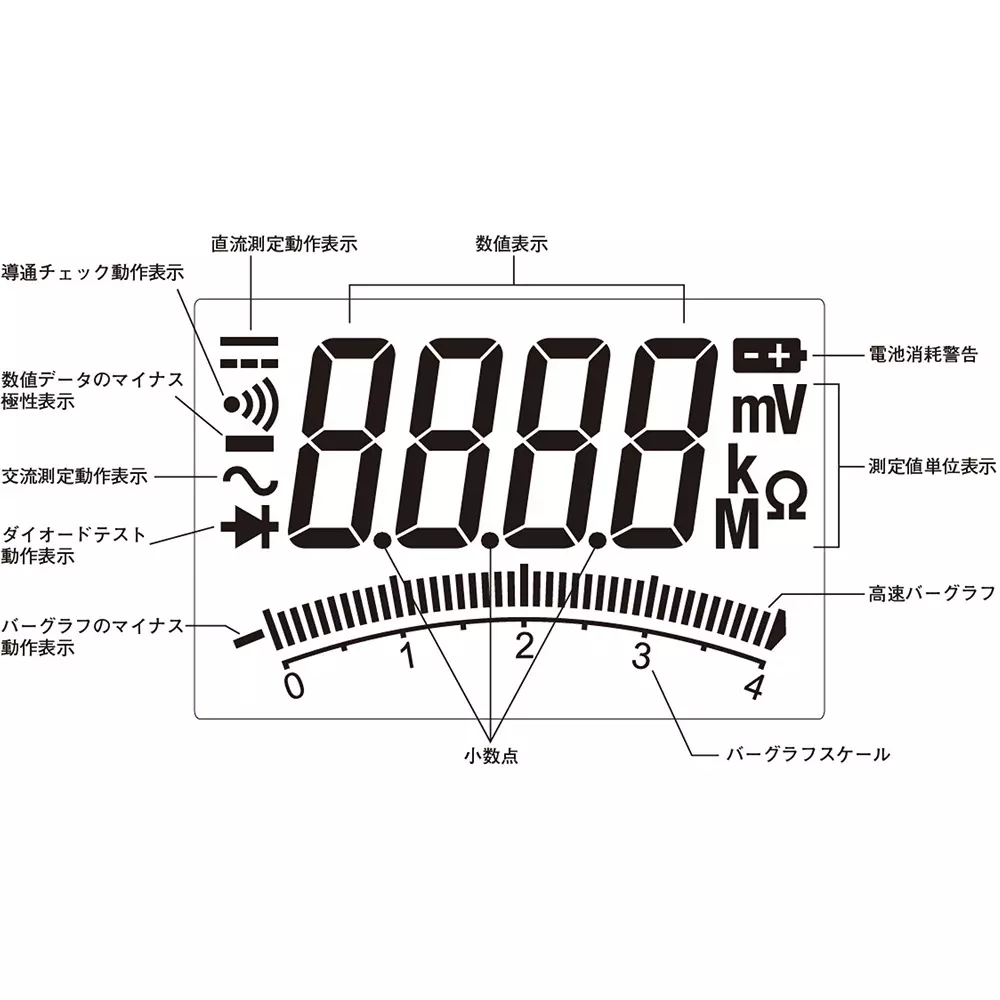

Numerical value section: 4000 Bar graph section: Maximum 40 segments |
Sample Rate |
1.3 (numerical part), 13 (bar graph part) |
Resistance (Ω) |
400/4k/40k/400k/4M/40M |
Continuity Check |
Buzzer sound at approx. 35Ω or less Open voltage: approx. 1.2V |
Diode Test |
Open circuit voltage: Almost battery voltage |
Voltage (Dc) |
400m/4/40/400/500 V |
AC Voltage (Volts) |
4/40/400/500 |
Included Components |
Instruction manual |
Measurement Method |
Average method |
Monotaro ID |
36933486 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Sanwa Electric Instrument Co., Ltd. |
Height (mm) |
117 |
Length (mm) |
18 |
Width (mm) |
76 |
Mass (g) |
About 117 |
RoHS Directive |
Correspondence |
Dimension (WxDxH) |
76x117x18 mm |
Safety Standard |
IEC61010 CAT.Ⅲ300V CAT .Ⅱ 500V |
Trusco Part No. |
333-5194 |
Frequency Characteristic |
45 to 1 kHz |
Dimensions (H x W x D) (mm) |
117x76x18 |
Temperature/Humidity Range for Storage |
23±5℃ 80% RH or less (no condensation) |
Operation Environment |
0 to 40°C, 80% RH or less (no condensation) |
Shape |
Pocket type |
Overall Length (m) |
Approx. 0.5 (test lead) |
Pile Length (mm) |
15 |
