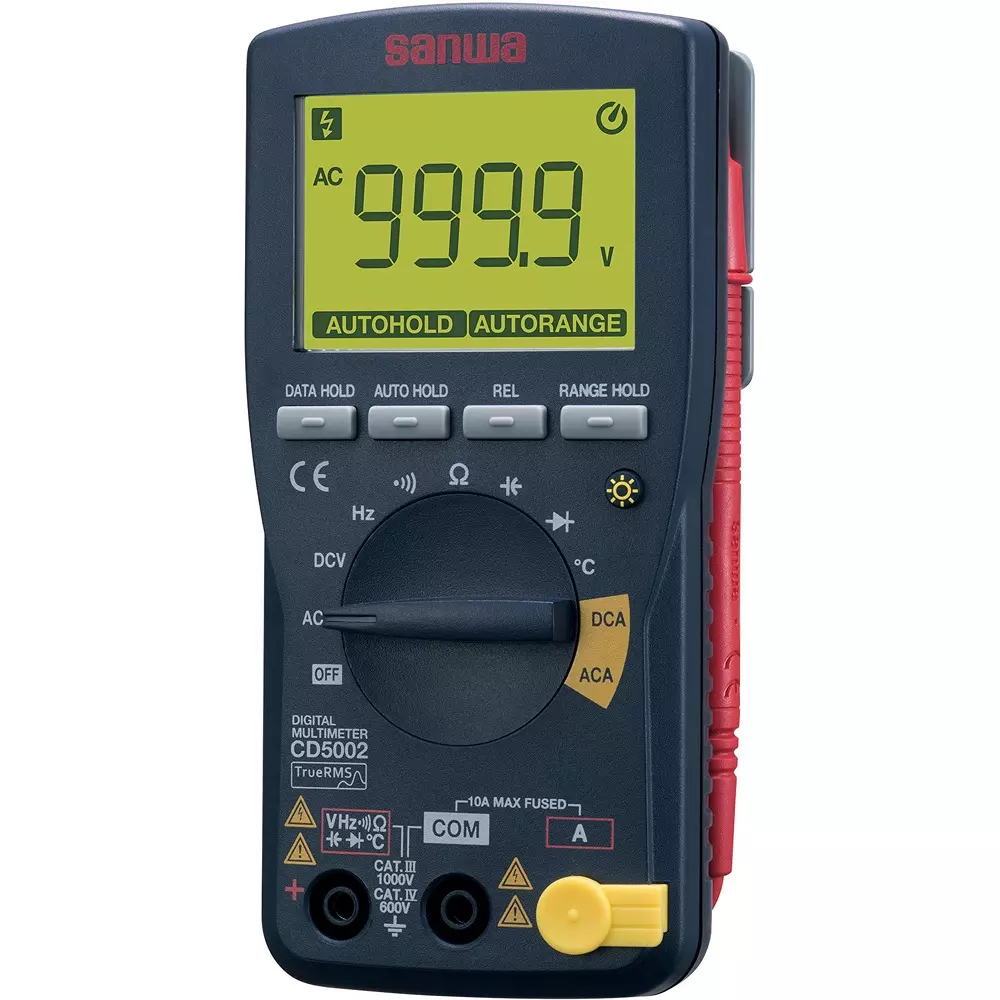

| Type of Product | Digital Multimeter |
| Model No | CD5002 |
| Country of Origin | Japan |
| Power Supply | LR03 (AAA alkaline battery) 1.5V x 2 |
Type of Product |
Digital Multimeter |
Model No |
CD5002 |
Country of Origin |
Japan |
Power Supply |
LR03 (AAA alkaline battery) 1.5V x 2 |
Frequency |
1Hz to 99.99 kHz |
Resistance |
0.1Ω to 99.99MΩ |
Voltage (AC) |
0.1 mV to 999.9V |
DC current (A) |
0.1mA to 9.999A |
AC Current (A) |
0.1mA to 9.999A |
Diode Test |
Open voltage DC3.2V |
Voltage (Dc) |
0.1 mV to 999.9V |
Continuity |
Buzzer sounds at 30 to 70 Ω or less |
Monotaro ID |
63417220 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Sanwa Electric Instrument Co., Ltd. |
Maximum Count |
9999 counts |
Wave Detection |
[AC detection] True RMS method |
RoHS Directive |
Correspondence |
Temperature (℃) |
-40 to 800 (option required) |
