| Type | Digital Multimeters |
| Type of Product | Multimeter |

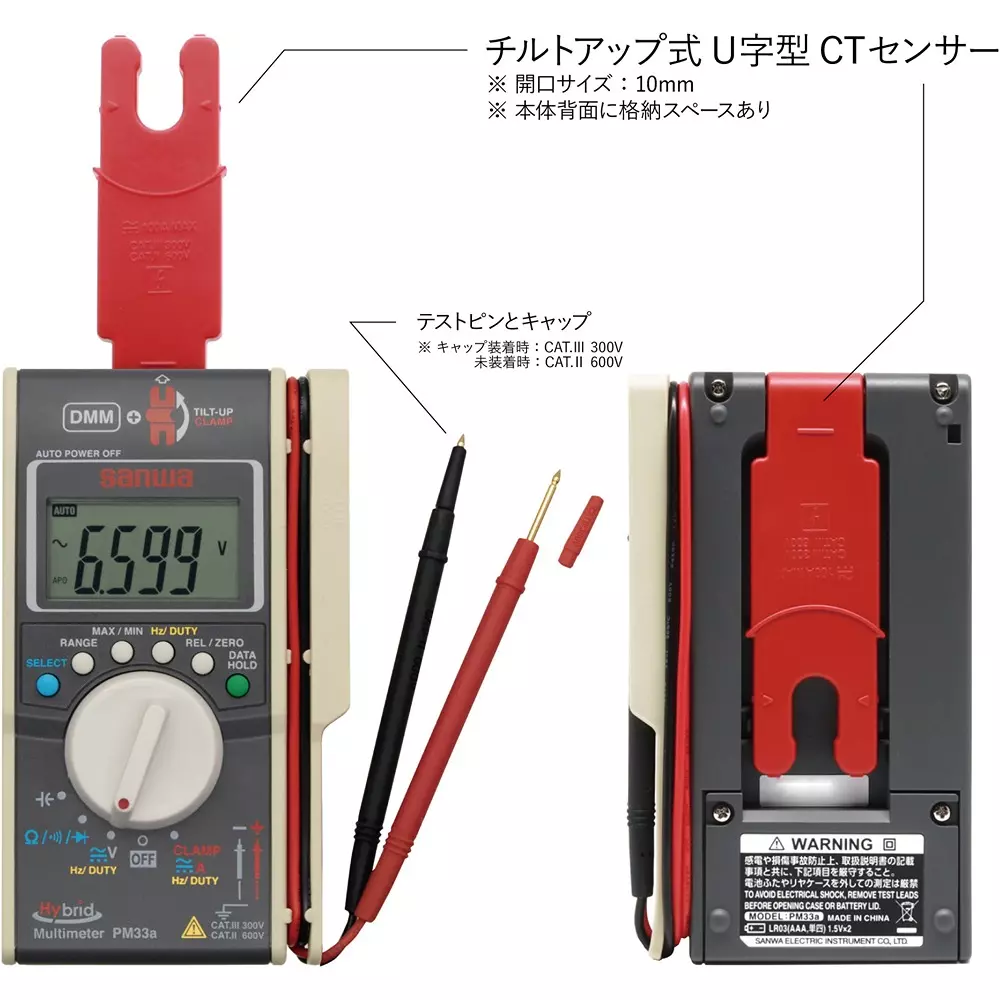

| Model No | PM33a / c (with carrying case) |
| Country of Origin | Japan |
Type |
Digital Multimeters |
Type of Product |
Multimeter |
Model No |
PM33a / c (with carrying case) |
Country of Origin |
Japan |
Power Supply |
LR03 (AAA alkaline) x 2 |
Resistance (Ω) |
660/6.6k/66k/660k/6.6M/66M |
DC current (A) |

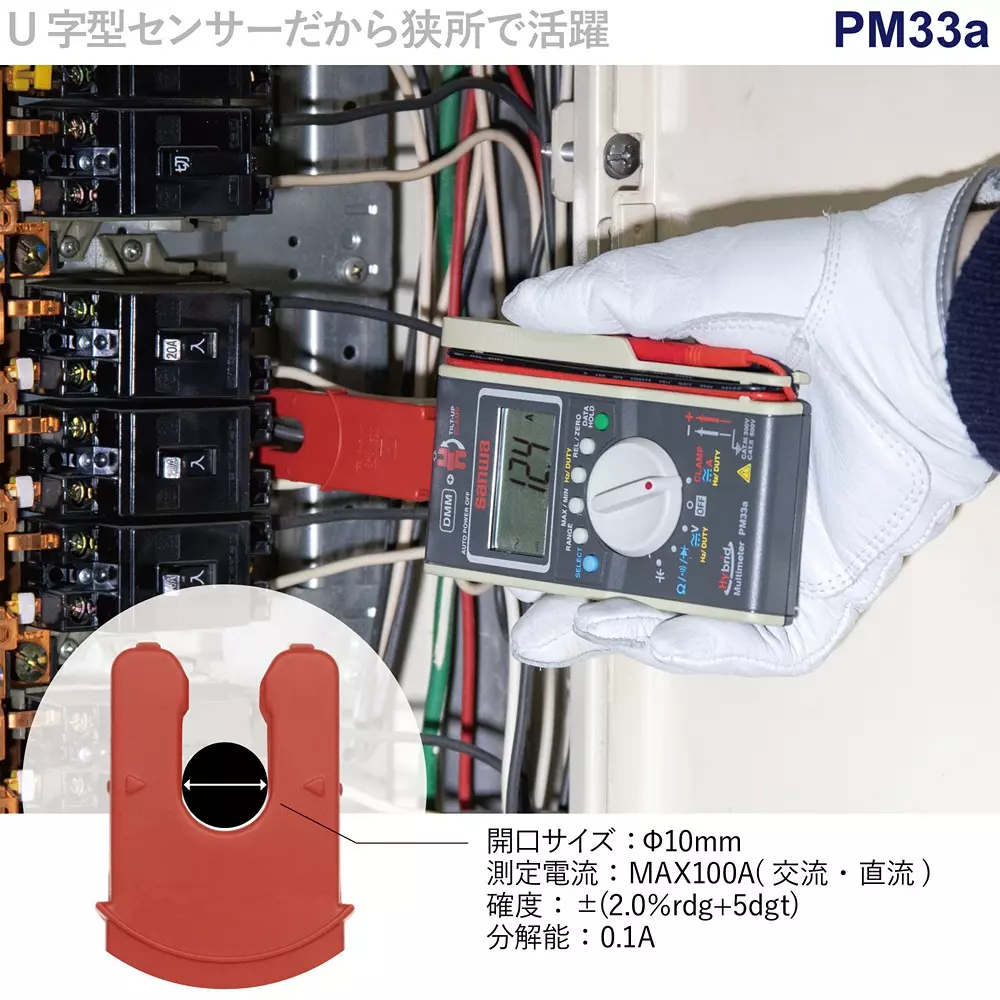

100 (CT clamp) |
Duty Ratio |
20 to 80% |
AC Current (A) |
100 (CT clamp) |

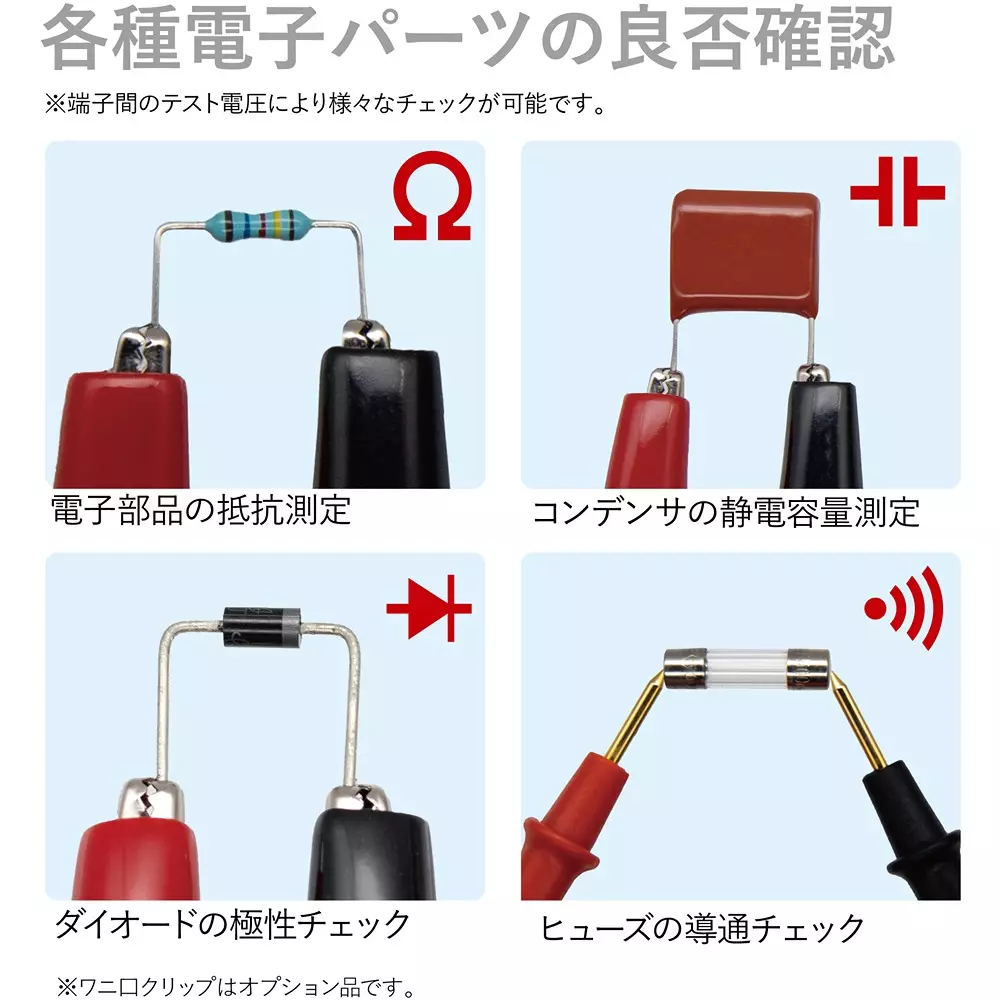

Continuity Check |
Buzzer sound at less than about 30Ω Open voltage: about 1.2V |
Diode Test |
Open circuit voltage: Almost battery voltage |
Voltage (Dc) |
6000m/6.6/66/600 V |
AC Voltage (Volts) |
6000m/6.6/66/600 |
Frequency (Hz) |
660/6.6k/66k |
Included Components |
Instruction manual, carrying case: C-DG3a, magnet sticker for back sticking |
Measurement Method |
Average method |
Monotaro ID |
38019816 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Sanwa Electric Instrument Co., Ltd. |
Height (mm) |
130 |
Length (mm) |
19.9 |
Width (mm) |
75 |
Mass (g) |
About 160 |
RoHS Directive |
Correspondence |
Dimension (WxDxH) |
75x130x19.9 mm |
Safety Standard |
IEC61010 CAT.Ⅲ300 V/CAT.Ⅱ600V |
Trusco Part No. |
353-1627 |
Temperature/Humidity Range for Storage |
23 ± 5 ℃ 80% RH or less No condensation |
Operation Environment |
5-40 ℃ 80% RH or less (no condensation) |
Capacitor Capacitance (μF) |
6.6 nF/66 nF/660 nF/6.6 μF/66 μF/660 μF/6.6 mF/66 mF |
