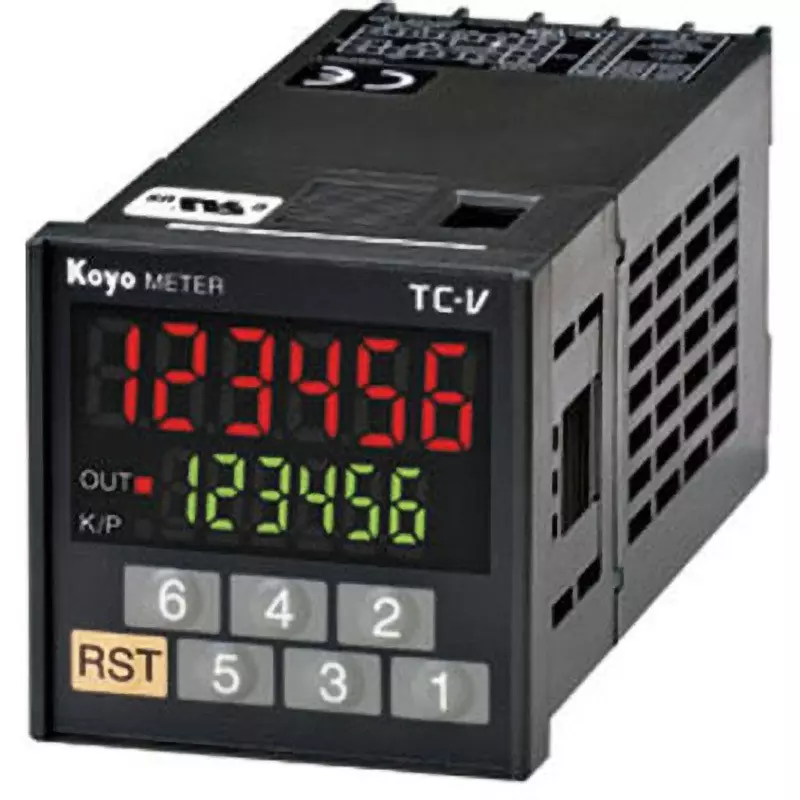

JTEKT Digital Tachometer AC 100 to 240 V Power Supply 10 to 999999 RPM (when prescale is 1) Range, TC-V6S

Name: JTEKT Digital Tachometer AC 100 to 240 V Power Supply 10 to 999999 RPM (when prescale is 1) Range, TC-V6S
Brand: JTEKT
SKU: IND.PRE.543917394
Price: 33039 INR
Availability: InStock

Visit the JTEKT Store

EMI starts at ₹2935/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Output	Non-contact output: NPN open collector output 20V 100mA Withstand voltage 35V Remaining voltage 1.5V or less, Contact output: 1 transfer contact (1c) AC220V 2A (resistance load)
Power Supply	AC
Display	Measured value display: Red LED, character height 10 mm, preset value display: Green LED, character height 7 mm
Storage Temperature	-20 to 70℃ (no freezing)

More JTEKT Digital Tachometer & Stroboscope products More Digital Tachometer & Stroboscope products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Output	Non-contact output: NPN open collector output 20V 100mA Withstand voltage 35V Remaining voltage 1.5V or less, Contact output: 1 transfer contact (1c) AC220V 2A (resistance load)
Power Supply	AC
Display	Measured value display: Red LED, character height 10 mm, preset value display: Green LED, character height 7 mm
Storage Temperature	-20 to 70℃ (no freezing)
Type of Product	Digital Tachometer
Measurement Range	10 to 999999 RPM (when prescale is 1)
Measurement accuracy	± 0.013% Except when low speed input (10Hz) is selected (± 0.1% for low speed input)
Model No	TC-V6S
Included Components	Mounting frame
Protection Class	IP65 (front panel only)
Country of Origin	Japan
Monotaro ID	64535914
Import Country	Direct Import from Japan
Type of Sign	For embedded installation only (terminal block connection)
Withstand Voltage	AC2kV for 1 minute (AC input, 0V, between relay contacts)
Input Type	Voltage
Name of Manufacturer/Packer/Importer	JTEKT Electronics (former Koyo Electronics Industries)
Mass (g)	About 150
Digit Number of Display	6 digits
Input Voltage (V)	”L”0 to 3/”H”7 to 30
Power for Sensor	DC24 V (20-28 V) 60 mA (ripple noise 10% pp or less)
Power Supply Voltage (V)	AC 100 to 240
Measuring Type	Rotation speed only
Power Consumption (VA)	About 15
Power Failure Memory	EEP-ROM rewrite times over 100,000 times, data retention over 20 years
Measuring Time	0.2/0.5/1.0/2.0s
