Ships within 19 days
View
View
View
View
| Country of Origin | Japan |

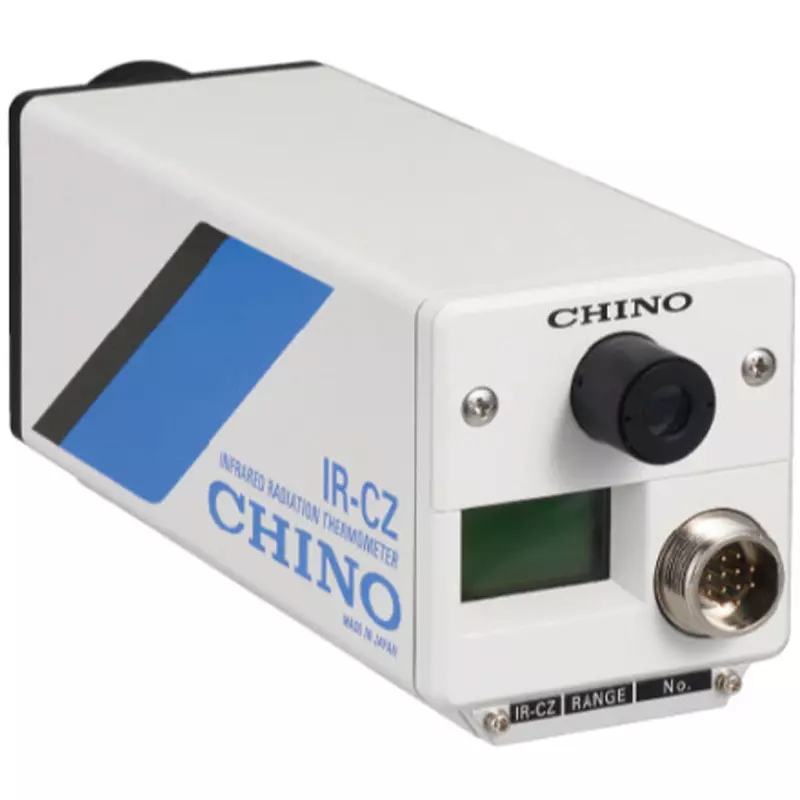

| Type of Product | Radiation Thermometer |
| Interface | RS-485 (transmits measurement data and transmits and receives setting parameters) |
| Resolution | 0.5℃ |
Country of Origin |
Japan |
Type of Product |
Radiation Thermometer |
Interface |
RS-485 (transmits measurement data and transmits and receives setting parameters) |
Resolution |
0.5℃ |
Accuracy |
[Less than 1000°C]: ±5°C, [1000°C or higher but less than 1500°C]: ±0.5% of the measured value, [1500°C or higher]: ±0.6% of the measured value |
Connection Type |
Connector connection, no options |
Input Power |
24 DC V |
Model No |
IR-CZQ2NH |
Monotaro ID |
59937179 |
RoHS Directive |
Correspondence |
Name of Manufacturer/Packer/Importer |
Chino Corporation |
Import Country |
Direct Import from Japan |
Measurement Temperature Range (℃) |
400 to 2000 |
Measurement wavelength |
0.9/1.35/1.55 µm |
Distance Factor |
200 mm |
Remark |
No accompanying documents |
Power Consumption (VA) |
Up to 2.4 |
Method |
[Viewing method] Digital videoscope + close-up lens 600mm combination |
Reproducibility |
Within 0.5℃ |
Output Signal |
4 to 20mA DC, isolated output (load resistance 750O or less) |
Response Time (mS) |
2 to 15 (when measuring above 50°C) |
