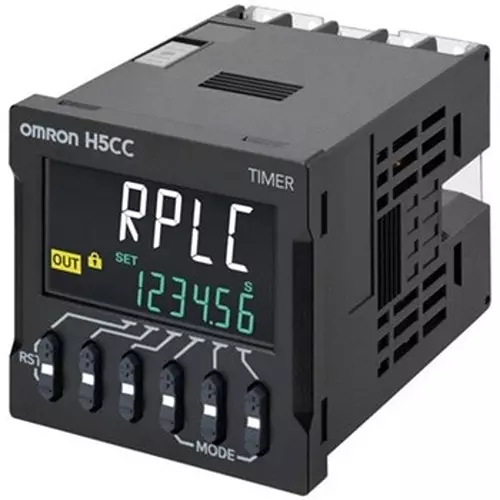

| Type of Product | Digital Timer |
| Model No | H5CC-AWSD |
| Storage Temperature | -25 to 70℃ (no condensation or freezing) |
| Protection Class | IEC standard IP66, but only on the panel surface (when using waterproof packing type Y92S-P6) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Digital Timer |
Model No |
H5CC-AWSD |
Storage Temperature |
-25 to 70℃ (no condensation or freezing) |
Protection Class |
IEC standard IP66, but only on the panel surface (when using waterproof packing type Y92S-P6) |
Time Setting |
0.001s to 999999h |
Type |
Two-stage setting/forecast output type |
Monotaro ID |
50593648 |
Type of Sign |
Embedded mounting |
Operating Temperature Range |
-10 to 55℃ (when mounted closely: -10 to 50)℃ (no condensation or freezing) |
Input Method |
No-voltage (NPN) input/voltage (PNP) input switching |
Input Signal |
Signal, Reset, Gate |
Power Failure Memory |
Non-volatile memory (rewrite count: 100,000 or more) Data retention: 10 years or more |
Power Supply Voltage |
AC24 DC12 to 48 |
Country of Origin |
Japan |
Display Type |
7-segment negative LCD, 6 digits |
Output Type |
Transistor output |
Character Height (mm) |
Time value: 10 (white), setting value: 6 (green) |
Included Components |
Flush mounting adapter (pre-installed), waterproof packing, terminal cover |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Input Power |
AC24 DC12 to 48 |
Pattern Setting |
2nd grade |
Power Consumption (W) |
3.17 |
Pack of |
1 Pcs |
Specifications |
●Case exterior: Black (N1.5) |
