| Type of Product | Dynamic Torque Sensor |
| Model No | IST-IR5S |
| Power Supply | 5-15 V DC |
| Range | 5 Nm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands

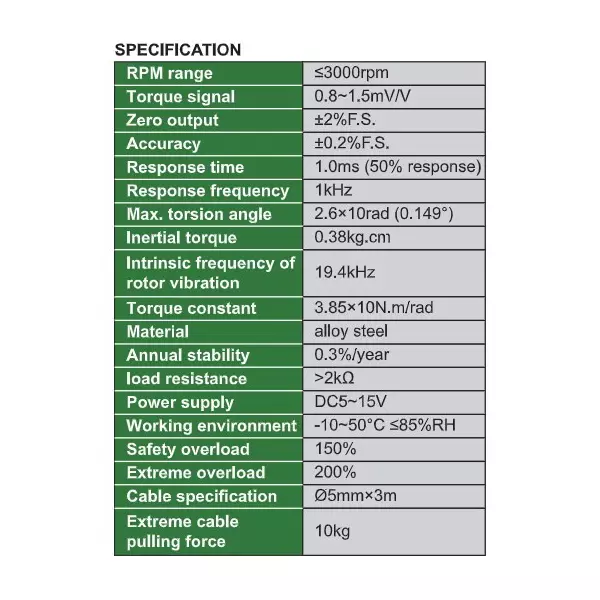

Type of Product |
Dynamic Torque Sensor |
Model No |
IST-IR5S |
Power Supply |
5-15 V DC |
Range |
5 Nm |
Accuracy |
±0.2% FS |
Country of Origin |
India |
Material |
Alloy Steel |

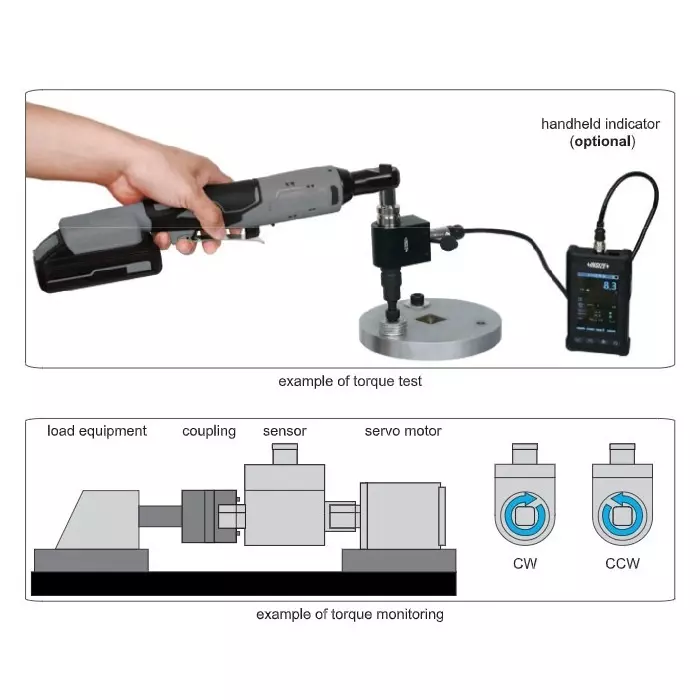

Operation Type |
Clockwise and Counter Clockwise |
Output |
Zero Output: ±2% FS |
Type |
Compact Type |
Head Type |
Hexagonal |
Name of Manufacturer/Packer/Importer |
Insize |
Frequency |
Intrinsic Frequency of Rotor Vibration:19.4 kHz |
Response Time |
1 ms |
Response Frequency |
1 kHz |
Speed |
≤ 3000 RPM |
Force |
Extreme Cable Pulling Force: 10 Kg |
Load Resistance |
> 2 kΩ |
Constant Torque |
3.85x10 Nm/rad |
Specifications |
ø5 mm x 3 m |
Angle |
Maximum Torsion: 2.6x10 rad (0.149°) |
Signal |
Torque: 0.8-1.5 mV/V |
Stability |
Annual: 0.3% / Year |
Operating Environment |
Temperature: -10~50°C, Humidity: ≤ 85% RH |
Inertial Torque |
0.38 Kg.cm |
Overload |
Safety: 150% |
Extreme Overload |
2 |
