Ships within 5 days
View
View
View
View

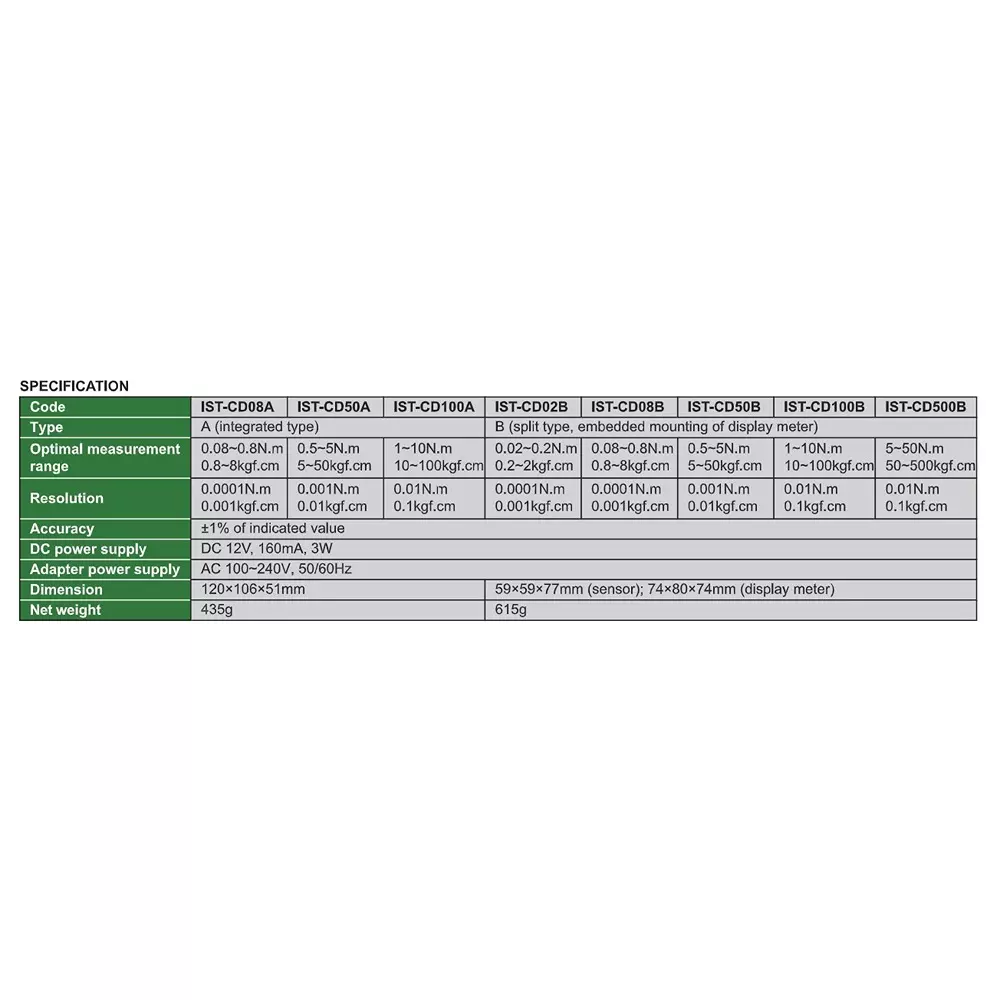

| Type of Product | Torque Tester |
| Weight | 615 g |
| Model No | IST-CD100B |
| Dimension | 120x106x51 mm |
Type of Product |
Torque Tester |
Weight |
615 g |
Model No |
IST-CD100B |
Dimension |
120x106x51 mm |
Power Supply |
12 V DC, 160 mA |
Accuracy |
± 1 % of Indicated Value |
Features |
Compatible with all electric screwdrivers Widely used in manufacturing sectors such as 3C, new energy, automotive parts and etc. Compact in size, extremely easy to integrate, and designed specifically for automated assembly lines High measurement accuracy and excellent repeatability Set upper and lower tolerance limits and output pass/fail signals via I/O ports which can be connected to external alarm indicator or PLC Support multiple standard communication protocols and compatible with mainstream communication ports such as RS485 and RS232, provide output of data such as real-time torque and peak torque 2.0-inch TFT high-definition color screen Unit: N.m, mN.m, lbf.in, kgf.cm Auto-zero and adjustable peak hold time |
Country of Origin |
China |
Units |
N.m, mN.m, lbf.in, kgf.cm |
Application Area |
Manufacturing Sectors Such As 3C, New Energy, Automotive Parts And Etc. |
Display Type |
2.0 inch (50.8 mm) TFT high-definition color screen |
Suitable For |
Electric Screwdrivers |
Power |
3 W |
Series |
IST-CD |
Name of Manufacturer/Packer/Importer |
INSZIE |
Sensor Type |
Fixed Type |
Buffer |
Yes |
Maximum Range |
10 Nm |
Torque Testing Category |
Dynamic Torque |
Installation Method |
Portable Installation |
Mounting Type |
Machine Mount |
