Ships within 25 days
View
View
View
View

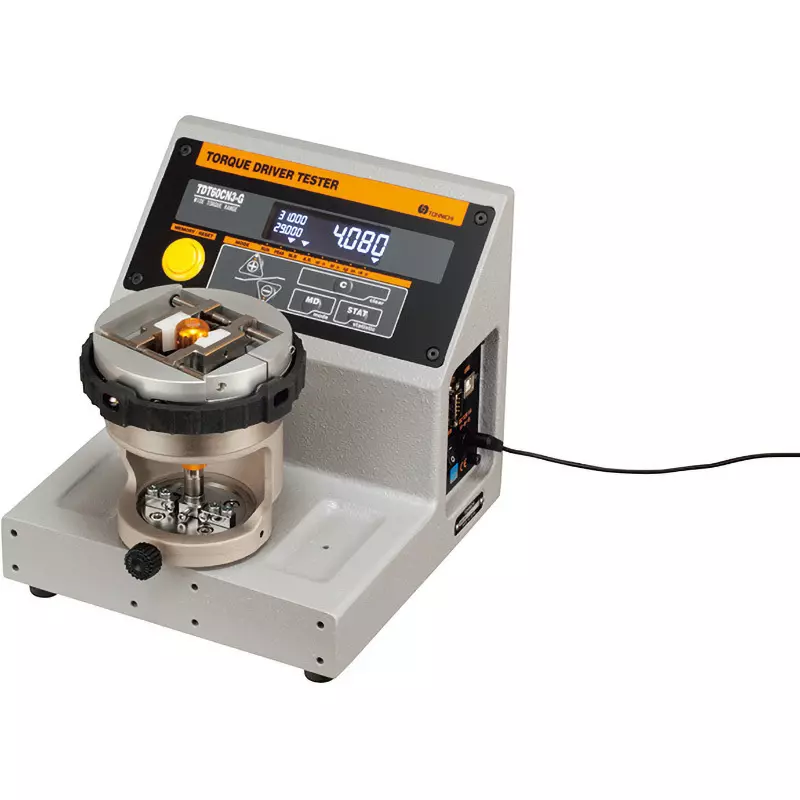

| Type of Product | Digital Torque Driver Tester |
| Model No | TDT600CN3 |
| Resolution | 0.05 cNm |
| Included Components | AC adapter (model: BA-6), loading device for STA (LTD / RTD), clamp tool |
Type of Product |
Digital Torque Driver Tester |
Model No |
TDT600CN3 |
Resolution |
0.05 cNm |
Included Components |
AC adapter (model: BA-6), loading device for STA (LTD / RTD), clamp tool |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Tohnichi Manufacturing Co., Ltd. |
Square Drive (mm) |
Hexagon opposite side 6.35 male (with minus 0.7 groove) |
Torque Adjustment Range (Nm) |
20 to 600 |
Monotaro ID |
65400878 |
Operating Temperature Range |
0-40℃ (non-condensing) |
Data Output |
RS232C (quasi-note), USB connector (B type) compatible serial co mmunication |
Data Memory |
1000 data * 99 data in M99 mode of TDT2 compatibility mode |
Input Power |
AC 100-240 V ± 10% (50 / 60 Hz) * 12 (when using the separately sold battery pack BP-100-3) |
RoHS Directive |
Correspondence |
Torque Adjustment Per 1 Scale (Nm) |
0.05 |
Measurement Modes |
PEAK/RUN |
Mass (Kg) |
About 11 |
Import Country |
Direct Import from Japan |
Statistical Function |
Number of samples, maximum value, minimum value, average value |
Specification Class |
Pass / Fail Judgment Upper / Lower Limit Registration: 10 types |
Reset |
Manual / Auto (0.1 to 5.0 sec can be set arbitrarily) |
Adjustment Range |
Automatic |
