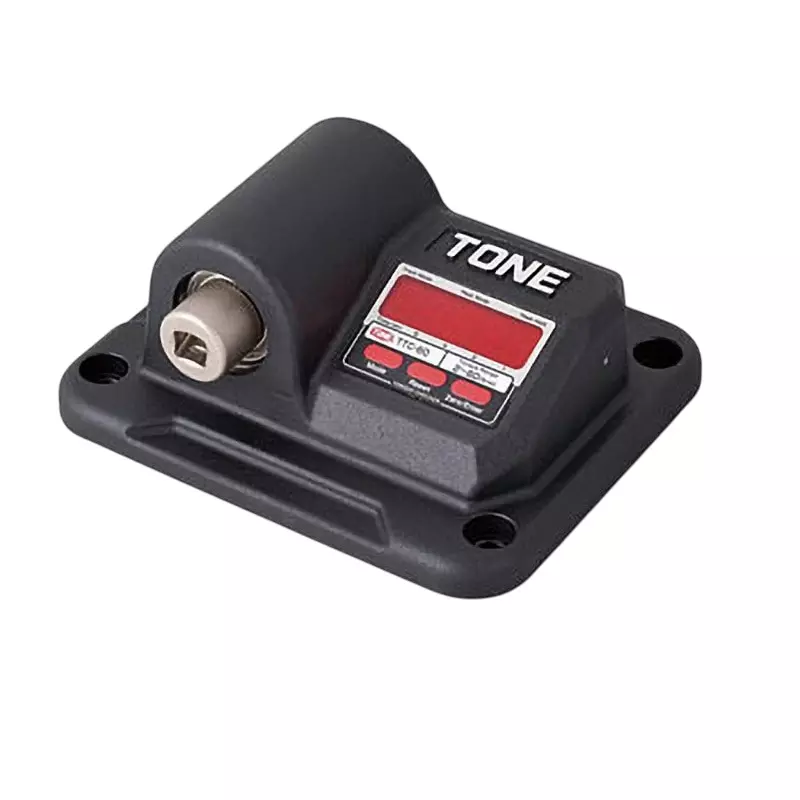

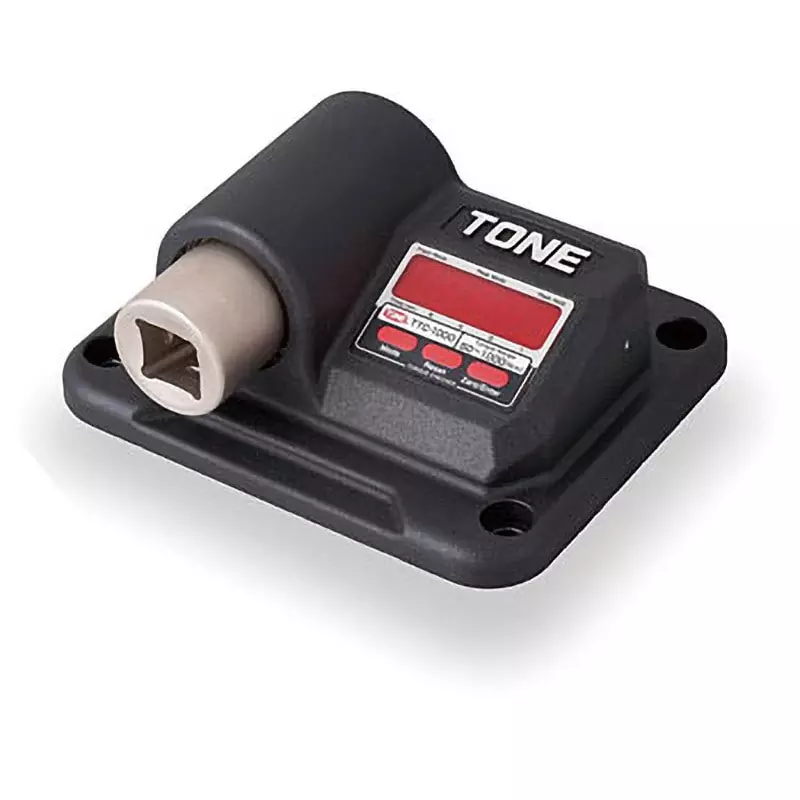

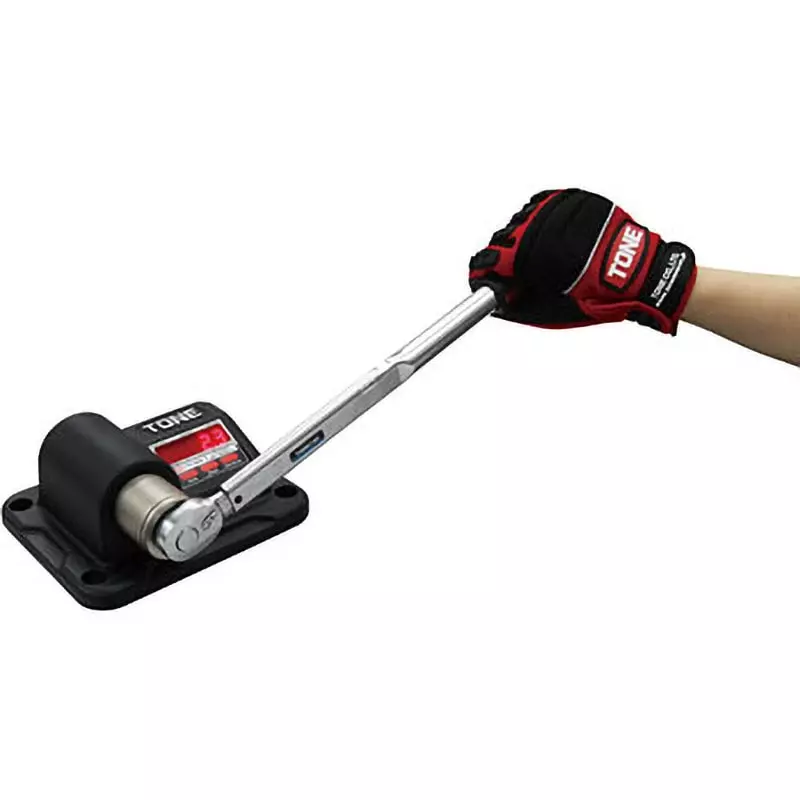

TONE Torque Checker 25.4 mm Insertion Angle of Input Side 5 to 40°C Operating Temperature Range, TTC-1000

Name: TONE Torque Checker 25.4 mm Insertion Angle of Input Side 5 to 40°C Operating Temperature Range, TTC-1000
Brand: TONE
SKU: HAN.DIG.635579766
Price: 153399 INR
Availability: InStock

Visit the TONE Store

EMI starts at ₹13629/month. No Cost EMI available.

Available offers

Flat ₹200 off on Order above ₹7,000 | Valid for NEW Business Users

View

Flat ₹100 off on Order above ₹5000 | Valid for NEW Business Users

View

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Flat ₹800 off on Order above ₹20,000 | Valid for REPEAT Business User

View

Features

Type of Product	Torque Checker

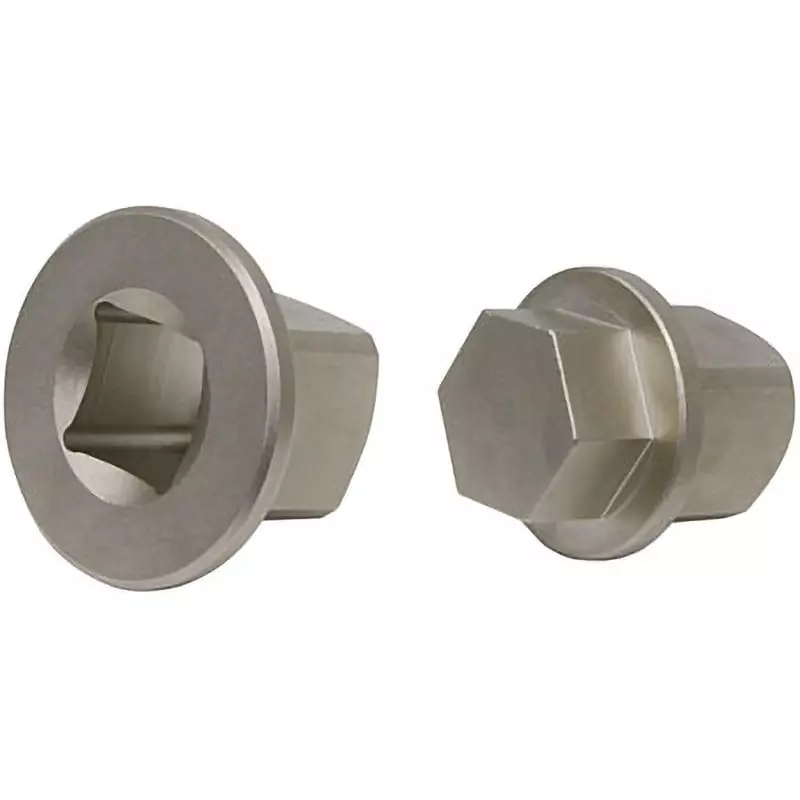

Included Components	Conversion adapter-(TTC-60: concave 6.35mm x convex 12.7mm, concave 9.5mm x convex 12.7mm, TTC-500, TTC-1000: concave 9.5mm x convex 25.4mm, concave 12.7mm x convex 25.4mm, concave 19.0 mm x convex 25.4mm) each 1, hexagonal convex adapter (TTC-60: hexagon 19mm x convex 12.7mm, hexagon 27mm x convex 12.7mm, TTC-500, TTC-1000: hexagon 27mm x convex 25.4mm, hexagon 38mm x convex 25.4mm) each 1, AC adapter (100-240V / 50-60Hz), hexagon socket head cap screw (including M10 x 45 / washer, nut) 4, instruction manual, calibration certificate (with traceability system diagram)
Country of Origin	Japan
Name of Manufacturer/Packer/Importer	TONE Co., Ltd.

More TONE Digital Torque Tester products More Digital Torque Tester products

Warranty as per brand

100% Original Products

Secure payments

100% Buyer protection

Top Brands

specifications

Type of Product	Torque Checker
Included Components	Conversion adapter-(TTC-60: concave 6.35mm x convex 12.7mm, concave 9.5mm x convex 12.7mm, TTC-500, TTC-1000: concave 9.5mm x convex 25.4mm, concave 12.7mm x convex 25.4mm, concave 19.0 mm x convex 25.4mm) each 1, hexagonal convex adapter (TTC-60: hexagon 19mm x convex 12.7mm, hexagon 27mm x convex 12.7mm, TTC-500, TTC-1000: hexagon 27mm x convex 25.4mm, hexagon 38mm x convex 25.4mm) each 1, AC adapter (100-240V / 50-60Hz), hexagon socket head cap screw (including M10 x 45 / washer, nut) 4, instruction manual, calibration certificate (with traceability system diagram)
Country of Origin	Japan
Name of Manufacturer/Packer/Importer	TONE Co., Ltd.
Minimum Scale (Nm)	0.1
Accuracy (%)	Â± 1% + 1 scale
Monotaro ID	26357467
Trusco Part No.	773-1744
Pack of	1 Pcs
Operating Temperature Range	5 ～40
Input Power	100 ～240
Product Code	TTC-1000
Storage Temperature Range	-20 ～70
Measurement Modes	Track mode / peak mode / peak hold mode
Minimum Display	0.0 ～
Measurement Method	Clockwise direction (clockwise)
Mass (Kg)	2.8

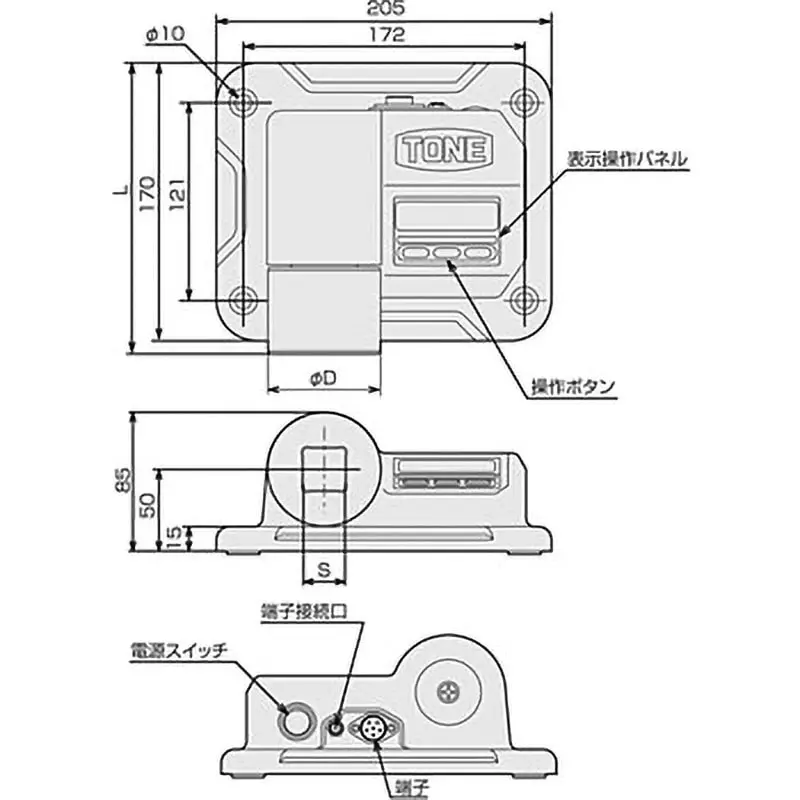

Dimension S	25.4 mm
Insertion Angle of Input Side (mm)	25.4
Dimension L (mm)	173
Torque Range, from Minimum to Maximum (Nm)	50 ～1000
Dimension d	48 mm
Import Country	Direct Import from Japan
