| Type of Product | Slide Dip Switch |
| Model No | A6SN-6101 |
| Color | (Strike) White |
| Pack of | 1 Pcs |
Type of Product |
Slide Dip Switch |
Model No |
A6SN-6101 |
Color |
(Strike) White |
Pack of |
1 Pcs |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Monotaro ID |
39027021 |
Operating Temperature Range |
-30 to +85℃ 60% RH or less (with no icing or condensation) |
Import Country |
Direct Import from Japan |
Type |
Flat type |
Part No |
64-3336-89 |
Contact Resistance (ohm) |
200 or less (initial value) |
Insulation Resistance (MOhm) |
100 mohm or more (at 100 V DC) |
Withstand Voltage |
Between terminals: 300 VAC 1 min |
Operating Humidity Range |
35 to 95% RH (at +5 to + 35 ° C) |

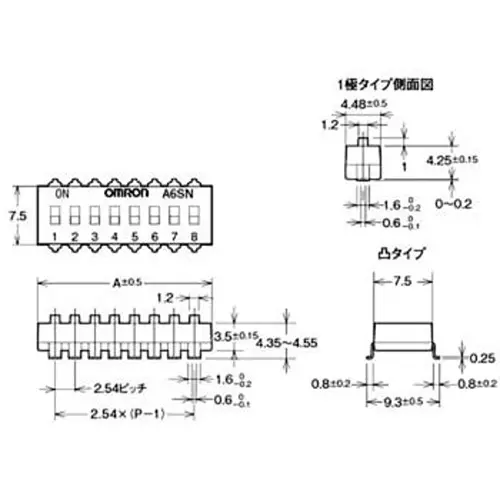

Dimension A (Φmm) |
17.2 |
Operating Force (N) |
0.98 to 7.9 |
Electrical Durability |
1000 times or more |
Vibration Resistance (Malfunction) |
10-55Hz double amplitude 1.5 mm |
No. of Pole |
6 |
Shock Resistance (Malfunction) |
490 m/s² or more |
Mass (g) |
0.8 |
Specifications |
Washable |
Protection Class |
IEC IP40 |
Rating |
24 mA 25 mA, 3.5 V DC 10 μA (minimum current) |
