Ships within 19 days
Model No
No. of Pole
View
View
View
View

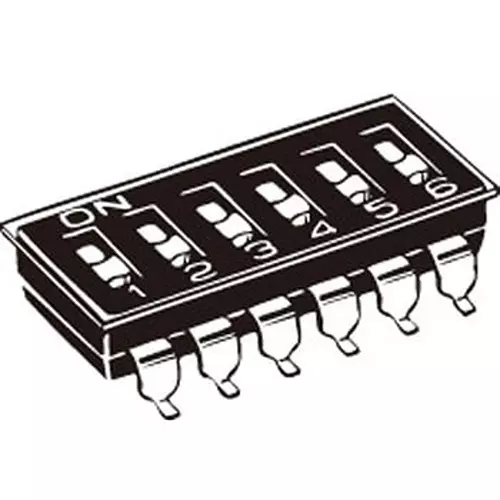

| Type of Product | Slide Dip Switch |
| Model No | A6S-3102-H |
| Color | (Strike) White |
| Pack of | 1 Pcs |
Type of Product |
Slide Dip Switch |
Model No |
A6S-3102-H |
Color |
(Strike) White |
Pack of |
1 Pcs |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Monotaro ID |
46443257 |
Operating Temperature Range |
-20 to +70℃ 60% RH or less (with no icing or condensation) |
Contact Configuration |
1a (normally open contact) |
Import Country |
Direct Import from Japan |
Type |
Flat type (with seal tape) |
Part No |
64-3336-57 |
Contact Resistance (ohm) |
200 or less (initial value) |
Insulation Resistance (MOhm) |
100 mohm or more (at 250 VDC) |
Withstand Voltage |
Between terminals: AC500V 1min |
Electrical ratings |
24 mA 25 mA, 3.5 V DC 10 μA (minimum current) |
Operating Humidity Range |
35 to 95% RH (at +5 to + 35 ° C) |
Dimension A (Φmm) |
8.56 |
Operating Force (N) |
0.29 to 9.8 |
Electrical Durability |
1000 times or more |
Vibration Resistance (Malfunction) |
10-55Hz double amplitude 1.5 mm |
No. of Pole |
3 Pole |
Shock Resistance (Malfunction) |
300 m/s² or more |
