| Model No | 5763990220 |
| Type of Product | Directional Valve |
| Valve Type | Spool valve, positive overlapping |
| Nominal Flow Rate | 1010 l/min |
Model No |
5763990220 |
Type of Product |
Directional Valve |
Valve Type |
Spool valve, positive overlapping |
Nominal Flow Rate |
1010 l/min |
Ambient Temperature |
-15 °C |
Country of Origin |
Germany |
Connection Size |
EN 175301-803, Form C |
Connection Type |
Plate connection |
Name of Manufacturer/Packer/Importer |
INGSOL LLP |
Standard |
ISO 15407-1 |
Switching |

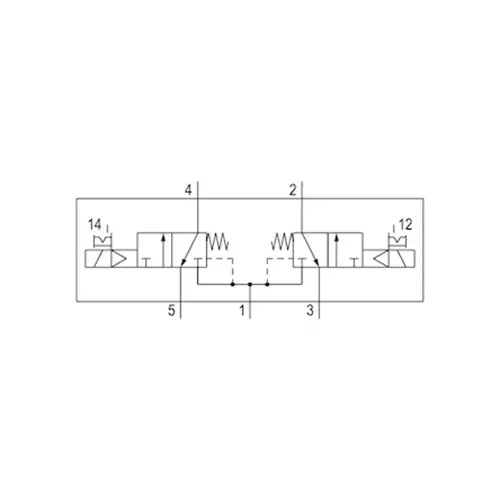

2x3/2 |
Pilot Valve Width |
26 mm |
Sealing |
Soft Seal |
Power Consumption |
1.6 W |
Electrical Connection Type |
Plug |
Manual Override |
With detent |
Control Pressure Min. |
2.5 bar |
Version |
NC/NC |
Control Pressure Max. |
10 bar |
Frame Size |
26 mm |
