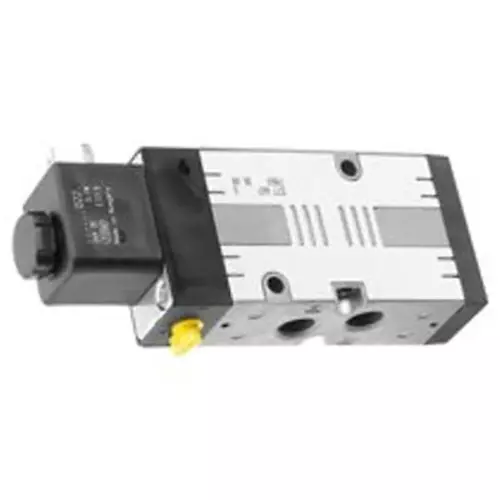

| Model No | 5776080220 |
| Type of Product | Directional Valve |
| Working Pressure | 0.95-10 Bar |
| Nominal Flow Rate | 1200 l/min |
Model No |
5776080220 |
Type of Product |
Directional Valve |
Working Pressure |
0.95-10 Bar |
Nominal Flow Rate |
1200 l/min |
Ambient Temperature |
-25-50 °C |
Country of Origin |
Germany |
Connection Size |
EN 175301-803, Form A |
Name of Manufacturer/Packer/Importer |
INGSOL LLP |

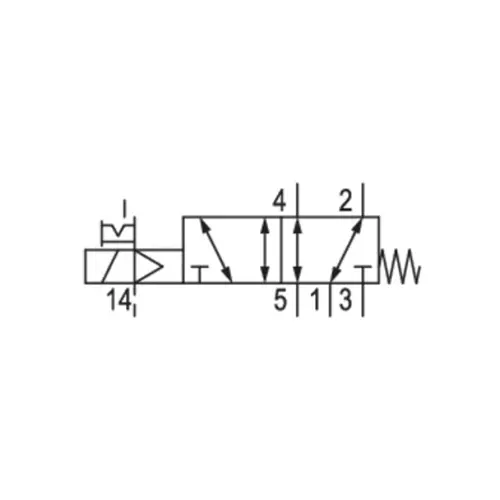

Switching |
5/2, with spring return |
Pilot Valve Width |
30 mm |
Sealing |
Soft seal |
Electrical Connection Type |
Plug |
Manual Override |
With detent |
Frame Size |
CD07 |
Air Connection |
G 1/4 |
Duty Cycle |
1 |
Switch-off time |
45 ms |
Reverse Polarity Protection |
Protected against polarity reversal |
Operating Voltage |
24 V DC |
Switch On Time |
25 ms |
Pilot |
External |
Connector Standard |
EN 175301-803:2006 |
