| Model No | HV01-8-2 |
| Material | Lock claw/stainless steel, Release ring/cap lever/polyacetal (POM), Tube/polyurethane or nylon, Guide ring, metal body, spool/brass (electroless nickel plating), Elastic sleeve/O ring/Nitrile rubber (NBR), Resin body/polybutylene terephthalate (PBT) |
| Color | Standard Color (Resin Body & Open Ring: Black, Cap Lever: Blue) |
| Type of Product | Hand Valve |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
HV01-8-2 |
Material |
Lock claw/stainless steel, Release ring/cap lever/polyacetal (POM), Tube/polyurethane or nylon, Guide ring, metal body, spool/brass (electroless nickel plating), Elastic sleeve/O ring/Nitrile rubber (NBR), Resin body/polybutylene terephthalate (PBT) |
Color |
Standard Color (Resin Body & Open Ring: Black, Cap Lever: Blue) |
Type of Product |
Hand Valve |
Tube Diameter |
8 mm |
Shape |
Straight |
Weight |
35 g |
No. of Port |
2 |
Country of Origin |
JAPAN |
Suitable Fluid |
Air |
Monotaro ID |
35314255 |

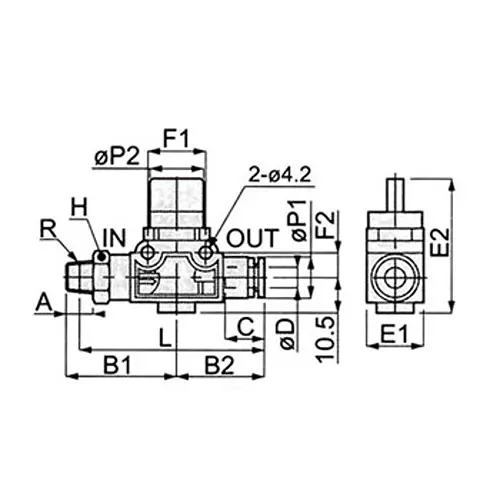

Dimension F1 |
18 mm |
Dimension B1 (mm) |
33.5 mm |
Operating Temperature Range |
0 to 60℃ |
Dimension B2 |
27.7 mm |
Operating Pressure Range (MPa) |
0 to 0.9 MPa |
Thread Type |
R |
Pipe Connection Diameter |
1/8 |
Dimension L (mm) |
57.2 mm |
Section Area |
8.9 mm² |
Dimension E1 |
17 mm |
Dimensions C (mm) |
18.1 mm |
Dimension E2 |
40.5 mm |
Dimensions A (mm) |
8 mm |
Name of Manufacturer/Packer/Importer |
Pisco Co. Ltd |
Pipe Connection Size |
3.17 mm |
Tube Diameter (mm) |
8 mm |
