| Type | OM-B |
| Model No | OM-34B |
| Protection Class | IP44 |

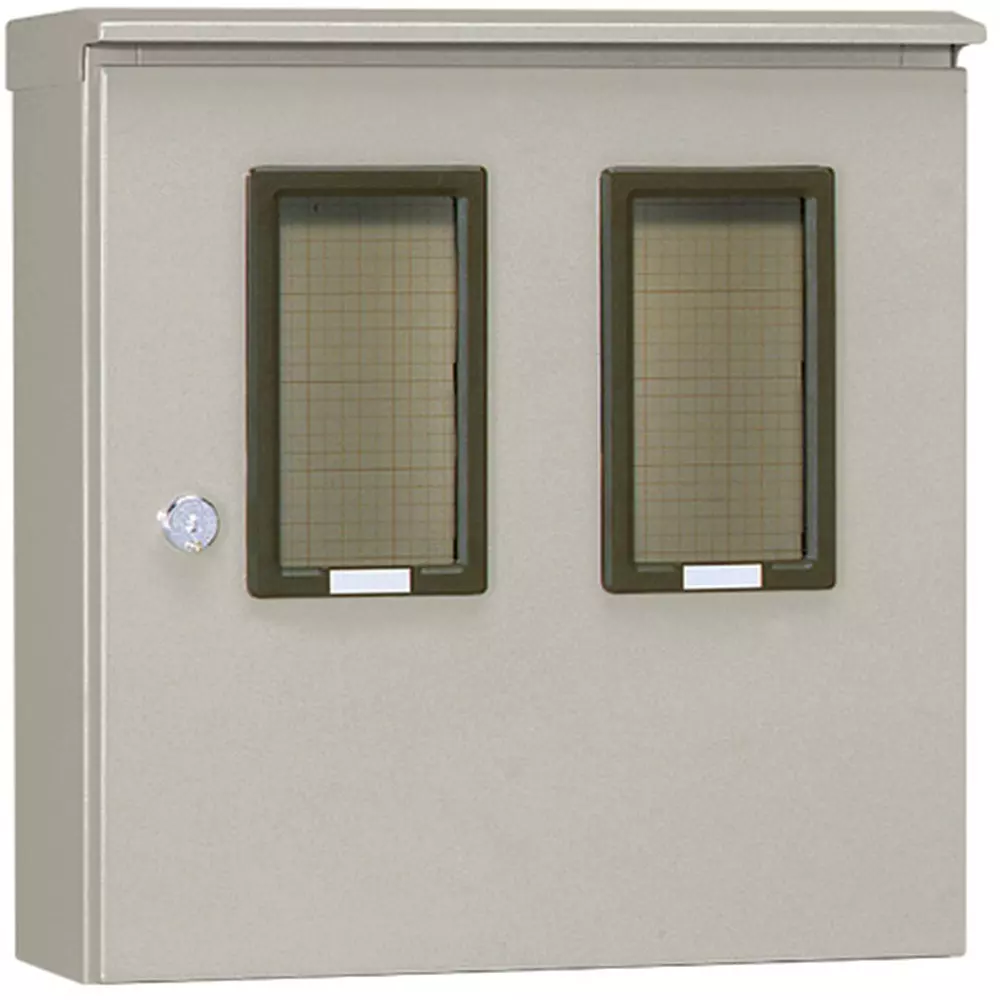

| Type of Product | Intake Instrument Panel Cabinet |
Type |
OM-B |
Model No |
OM-34B |
Protection Class |
IP44 |
Type of Product |
Intake Instrument Panel Cabinet |
Country of Origin |
Japan |
Material |
Iron |
Door Type |
One door |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44657191 |
Import Country |
Direct Import from Japan |
Space |
For all electric power service areas (excluding Tokyo Electric Power Company, Chubu Electric Power Company, and other areas where reinforced weatherproof power meters are used) [WHM single (3) phase 3 wire system 120A]x1 [WHM single phase 2 wire system 30A]x1 time Switchx1 TEPCO service area, Chubu Electric Power service area, and other areas where the reinforced weather-resistant power meter is used - |
Paint Color |
Light beige (5Y7 / 1) |
Mass (Kg) |
17.7 |
Outer Dimensions (mm) |
Vertical: 530 |
Handle |
Sealed key handle |
RoHS Directive |
Correspondence |
Thickness (mm) |
Door, body: 1.6 |
Installation Location |
Outdoors |
Mounting Board |
Wooden board 25 mm |
Dimensions (W x H x D) |
500x500x200 mm |
