| Type | OMS-B |
| Model No | OMS-44BC |

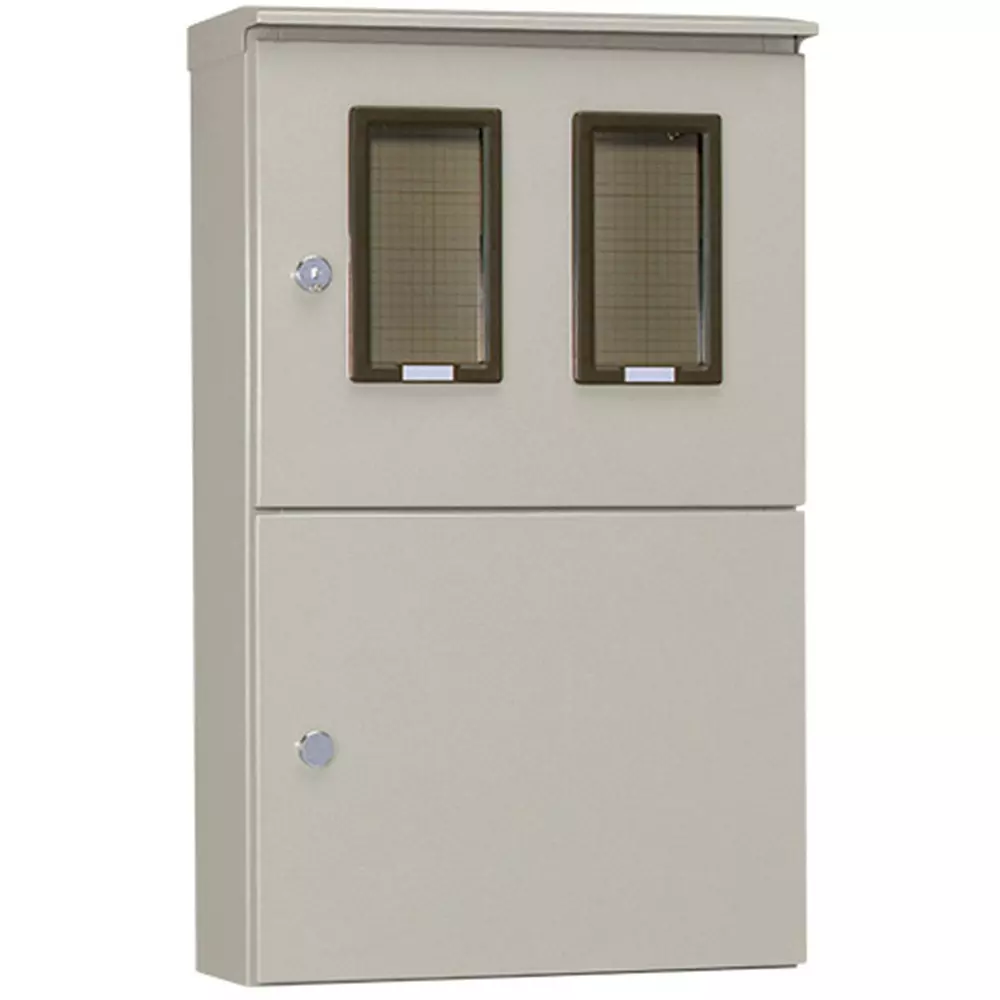

| Type of Product | Intake Instrument Panel Cabinet |
| Country of Origin | Japan |
Type |
OMS-B |
Model No |
OMS-44BC |
Type of Product |
Intake Instrument Panel Cabinet |
Country of Origin |
Japan |
Material |
Iron |
Door Type |
Two-stage door |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44657882 |
Import Country |
Direct Import from Japan |
Space |
All electric power service inward direction (excluding Tokyo Electric Power Company, Chubu Electric Power Company, and other areas where reinforced weatherproof power meters are used) [WHM single (3) phase 3 wire system 120A]x2 [ELB 3P 200A]x2 [WHM single phase 2 Wire system 30A]x1 [ELB 2P 30A]x1 Time switchx1 TEPCO service area, Chubu Electric power service area, other areas where reinforced weather-resistant power meters are used [WHM single (3) phase 3-wire system 120A]x2 [ELB 3P 200A]x2 [WHM single-phase two-wire system 30A]x1 [ELB 2P 30A]x1 time switchx1 |
Paint Color |
Cream painting (2.5Y9 / 1) |
Mass (Kg) |
50 |
Outer Dimensions (mm) |
Vertical: 1130 |
Handle |
Upper door key handle with seal (H-26N) Lower door key handle (H-24N) Handle (H-28) |
RoHS Directive |
Correspondence |
Thickness (mm) |
Door, body: 1.6 |
Mounting Board |
Wooden board (instrument part 25 mm, switch part 15 mm) |
Dimensions (W x H x D) |
1100x700x200 mm |
