| Model No | RAM25-75AC |
| Protection Class | IP54 |

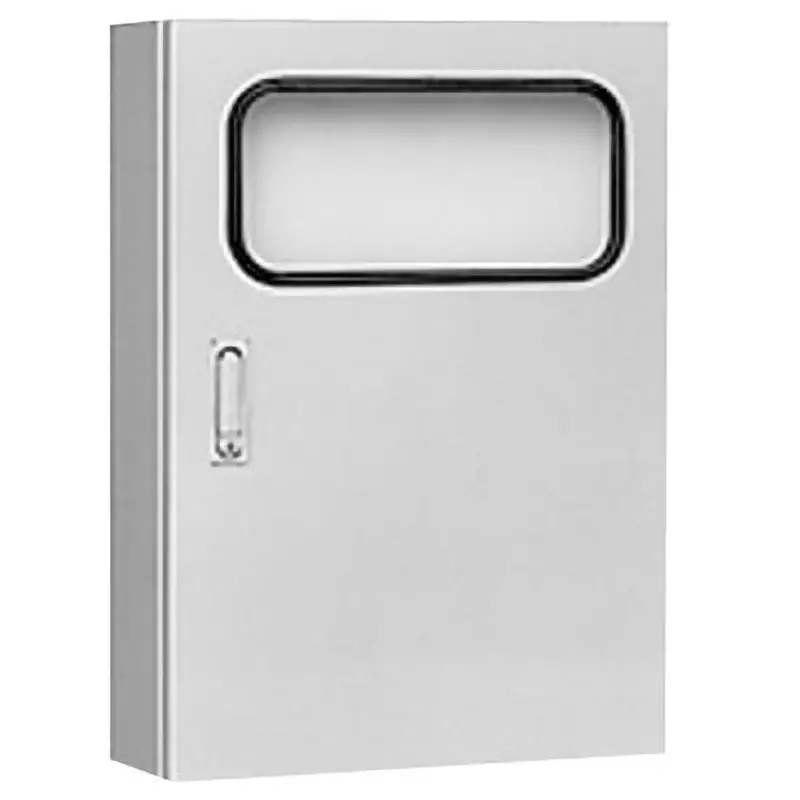

| Type of Product | RAM Control Panel Cabinet |
| Country of Origin | Japan |
Model No |
RAM25-75AC |
Protection Class |
IP54 |
Type of Product |
RAM Control Panel Cabinet |
Country of Origin |
Japan |
Material |
Iron |
Specifications |
Drainage structure dustproof, with waterproof packing |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44623257 |
Import Country |
Direct Import from Japan |
Paint Color |
Cream painting (2.5Y9 / 1) |
Mass (Kg) |
27.5 |
Handle |
Waterproof flat handle (H-85) (Key No. N200) |
Material (Circuit Board) |
2.3 mm iron |
RoHS Directive |
Correspondence |
Thickness (mm) |
Door: 1.6 Body: 1.6 Meter panel: 1.6 |
Door Opening / Closing Pattern |
One door |
Installation Location |
Indoor and outdoor use |
Board Dimensions (width W x height H) (mm) |
620x420 |
Dimension I (mm) |
380 |
Dimension H (Φmm) |
580 |
Dimension M |
415 mm |
Dimension P |
556 mm |
Dimension Q (mm) |
127 |
Dimension n (mm) |
145 |
Dimension G1 (mm) |
156 |
Dimension F1 |
605 mm |
