| Type | Drainage tank full water alarm (alarm non-voltage a contact output) |
| Model No | OG2-D-55HA |
| Protection Class | IP44 |

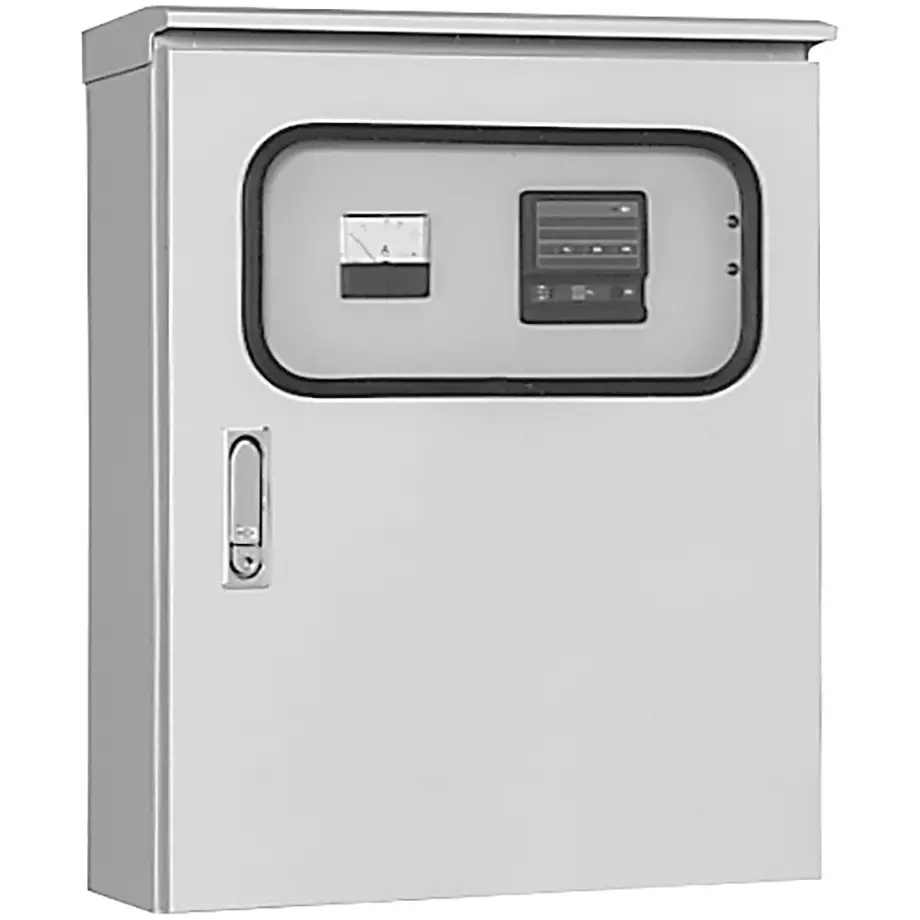

| Type of Product | Standard Control Panel |
Type |
Drainage tank full water alarm (alarm non-voltage a contact output) |
Model No |
OG2-D-55HA |
Protection Class |
IP44 |
Type of Product |
Standard Control Panel |
Voltage |
200 V (Three-Phase Three-Wire System) |
Country of Origin |
Japan |
Circuit Type |
MCB 3P 100A+(MCB 3P 75A+MS)x2 Thermal relay (18～26A) |
Specifications |
G2N, GL, RLx2, OL |
Width (mm) |
500 |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Switch Type |
Circuit Breaker + Thermal Relay |
Monotaro ID |
12620127 |
Import Country |
Direct Import from Japan |
Depth (mm) |
200 |
Height (mm) |
1000 |
External dimensions (mm) |
1030 |
Color (Munsell value) |
Light beige paint (5Y7 / 1) |
Surface Treatment |
Powder Coating |
Motor Capacity (kW) |
5.5 |
Classification |
Pump control panel/automatic alternating simultaneous operation |
Applicable Place |
For outdoor use |
