| Type | Drainage tank full/low water alarm (alarm non-voltage A contact output) |
| Model No | OG3-D-22EA |
| Protection Class | IP44 |

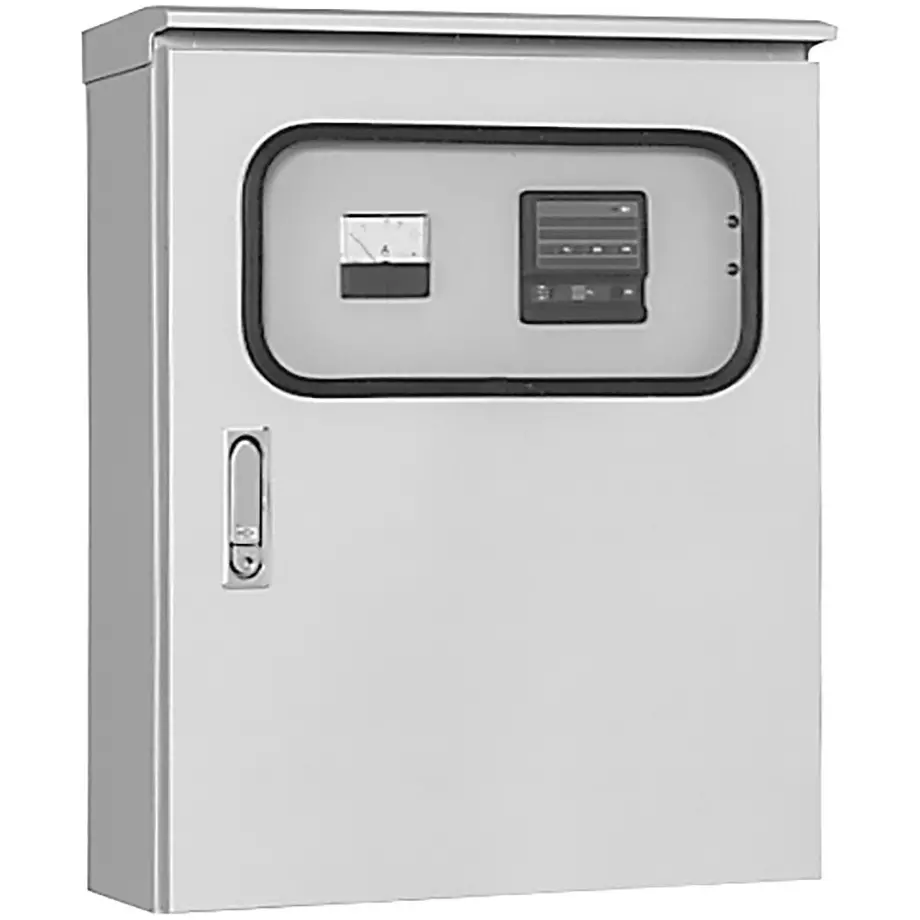

| Type of Product | Standard Control Panel |
Type |
Drainage tank full/low water alarm (alarm non-voltage A contact output) |
Model No |
OG3-D-22EA |
Protection Class |
IP44 |
Type of Product |
Standard Control Panel |
Voltage |
200 V (Three-Phase Three-Wire System) |
Country of Origin |
Japan |
Circuit Type |
ELB 3P 40A+(MCB 3P 40A+MS)x2 Thermal relays (7 to 11A) |
Specifications |
G3N, GL, RLx2, OLx2 |
Width (mm) |
500 |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Switch Type |
Circuit Breaker + Thermal Relay |
Monotaro ID |
12620355 |
Import Country |
Direct Import from Japan |
Depth (mm) |
200 |
Height (mm) |
800 |
External dimensions (mm) |
830 |
Color (Munsell value) |
Light beige paint (5Y7 / 1) |
Cabinet Type |
ORM20-58A |
Surface Treatment |
Powder Coating |
Motor Capacity (kW) |
2.2000000000000002 |
Classification |
Pump control panel/automatic alternating simultaneous operation |
Applicable Place |
For outdoor use |
