| Type | General-purpose type |

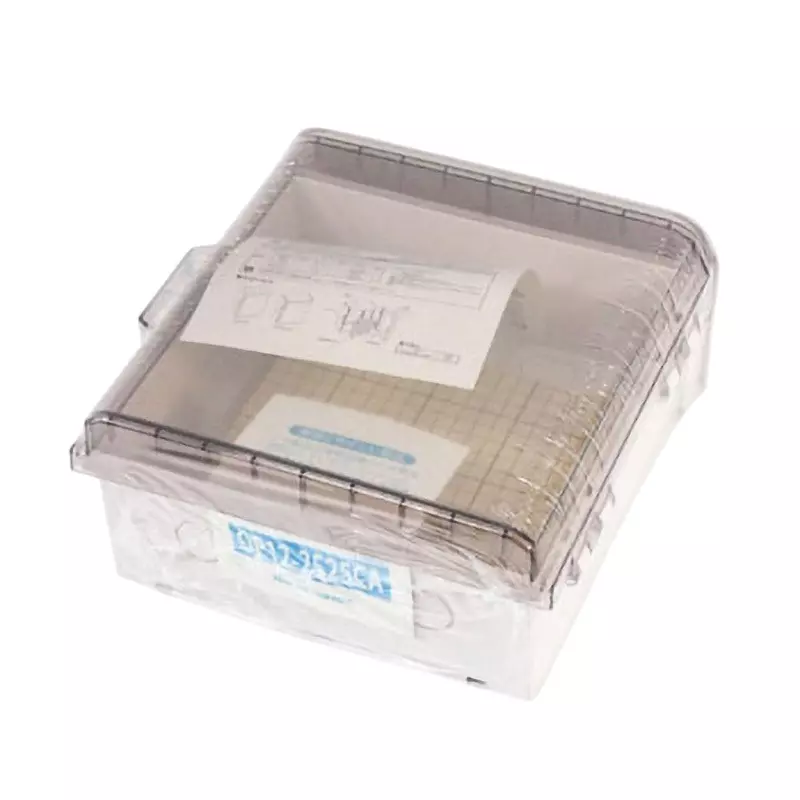

| Model No | OP12-2525CA |
| Protection Class | IP44 |
| Color | White gray color (5YR8.5 / 0.5) |
Type |
General-purpose type |
Model No |
OP12-2525CA |
Protection Class |
IP44 |
Color |
White gray color (5YR8.5 / 0.5) |
Type of Product |
Plastic Box |
Dimension |
250x250x120 |
Standard |
CA(CA200, CA-G04) |
Country of Origin |
Japan |
Material |
Body and roof: ABS resin |
Door Type |
One door |
Specifications |
Roofed, transparent door, low formaldehyde, machined holes |
Door Material |
acrylic resin |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
26233367 |
Import Country |
Direct Import from Japan |
Depth (mm) |
90 |
Mass (Kg) |
1 |
External dimensions (mm) |
264 |
RoHS Directive |
Correspondence |
Circuit Board Dimensions, Length x Width (mm) |
160x190 |
Installation Location |
For outdoor use |
Mounting Board |
Wooden board (9mm) |
Overall Height (mm) |
264 |
Body Color |
White gray color (5YR8.5 / 0.5) |
Door Color |
Light smoke color |
