| Type | Front output type |
| Model No | RD86-1E2CF-A2-N223 |
| Rated Current (A) | 20 |

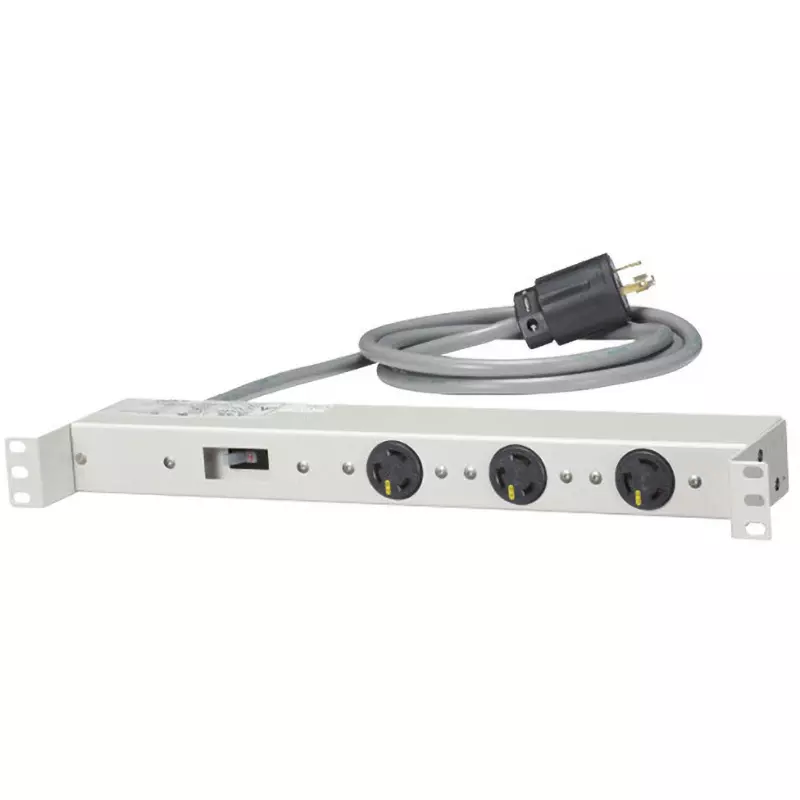

| Type of Product | Power Subrack |
Type |
Front output type |
Model No |
RD86-1E2CF-A2-N223 |
Rated Current (A) |
20 |
Type of Product |
Power Subrack |
Part No |
1U(U=44.45) |
Standard |
PSE, EIA (19 inches) |
Country of Origin |
Japan |
Material |
Iron |
Included Components |
No screws included |
Output |
L6-20x3(NEMA) |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
26220426 |
Import Country |
Direct Import from Japan |
Chip Breaker |
CB32X 2P 20A |
Paint Color |
Pale White (10YR8.5 / 0.5) |
Mass (Kg) |
3 |
Outer Dimensions |
482.5 mm |
Outer Dimension H (mm) |
44 |
Rated Voltage (V) |
200 |
Outer Dimension d (mm) |
110 |
Input |
2P E with 20A (NEMA L6-20) (power plug cable) (VCT 2.5m) |
