Ships within 25 days
View
View
View
View
| Model No | B16-518 |
| Protection Class | IP2XD |

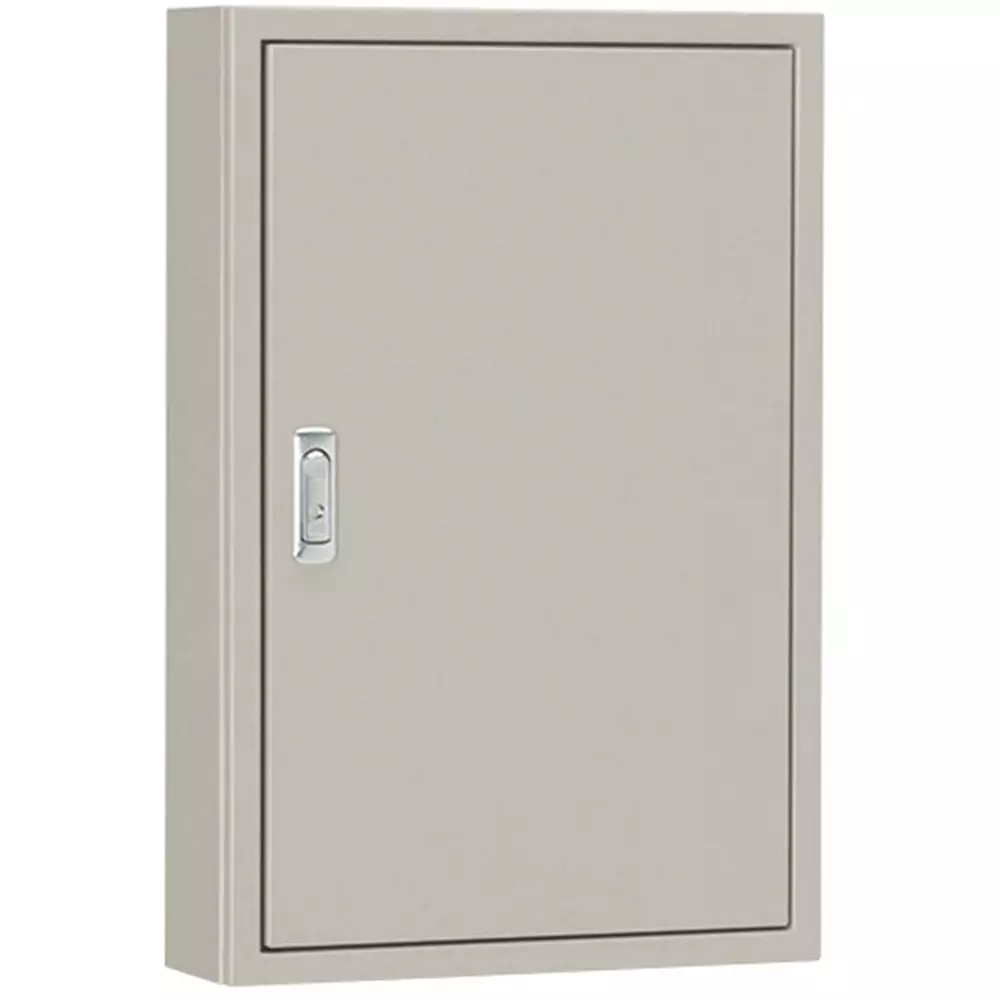

| Type of Product | B Panel Cabinet Exposed Type |
| Country of Origin | Japan |
Model No |
B16-518 |
Protection Class |
IP2XD |
Type of Product |
B Panel Cabinet Exposed Type |
Country of Origin |
Japan |
Material |
Iron |
Specifications |
Exposure type |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44602792 |
Import Country |
Direct Import from Japan |
Paint Color |
Light beige (5Y7 / 1) |
Mass (Kg) |
55.7 |
Handle |
Flat handle (key No. N200) Medium (H-12AN) |
Material (Circuit Board) |
Wooden 15 mm |
RoHS Directive |
Correspondence |
Effective Depth (mm) |
128 |
Thickness (mm) |
Body: 2.3 Door: 2.3 Front frame: 2.3 |
Door Dimensions, Height x Width (mm) |
453x1753 mm |
Door Opening / Closing Pattern |
One door |
Installation Location |
For indoor use |
Board Dimensions (width W x height H) (mm) |
420x1720 |
Dimension I (mm) |
1680 |
Dimension H (Φmm) |
380 |
Dimension M |
63.5 mm |
Dimension O |
63.5 mm |
Dimension P |
49 mm |
Dimensions (W x H x D) |
500x1800x160 mm |
