| Model No | RAV20-68 |
| Protection Class | IP54 |

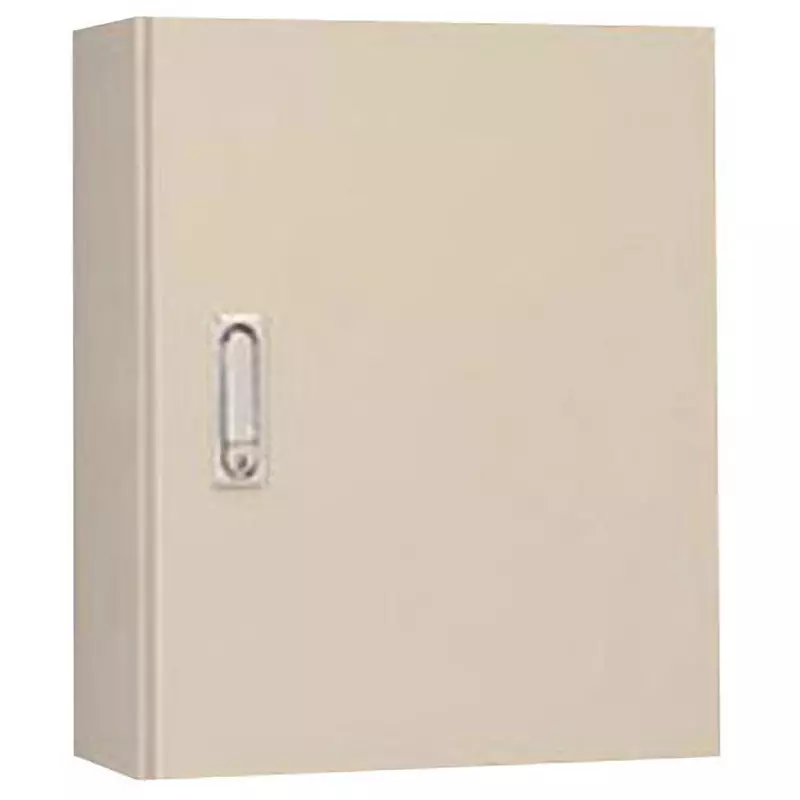

| Type of Product | RAV Control Panel Cabinet |
| Country of Origin | Japan |
Model No |
RAV20-68 |
Protection Class |
IP54 |
Type of Product |
RAV Control Panel Cabinet |
Country of Origin |
Japan |
Specifications |
Drainage structure dustproof, with waterproof packing |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44623503 |
Import Country |
Direct Import from Japan |
Paint Color |
Light beige (5Y7 / 1) |
Mass (Kg) |
37.9 |
Handle |
Waterproof flat handle (H-85) (Key No. N200) |
Material (Circuit Board) |
Iron substrate 2.3 mm |
Dimension L (mm) |
440 |
RoHS Directive |
Correspondence |
Effective Depth (mm) |
180 |
Thickness (mm) |
Door: 2.3 Body: 2.3 |
Door Opening / Closing Pattern |
One door |
Installation Location |
Indoor and outdoor use |
Board Dimensions (width W x height H) (mm) |
520x720 |
Dimension I (mm) |
680 |
Dimension H (Φmm) |
480 |
Dimension K |
675 mm |
Dimensions (W x H x D) |
600x800x200 mm |
Handle Position E (mm) |
397 |
