| Model No | TE8-23 |
| Protection Class | IP3X |

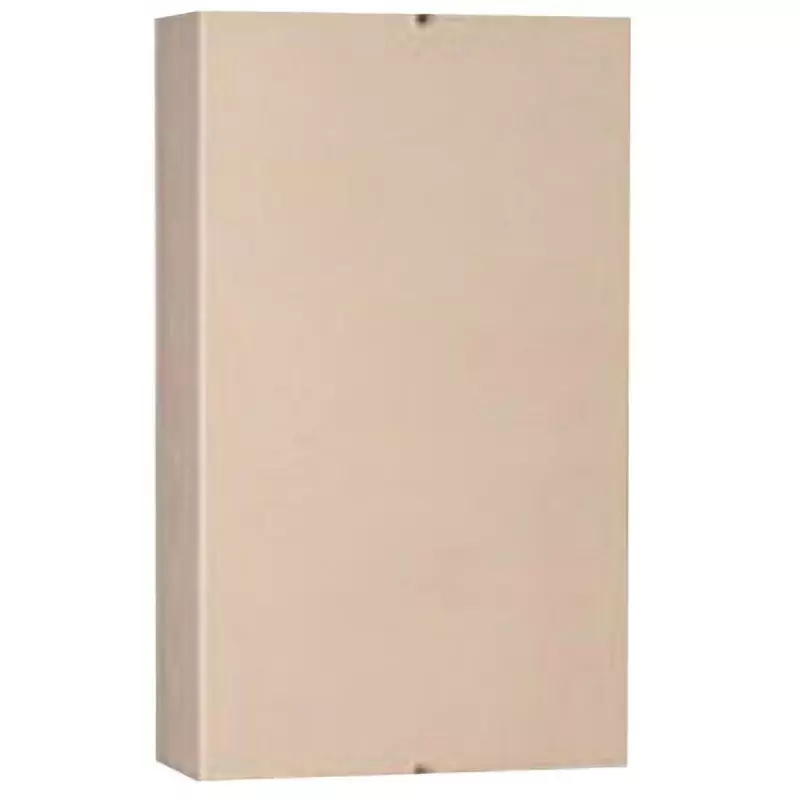

| Type of Product | TE Terminal Box |
| Standard | CA(CA-G04) |
Model No |
TE8-23 |
Protection Class |
IP3X |
Type of Product |
TE Terminal Box |
Standard |
CA(CA-G04) |
Country of Origin |
Japan |
Material |
Iron |
Door Type |
Cover: Screw fastening |
Specifications |
Laser Drilling |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44634317 |
Import Country |
Direct Import from Japan |
Depth (mm) |
66 |
Paint Color |
Light beige paint (5Y7/1) LB color (Nippon Paint L25-70B) |
Mass (Kg) |
2.7 |
External Dimensions (width x depth x height) (mm) |
200x300x80 |
RoHS Directive |
Correspondence |
Circuit Board Dimensions, Length x Width (mm) |
280x190 |
Thickness (mm) |
Cover: 1.2, Body: 1.2 |
Installation Location |
For indoor use |
Board Dimensions (width W x height H) (mm) |
190x280 |
Mounting Board |
Iron base plate (molten zinc-plated steel plate) (no grid scale) (1.6 mm) |
Dimensions (W x H x D) |
200x300x80 mm |
