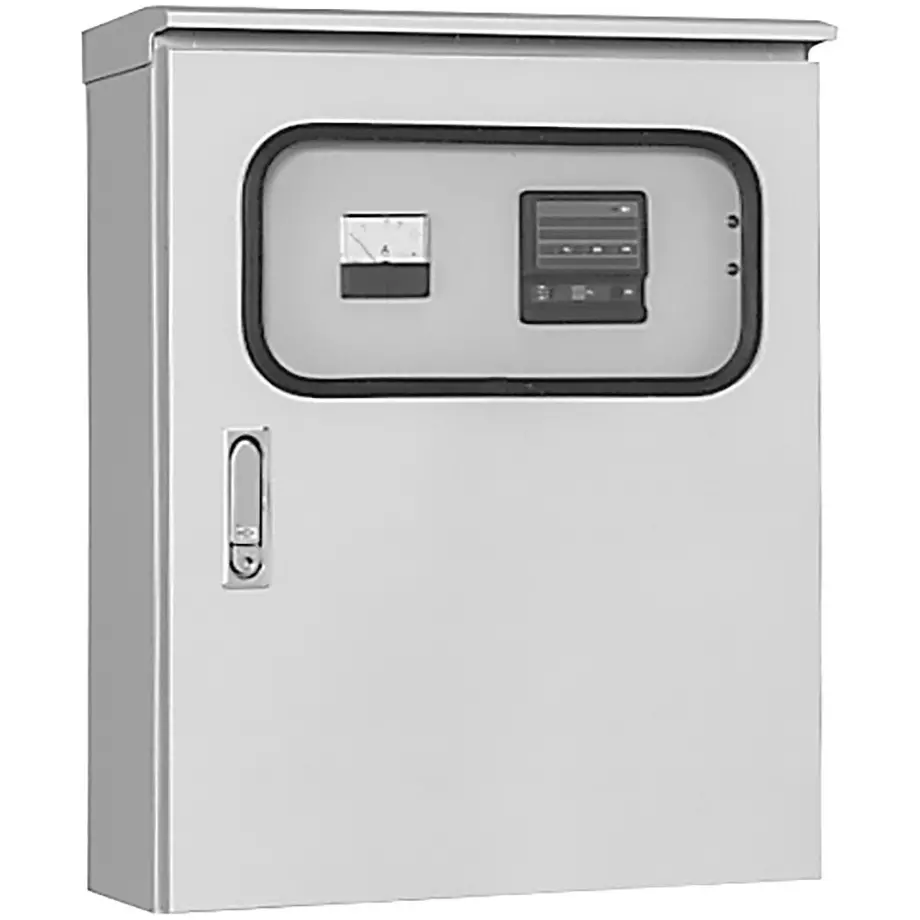

| Type | External contact operation circuit (COS) (external operation voltage: AC200V) |
| Model No | OGC-07EA |
| Protection Class | IP44 |
| Type of Product | Standard Control Panel |
Type |
External contact operation circuit (COS) (external operation voltage: AC200V) |
Model No |
OGC-07EA |
Protection Class |
IP44 |
Type of Product |
Standard Control Panel |
Voltage |
200 V (Three-Phase Three-Wire System) |
Country of Origin |
Japan |
Circuit Type |
ELB 3P 15A+MS Thermal Relay (2.8 to 4.2A) |
Specifications |
COS (Test/Stop/Automatic), GL, RL |
Width (mm) |
400 |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Switch Type |
Circuit Breaker + Thermal Relay |
Monotaro ID |
12615017 |
Import Country |
Direct Import from Japan |
Depth (mm) |
200 |
Height (mm) |
500 |
External dimensions (mm) |
530 |
Color (Munsell value) |
Light beige paint (5Y7 / 1) |
Cabinet Type |
ORM20-45A |
Surface Treatment |
Powder Coating |
Motor Capacity (kW) |
0.75 |
Classification |
Direct start board |
Applicable Place |
For outdoor use |
