| Model No | B30-87-2LS |
| Protection Class | IP2XC |

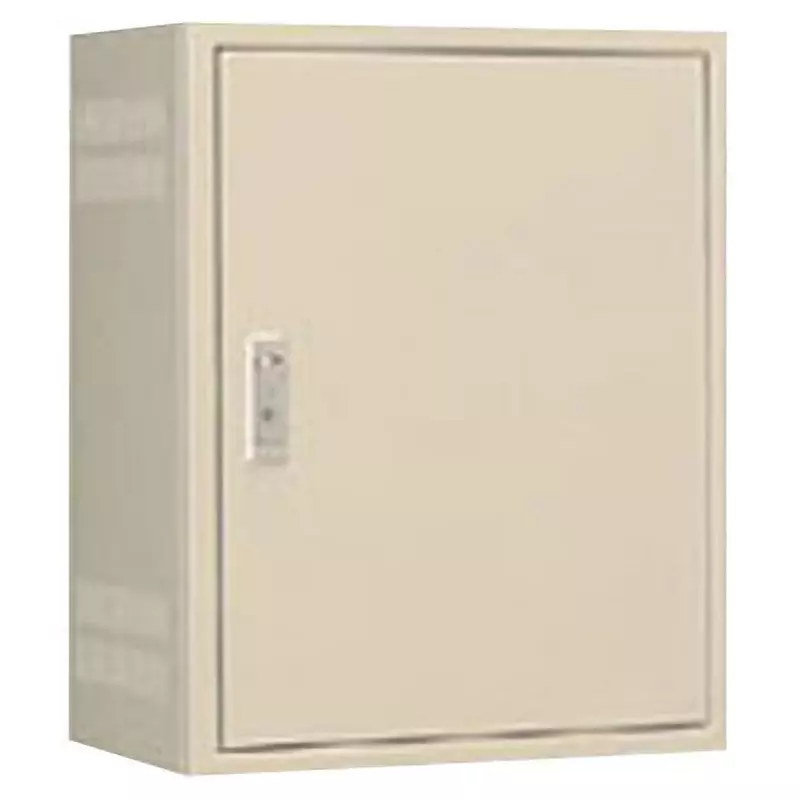

| Type of Product | B-LS Thermal Equipment Storage Cabinet |
| Standard | CA(CA100, CA-G04) |
Model No |
B30-87-2LS |
Protection Class |
IP2XC |
Type of Product |
B-LS Thermal Equipment Storage Cabinet |
Standard |
CA(CA100, CA-G04) |
Country of Origin |
Japan |
Material |
Iron |
Door Type |
Double door |
Specifications |
No door ventilation type, low formaldehyde |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44648931 |
Import Country |
Direct Import from Japan |
Depth (mm) |
268 |
Paint Color |
Light Beige Paint (5Y7/1) LB color (Nippon Paint L25-70B) |
Mass (Kg) |
35.1 |
Handle |
Flat handle (Key No. N200: 1 piece), small (H-11AN) |
RoHS Directive |
Correspondence |
Circuit Board Dimensions, Length x Width (mm) |
620x720 |
Thickness (mm) |
Door: 1.6, Body: 1.6, Front frame: 1.6 |
Installation Location |
For indoor use |
Board Dimensions (width W x height H) (mm) |
720x620 |
Dimension P |
237.4 mm |
Shape Drawing Number |
C |
Dimension Q (mm) |
23.8 |
Performance |
Coating: Salt spray 1000h, acid and alkali resistance 120h |
Mounting Board |
Wooden board (15mm) |
Dimensions (W x H x D) |
800x700x300 mm |
