| Model No | MS-21B |
| Protection Class | IP44 |

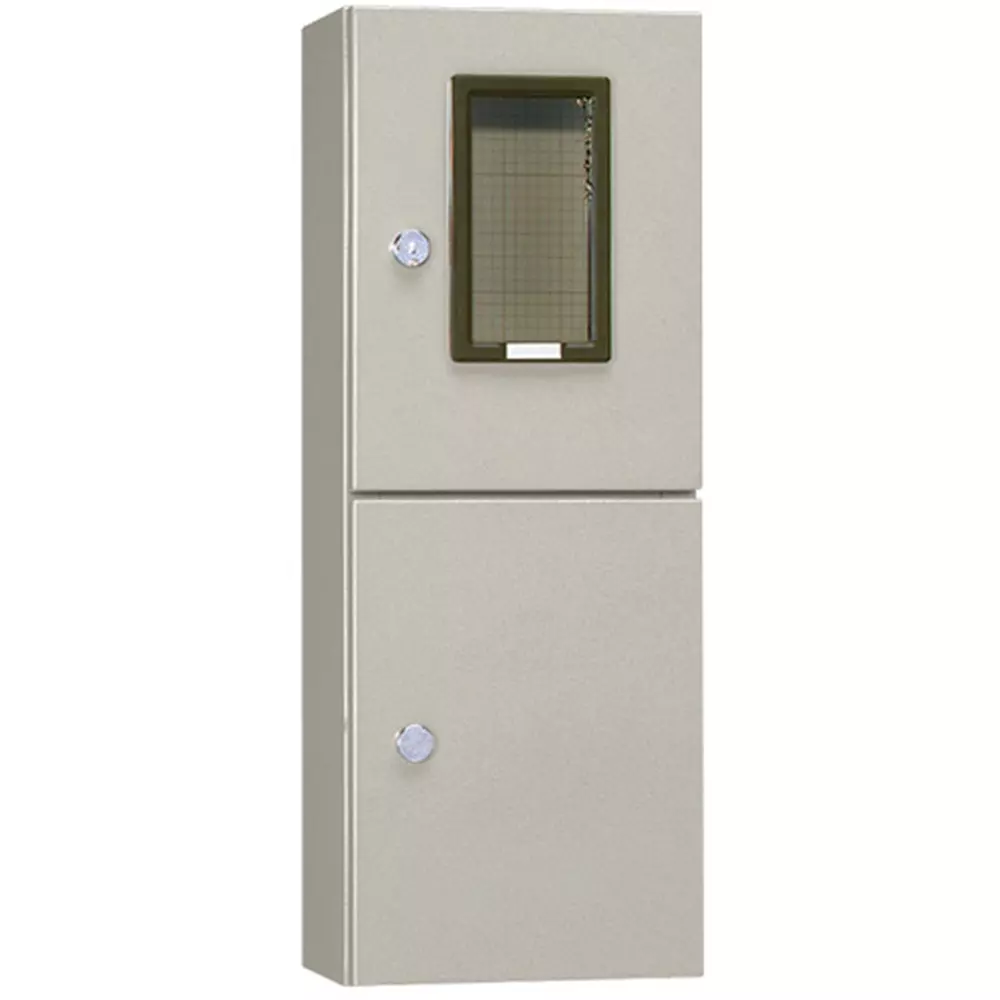

| Type of Product | MS-B Intake Instrument Panel Cabinet |
| Country of Origin | Japan |
Model No |
MS-21B |
Protection Class |
IP44 |
Type of Product |
MS-B Intake Instrument Panel Cabinet |
Country of Origin |
Japan |
Material |
Iron |
Door Type |
Two-stage door |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44656473 |
Import Country |
Direct Import from Japan |
Space |
For all electric power service areas (excluding Tokyo Electric Power Company, Chubu Electric Power Company, and other areas where reinforced weather-resistant power meters are used) [WHM single (3) phase 3-wire system 120A]x2 [ELB 3P 100A]x2 Inward Chubu Electric Power pipe and other areas where reinforced weatherproof type watt-hour meter is used [WHM single (3) phase 3-wire system 30A]x2 [ELB 3P 100A]x2 |
Paint Color |
Light beige (5Y7 / 1) |
Mass (Kg) |
23.1 |
Handle |
Upper door key handle with seal (H-26N) Lower door key handle (H-24N) Handle (H-28) |
External Dimensions (width x depth x height) (mm) |
500x800x200 |
RoHS Directive |
Correspondence |
Thickness (mm) |
Door, body: 1.6 |
Installation Location |
Indoor and outdoor use |
Mounting Board |
Wooden board (instrument part 25 mm, switch part 15 mm) |
