| Model No | STS16-34N |
| Protection Class | IP2XD |

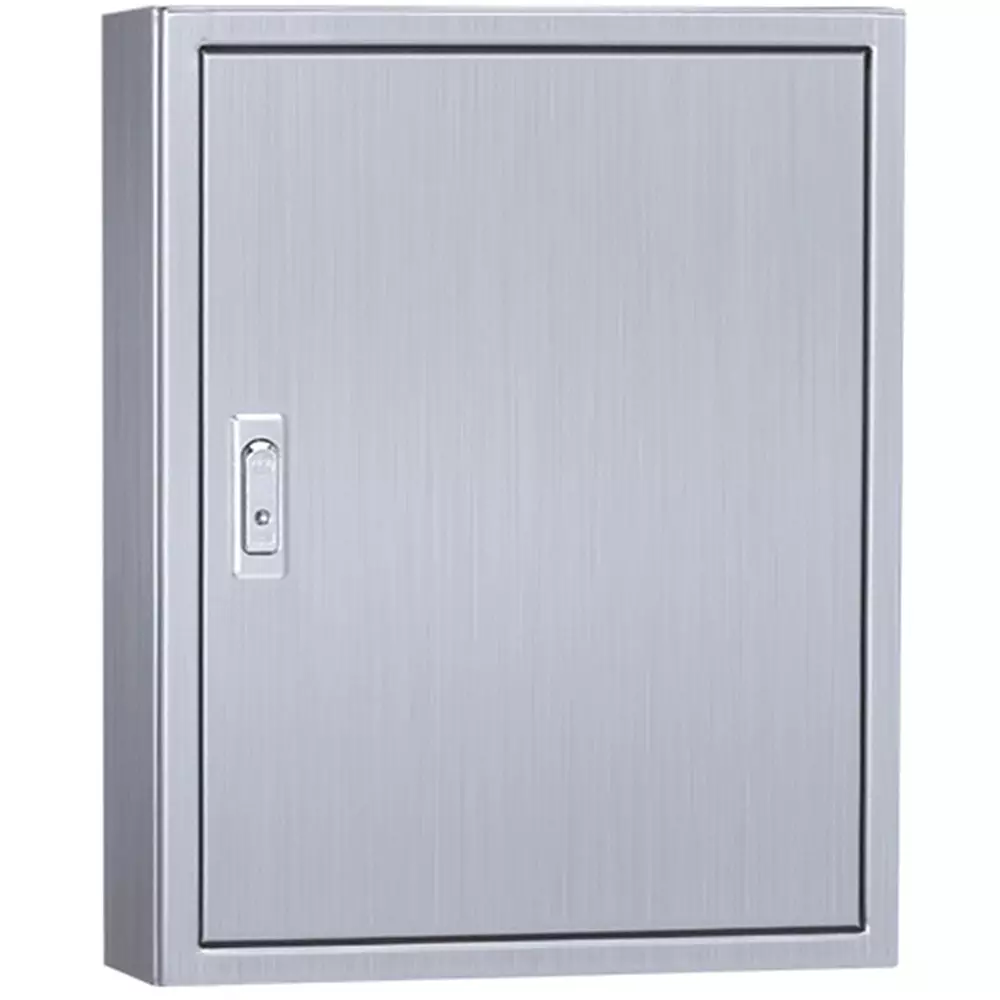

| Type of Product | STB/STS Panel Cabinet Exposed Type |
| Country of Origin | Japan |
Model No |
STS16-34N |
Protection Class |
IP2XD |
Type of Product |
STB/STS Panel Cabinet Exposed Type |
Country of Origin |
Japan |
Material |
Stainless steel (SUS304) |
Door Type |
One door |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44662694 |
Import Country |
Direct Import from Japan |
Paint Color |
Hairline finish (no paint) |
Mass (Kg) |
7.8 |
Handle |
Flat handle small (H-11AN) (Key No.N200) |
Dimension L (mm) |
355 |
RoHS Directive |
Correspondence |
Effective Depth (mm) |
141 |
Thickness (mm) |
Door, body: 1.2 Front frame: 1.5 |
Installation Location |
For indoor use |
Board Dimensions (width W x height H) (mm) |
200x320 |
Dimension I (mm) |
280 |
Dimension H (Φmm) |
180 |
Dimension K |
255 mm |
Mounting Board |
2.3 mm iron |
Dimensions (W x H x D) |
300x400x160 mm |
