| Type | External contact operation circuit (COS) (external operation voltage: AC200V) |
| Model No | RGC-110HA |
| Protection Class | IP44 |

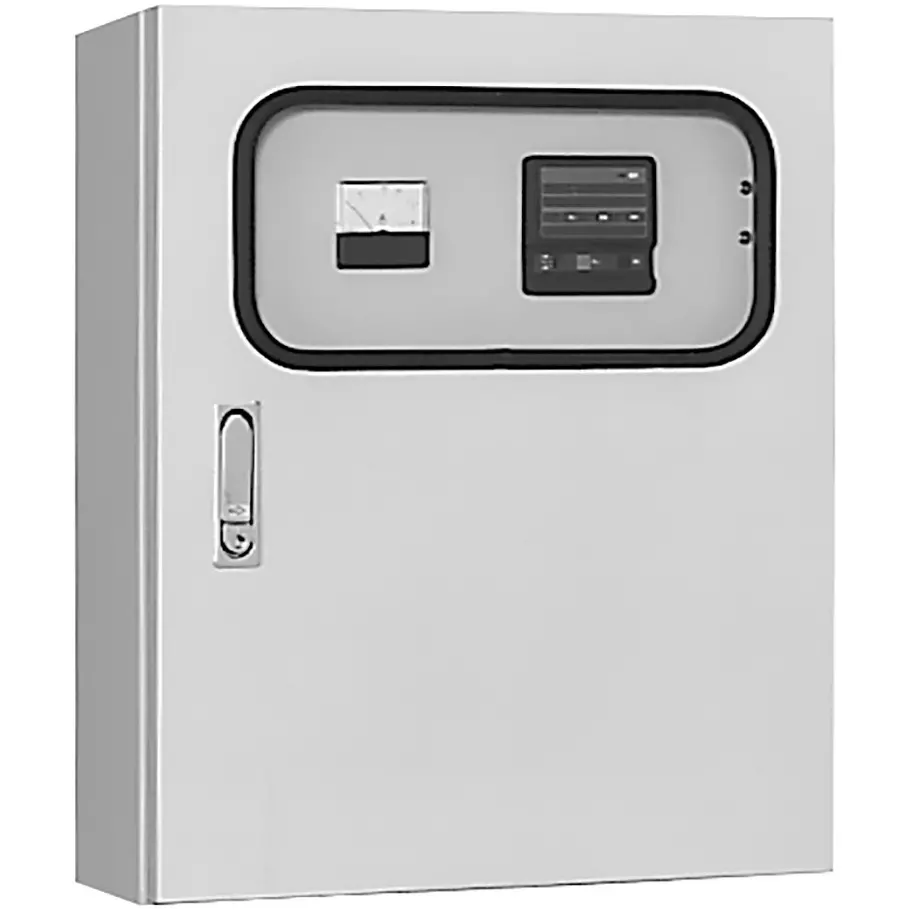

| Type of Product | Standard Control Panel |
Type |
External contact operation circuit (COS) (external operation voltage: AC200V) |
Model No |
RGC-110HA |
Protection Class |
IP44 |
Type of Product |
Standard Control Panel |
Voltage |
200 V (Three-Phase Three-Wire System) |
Country of Origin |
Japan |
Circuit Type |
MCB 3P 125A + MS Thermal Relay (34-50A) |
Specifications |
COS (Test/Stop/Automatic), GL, RL |
Width (mm) |
500 |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Switch Type |
Circuit Breaker + Thermal Relay |
Monotaro ID |
12615358 |
Import Country |
Direct Import from Japan |
Depth (mm) |
200 |
Height (mm) |
800 |
Color (Munsell value) |
Light beige paint (5Y7 / 1) |
Cabinet Type |
RAM20-58A |
Surface Treatment |
Powder Coating |
Motor Capacity (kW) |
11 |
Classification |
Direct start board |
Applicable Place |
Indoor / outdoor use |
