| Model No | CL20-252UC |
| Protection Class | IP65 |

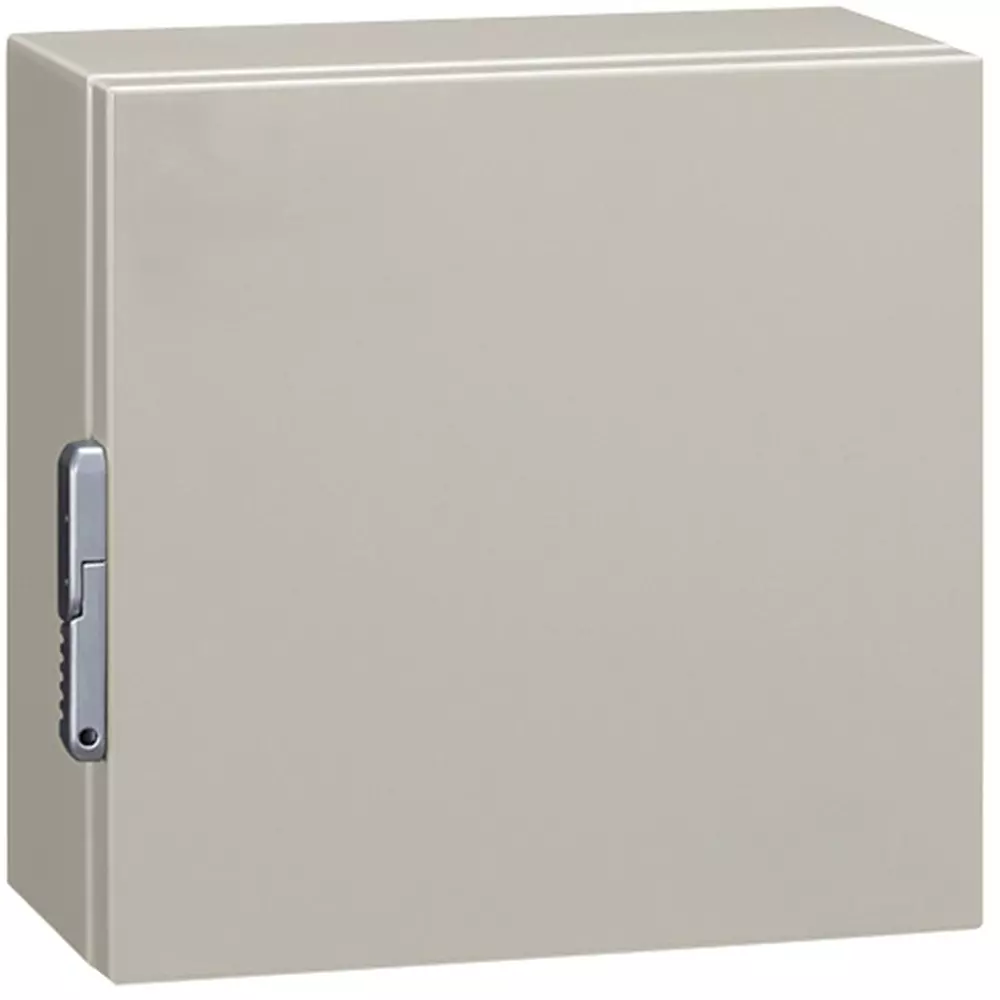

| Type of Product | CL Box International Standard Certified Type |
| Country of Origin | Japan |
Model No |
CL20-252UC |
Protection Class |
IP65 |
Type of Product |
CL Box International Standard Certified Type |
Country of Origin |
Japan |
Material |
Iron |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44630896 |
Import Country |
Direct Import from Japan |
Paint Color |
Cream Painting (2.5Y9 / 1) |
Mass (Kg) |
4.4000000000000004 |
Handle |
IP handle corner type |
Material (Circuit Board) |
Iron (made of galvanized steel sheet) 1.6 mm |
Dimension L (mm) |
198 |
RoHS Directive |
Correspondence |
Effective Depth (mm) |
183 |
Thickness (mm) |
Door: 1.6 Body: 1.6 |
Door Opening / Closing Pattern |
One door |
Installation Location |
For indoor use |
Board Dimensions (width W x height H) (mm) |
200x150 |
Dimension I (mm) |
130 |
Dimension H (Φmm) |
180 |
Dimension K |
248 mm |
Dimensions (W x H x D) |
250x200x200 mm |
