Ships within 25 days
View
View
View
View
| Model No | OR25-46C |
| Protection Class | IP44 |

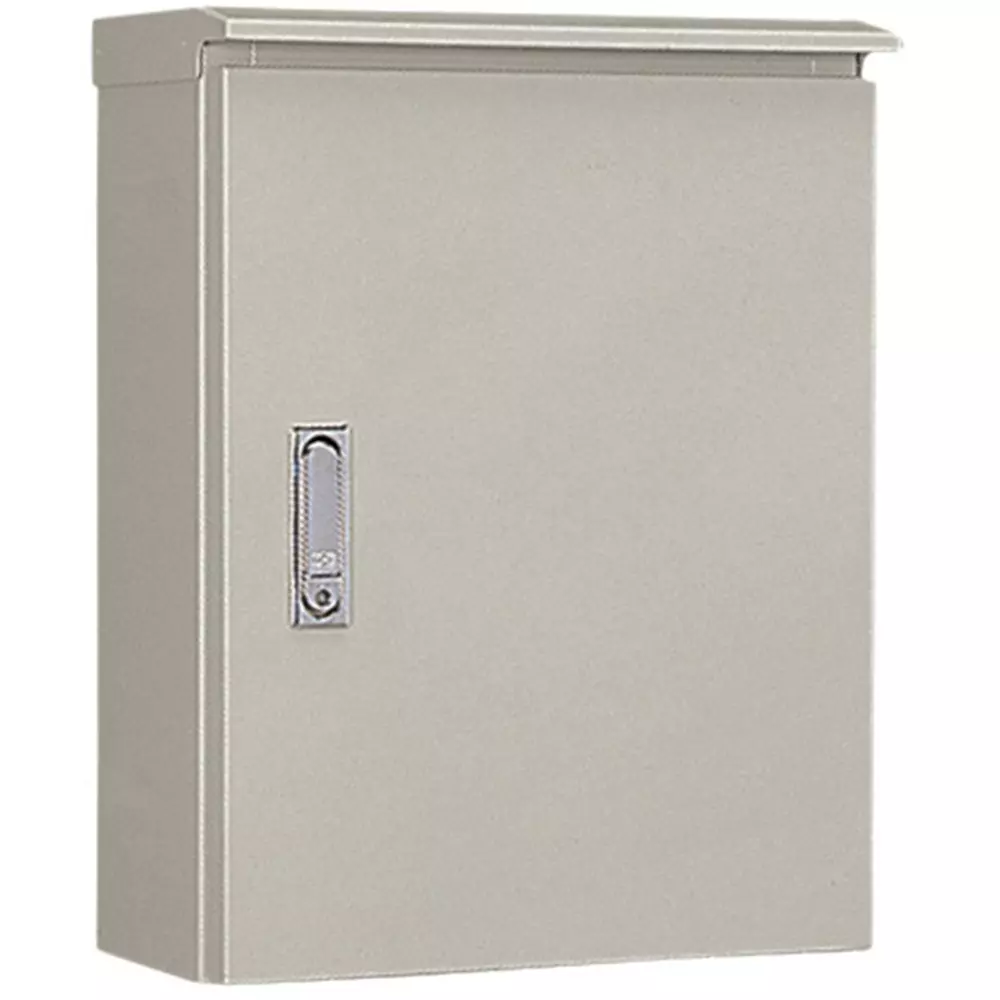

| Type of Product | OR Outdoor Control Panel Cabinet |
| Country of Origin | Japan |
Model No |
OR25-46C |
Protection Class |
IP44 |
Type of Product |
OR Outdoor Control Panel Cabinet |
Country of Origin |
Japan |
Material |
Iron |
Specifications |
Drainage structure dustproof, with waterproof packing |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44611576 |
Import Country |
Direct Import from Japan |
Paint Color |
Cream Painting (2.5Y9 / 1) |
Mass (Kg) |
18.600000000000001 |
Handle |
Waterproof flat handle (H-85) (Key No. N200) |
Material (Circuit Board) |
2.3 mm iron |
RoHS Directive |
Correspondence |
Effective Depth (mm) |
232 |
Thickness (mm) |
Door: 1.6 Body: 1.6 |
Door Opening / Closing Pattern |
One door |
Dimension A1 |
405 mm |
Installation Location |
For outdoor use |
Dimension B1 (mm) |
630 |
Board Dimensions (width W x height H) (mm) |
320x520 |
Dimension I (mm) |
480 |
Dimension C1 (mm) |
272 |
Dimension H (Φmm) |
280 |
Dimensions (W x H x D) |
400x600x250 mm |
Handle Position E (mm) |
297 |
