Ships within 25 days
View
View
View
View
| Model No | RA30-45C |
| Protection Class | IP54 |

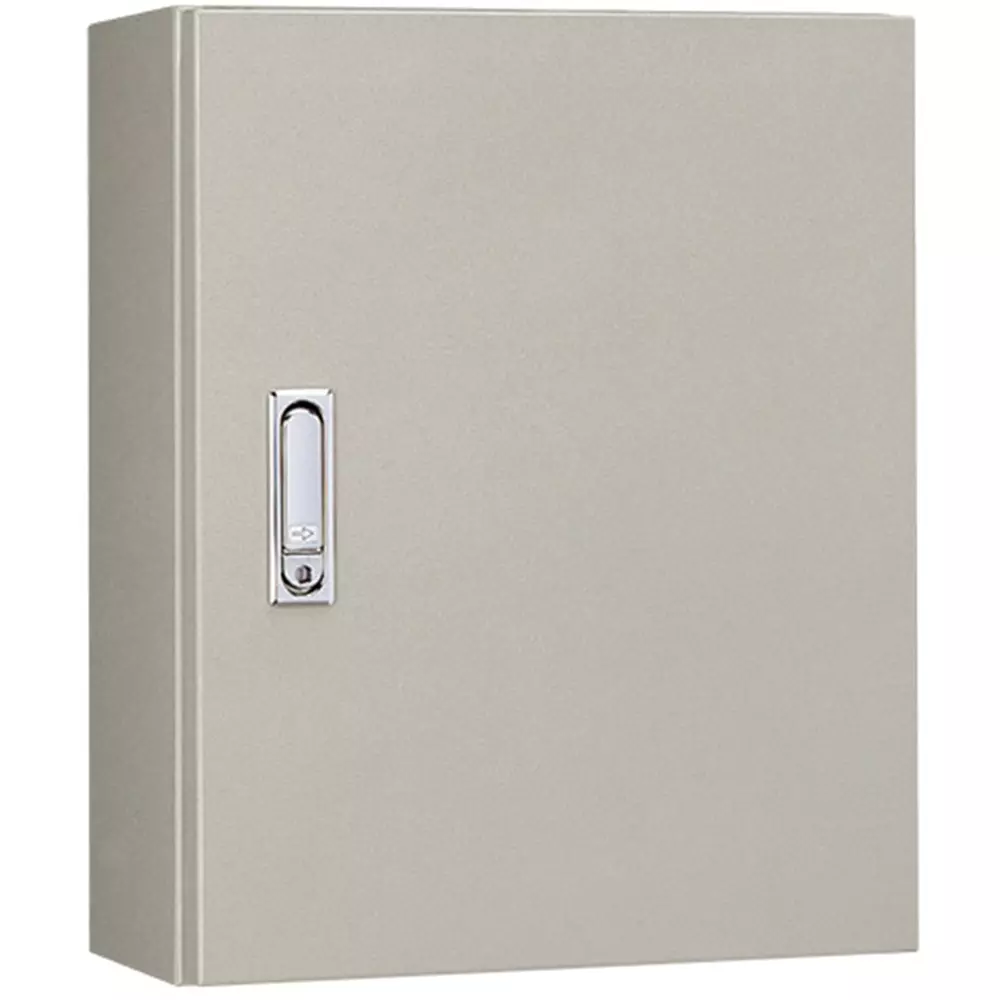

| Type of Product | RA/RAB Control Panel Cabinet |
| Country of Origin | Japan |
Model No |
RA30-45C |
Protection Class |
IP54 |
Type of Product |
RA/RAB Control Panel Cabinet |
Country of Origin |
Japan |
Material |
Iron |
Specifications |
Drainage structure, dustproof and waterproof packing |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44622191 |
Import Country |
Direct Import from Japan |
Depth (mm) |
282 |
Paint Color |
Cream Paint (2.5Y9/1) Cream color (Nippon Paint L22-90B) |
Mass (Kg) |
15.9 |
Handle |
Waterproof flat handle (H-85) (Key No. N200: 1 pc) |
Material (Circuit Board) |
2.3 mm iron |
Dimension L (mm) |
240 |
RoHS Directive |
Correspondence |
Circuit Board Dimensions, Length x Width (mm) |
420x320 |
Thickness (mm) |
Door: 1.6, Body: 1.6 |
Door Opening / Closing Pattern |
One door |
Installation Location |
Indoor / outdoor use |
Board Dimensions (width W x height H) (mm) |
320x420 |
Dimension I (mm) |
380 |
Dimension H (Φmm) |
280 |
Dimension K |
375 mm |
Handle Position E (mm) |
247 |
