Ships within 25 days
View
View
View
View
| Model No | CR40-67 |
| Protection Class | IP55 |

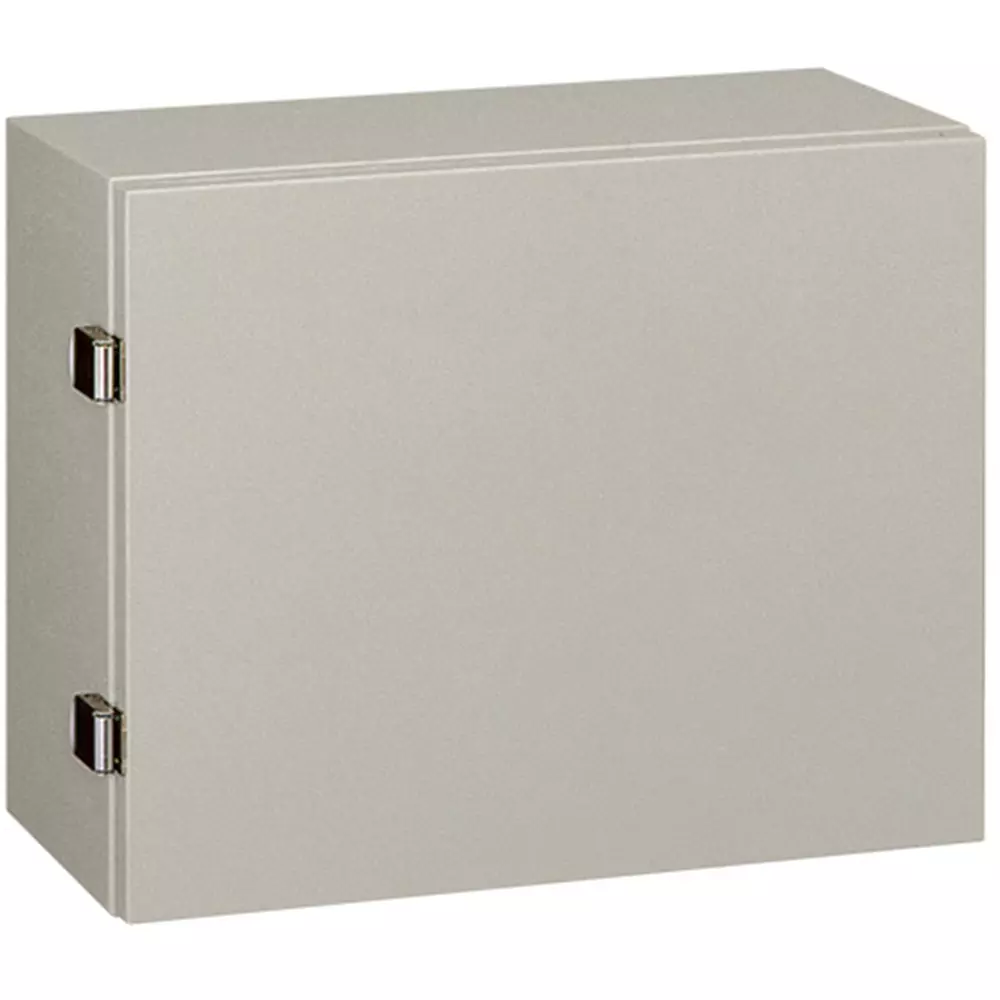

| Type of Product | CR Control Box |
| Country of Origin | Japan |
Model No |
CR40-67 |
Protection Class |
IP55 |
Type of Product |
CR Control Box |
Country of Origin |
Japan |
Material |
Iron |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44633154 |
Import Country |
Direct Import from Japan |
Paint Color |
Light beige (5Y7 / 1) |
Mass (Kg) |
31.9 |
Handle |
Catch clip (stainless steel) |
Material (Circuit Board) |
2.3 mm iron |
Dimension L (mm) |
694 |
RoHS Directive |
Correspondence |
Effective Depth (mm) |
382 |
Thickness (mm) |
Door: 1.6 Body: 1.6 |
Door Opening / Closing Pattern |
One door |
Installation Location |
Indoor and outdoor use |
Board Dimensions (width W x height H) (mm) |
520x620 |
Dimension I (mm) |
580 |
Dimension H (Φmm) |
480 |
Dimension K |
596 mm |
Dimensions (W x H x D) |
600x700x400 mm |
Number of Holes |
22 |
Dimension T |
575 mm |
Dimension R |
500 mm |
