| Model No | SR20-56N |
| Protection Class | IP54 |

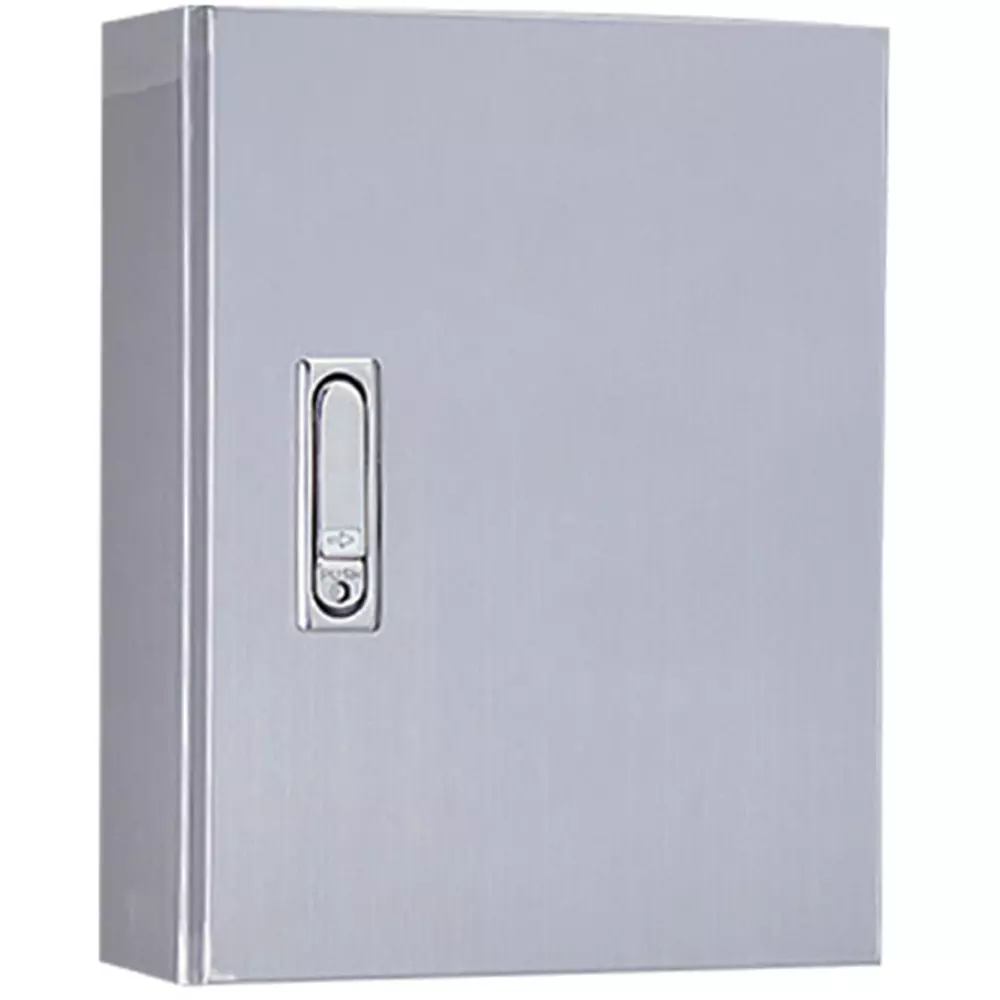

| Type of Product | SR Type Control Panel Cabinet |
| Country of Origin | Japan |
Model No |
SR20-56N |
Protection Class |
IP54 |
Type of Product |
SR Type Control Panel Cabinet |
Country of Origin |
Japan |
Material |
Stainless steel (SUS304) |
Door Type |
One door |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44664995 |
Import Country |
Direct Import from Japan |
Paint Color |
Hairline finish (no paint) |
Mass (Kg) |
17.600000000000001 |
Handle |
Stainless Steel Waterproof Flat Handle (H-85S) (Key No. N200) |
RoHS Directive |
Correspondence |
Effective Depth (mm) |
183 |
Thickness (mm) |
Door, body: 1.5 |
Installation Location |
For indoor use |
Board Dimensions (width W x height H) (mm) |
420x520 |
Dimension I (mm) |
480 |
Dimension H (Φmm) |
380 |
Mounting Board |
2.3 mm iron |
Dimensions (W x H x D) |
500x600x200 mm |
Dimension E (Φmm) |
297 mm |
