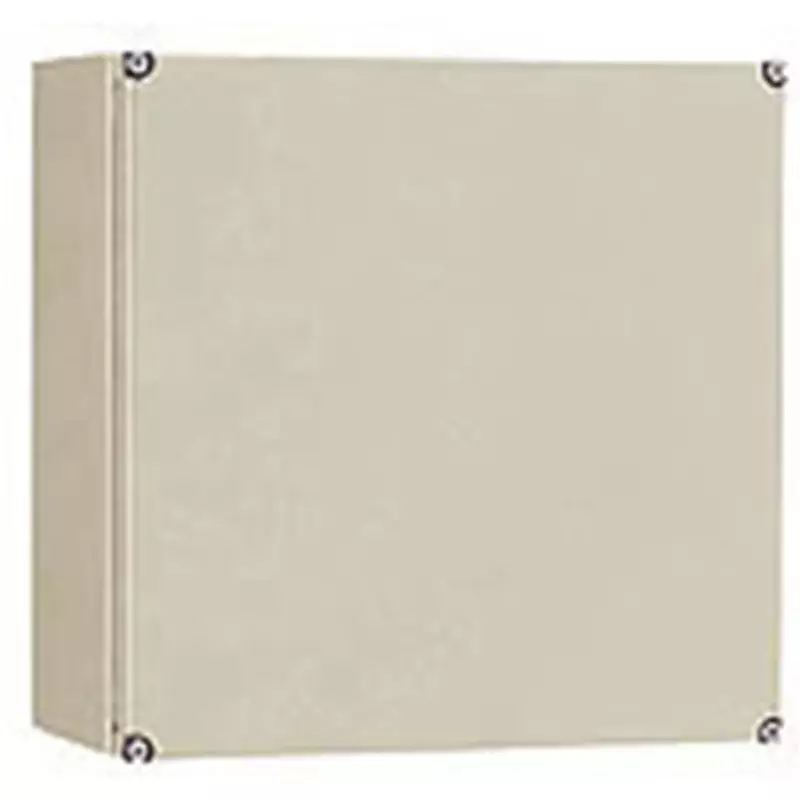

| Model No | CF12-253C |
| Protection Class | IP66 |
| Type of Product | CF Box |
| Country of Origin | Japan |
Model No |
CF12-253C |
Protection Class |
IP66 |
Type of Product |
CF Box |
Country of Origin |
Japan |
Material |
Iron |
Door Type |
Cover, 4-point screw type |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44625567 |
Import Country |
Direct Import from Japan |
Paint Color |
Cream Painting (2.5Y9 / 1) |
Mass (Kg) |
4.7 |
Material (Circuit Board) |
1.6 mm iron |
Dimension L (mm) |
298 |
RoHS Directive |
Correspondence |
Effective Depth (mm) |
103 |
Thickness (mm) |
Cover: 1.6 Body: 1.6 |
Installation Location |
For indoor use |
Board Dimensions (width W x height H) (mm) |
200x250 |
Dimension I (mm) |
230 |
Dimension H (Φmm) |
180 |
Dimension K |
248 mm |
Dimensions (W x H x D) |
250x300x120 mm |
