| Model No | CH20-2535AC |
| Protection Class | IP4X |
| Color | Cream |
| Type of Product | CH-A Type Control Box |
Model No |
CH20-2535AC |
Protection Class |
IP4X |
Color |
Cream |
Type of Product |
CH-A Type Control Box |
Country of Origin |
Japan |
Specifications |
With packing |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
10706927 |
Import Country |
Direct Import from Japan |
Depth (mm) |
183 |
Paint Color |
Cream Painting (2.5Y9 / 1) |
Mass (Kg) |
5.7 |
Handle |
Snap latch (made of stainless steel) |
Wall Thickness (mm) |
(Door) 1.6 / (Body) 1.2 |
Material (Circuit Board) |
Made of iron |
Dimension L (mm) |
347 |
RoHS Directive |
Correspondence |

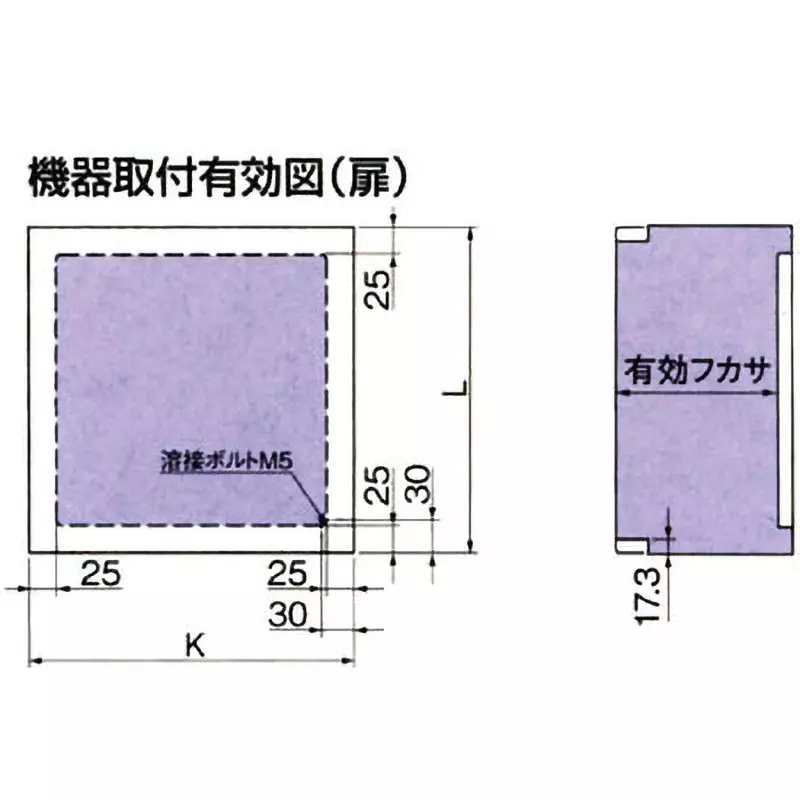

Circuit Board Dimensions, Length x Width (mm) |
300x200 |

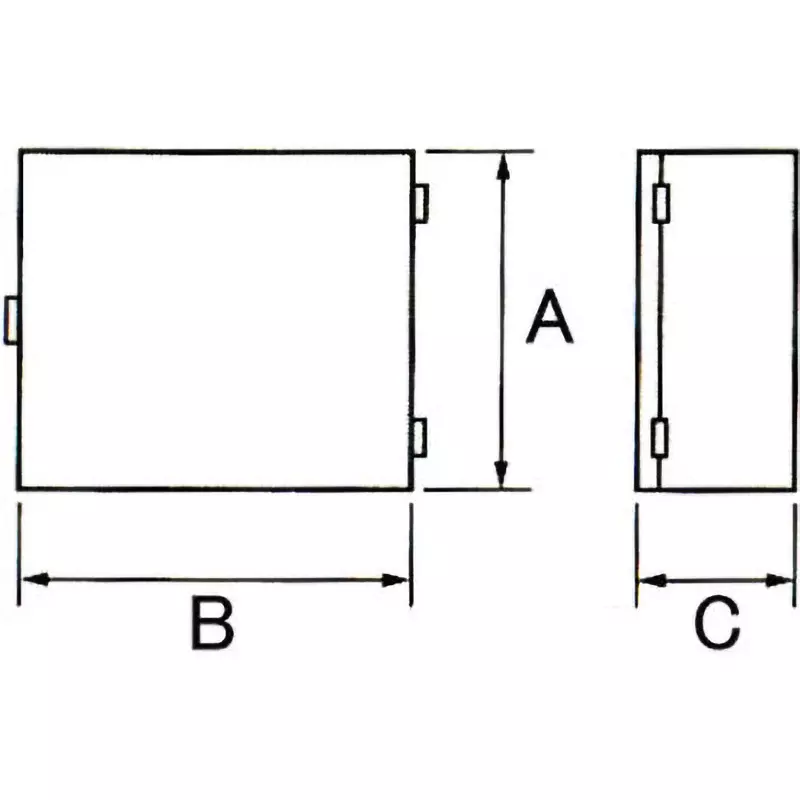

Dimensions, Length L x Width W x Depth D (mm) |
350x250x200 |
Door Opening / Closing Pattern |
One-sided |
Installation Location |
Indoor |
Dimension K |
248 mm |
Painting |
Powder coating |
Box Material |
Iron |
