Ships within 25 days
View
View
View
View
| Model No | ORB16-55C |
| Protection Class | IP44 |

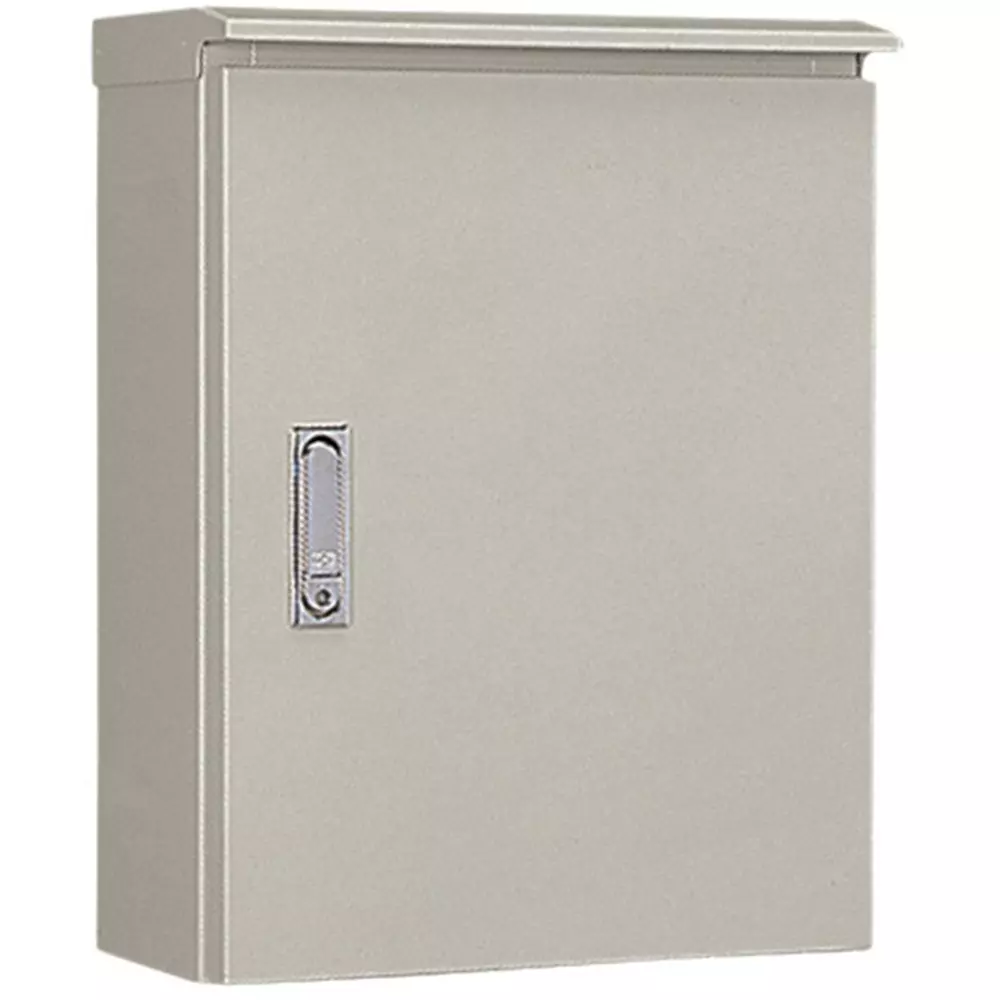

| Type of Product | OR/ORB Outdoor Control Panel Cabinet |
| Country of Origin | Japan |
Model No |
ORB16-55C |
Protection Class |
IP44 |
Type of Product |
OR/ORB Outdoor Control Panel Cabinet |
Country of Origin |
Japan |
Material |
Iron |
Specifications |
Drainage structure dustproof, with waterproof packing |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44614674 |
Import Country |
Direct Import from Japan |
Paint Color |
Cream Painting (2.5Y9 / 1) |
Mass (Kg) |
14.9 |
Handle |
Waterproof flat handle (H-85) (Key No. N200) |
Material (Circuit Board) |
Wooden 15 mm |
RoHS Directive |
Correspondence |
Effective Depth (mm) |
129 |
Thickness (mm) |
Door: 1.6 Body: 1.6 |
Door Opening / Closing Pattern |
One door |
Dimension A1 |
505 mm |
Installation Location |
For outdoor use |
Dimension B1 (mm) |
530 |
Board Dimensions (width W x height H) (mm) |
420x420 |
Dimension I (mm) |
380 |
Dimension C1 (mm) |
182 |
Dimension H (Φmm) |
380 |
Dimensions (W x H x D) |
500x500x160 mm |
Handle Position E (mm) |
247 |
