| Type | Embedded Type |
| Model No | BF14-710-2C |
| Protection Class | IP2XC |

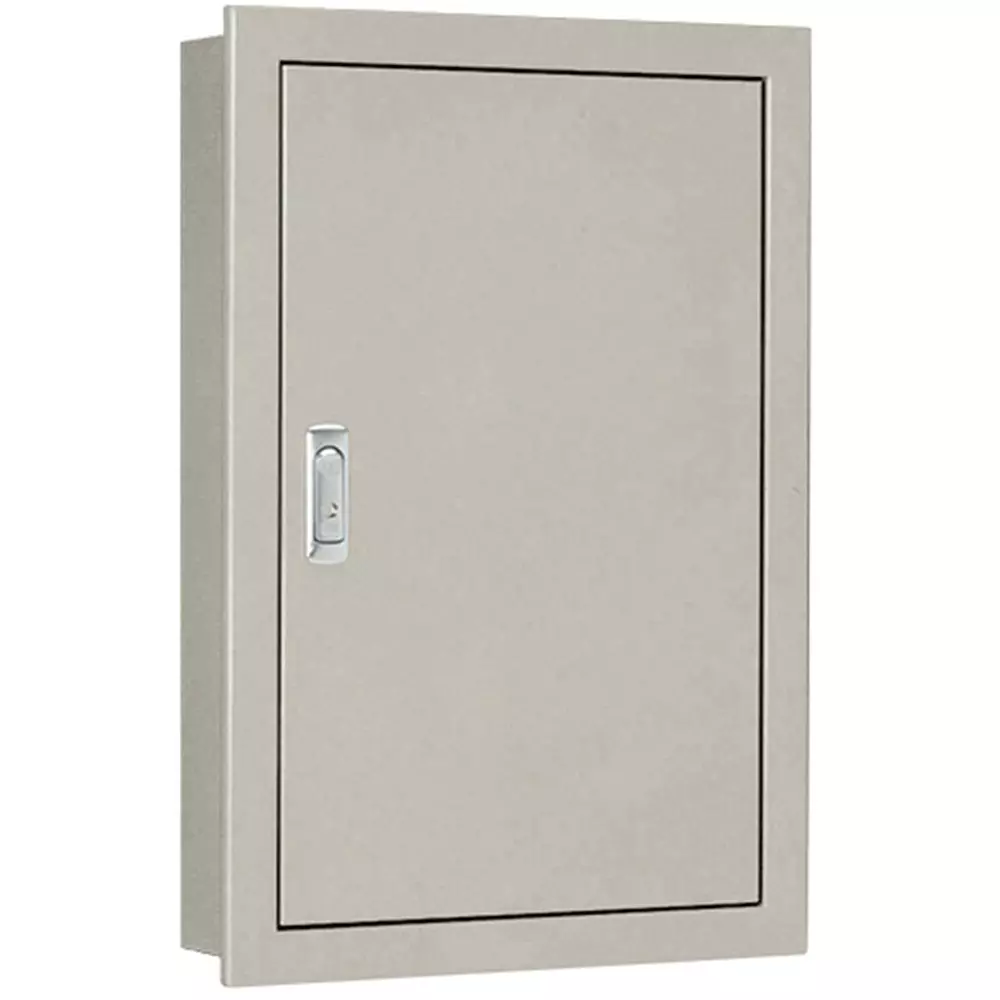

| Type of Product | SF Panel Cabinet Recessed Type |
Type |
Embedded Type |
Model No |
BF14-710-2C |
Protection Class |
IP2XC |
Type of Product |
SF Panel Cabinet Recessed Type |
Country of Origin |
Japan |
Material |
Iron |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44605547 |
Import Country |
Direct Import from Japan |
Paint Color |
Cream Painting (2.5Y9 / 1) |
Mass (Kg) |
36.6 |
Handle |
Flat handle (key No. N200) Small (H-11AN) Vertical dimension 900 mm or less Medium (H-12AN) Vertical dimension 1000 mm or more |
Material (Circuit Board) |
Wooden 15 mm |
RoHS Directive |
Correspondence |
Thickness (mm) |
Door: 1.6 Body: 1.6 Front frame: 1.6 |
Door Dimensions, Height x Width (mm) |
326x954 |
Door Opening / Closing Pattern |
Double door |
Dimension A1 |
730 mm |
Installation Location |
For indoor use |
Dimension B1 (mm) |
1030 |
Board Dimensions (width W x height H) (mm) |
620x920 |
Dimension I (mm) |
880 |
Dimension H (Φmm) |
580 |
Dimension M |
63.5 mm |
Dimension O |
63.5 mm |
Dimension P |
49 mm |
