Ships within 25 days
View
View
View
View
| Model No | CHB20-35A |
| Protection Class | IP4X |
| Color | light beige |

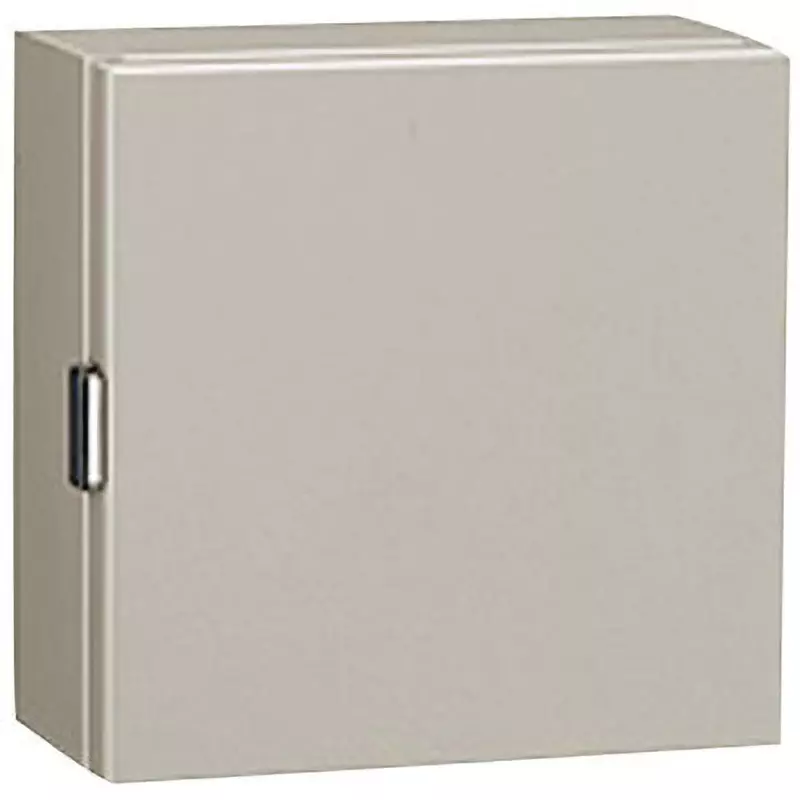

| Type of Product | CHB-A Control Box |
Model No |
CHB20-35A |
Protection Class |
IP4X |
Color |
light beige |
Type of Product |
CHB-A Control Box |
Country of Origin |
Japan |
Specifications |
With packing |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
10708031 |
Import Country |
Direct Import from Japan |
Depth (mm) |
170 |
Paint Color |
Light beige paint (5Y7 / 1) |
Mass (Kg) |
8.1999999999999993 |
Handle |
Snap latch (made of stainless steel) |
Wall Thickness (mm) |
(Door) 1.6 / (Body) 1.2 |
Material (Circuit Board) |
wooden |
Dimension L (mm) |
497 |
RoHS Directive |
Correspondence |

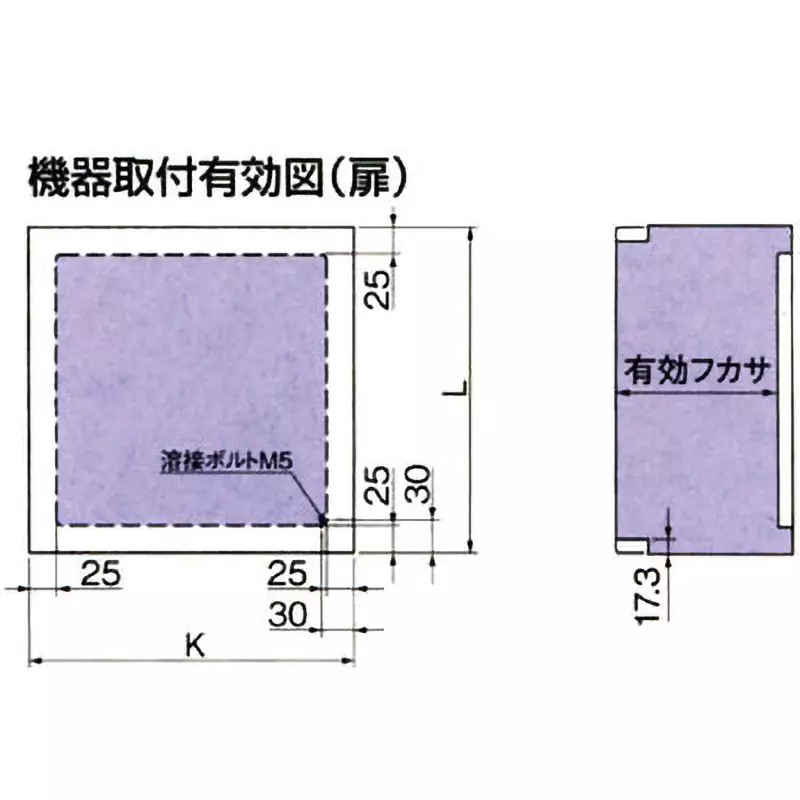

Circuit Board Dimensions, Length x Width (mm) |
450x250 |

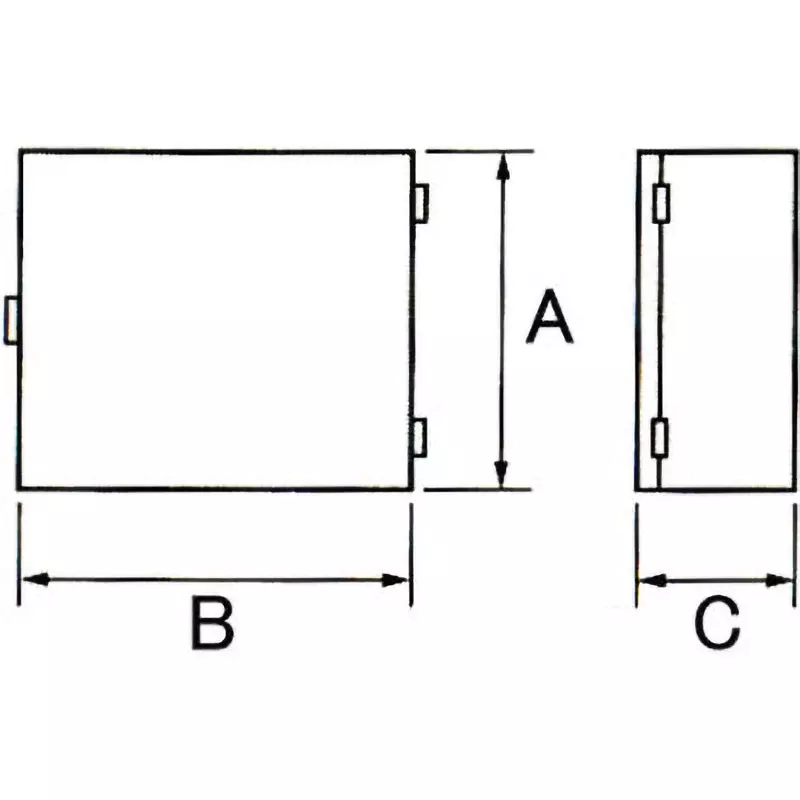

Dimensions, Length L x Width W x Depth D (mm) |
500x300x200 |
Door Opening / Closing Pattern |
One-sided |
Installation Location |
Indoor |
Dimension K |
298 mm |
Painting |
Powder coating |
Box Material |
Iron |
