| Model No | MS-272B |
| Protection Class | IP44 |

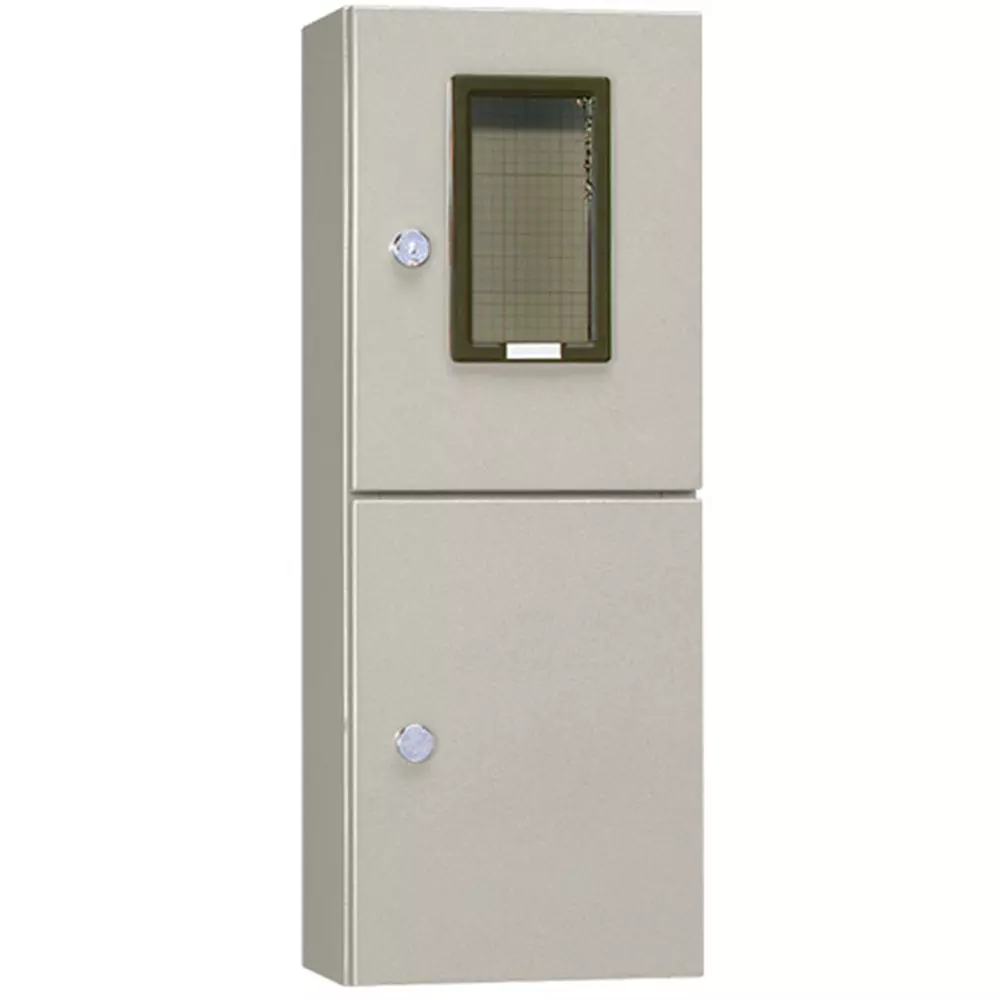

| Type of Product | MS-B Intake Instrument Panel Cabinet |
| Country of Origin | Japan |
Model No |
MS-272B |
Protection Class |
IP44 |
Type of Product |
MS-B Intake Instrument Panel Cabinet |
Country of Origin |
Japan |
Material |
Iron |
Door Type |
Two-stage door |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44656692 |
Import Country |
Direct Import from Japan |
Space |
For all electric power service areas (Excluding Tokyo Electric Power Company, Chubu Electric Power Company, and other areas where reinforced weatherproof power meters are used) [WHM single (3) phase 3-wire system 120A]x2 with space [ELB 3P 200A]x3 Tokyo Electric Power service area For Chubu Electric Power pipes, for other areas where the reinforced weatherproof type watt hour meter is used [WHM single (3) phase 3-wire system 120A]x2 With space [ELB 3P 200A]x3 |
Paint Color |
Light beige (5Y7 / 1) |
Mass (Kg) |
48 |
Handle |
Upper door key handle with seal (H-26N) Lower door key handle (H-24N) Handle (H-28) |
External Dimensions (width x depth x height) (mm) |
700x1400x200 |
RoHS Directive |
Correspondence |
Thickness (mm) |
Door, body: 1.6 |
Installation Location |
Indoor and outdoor use |
Mounting Board |
Wooden board (instrument part 25 mm, switch part 15 mm) |
